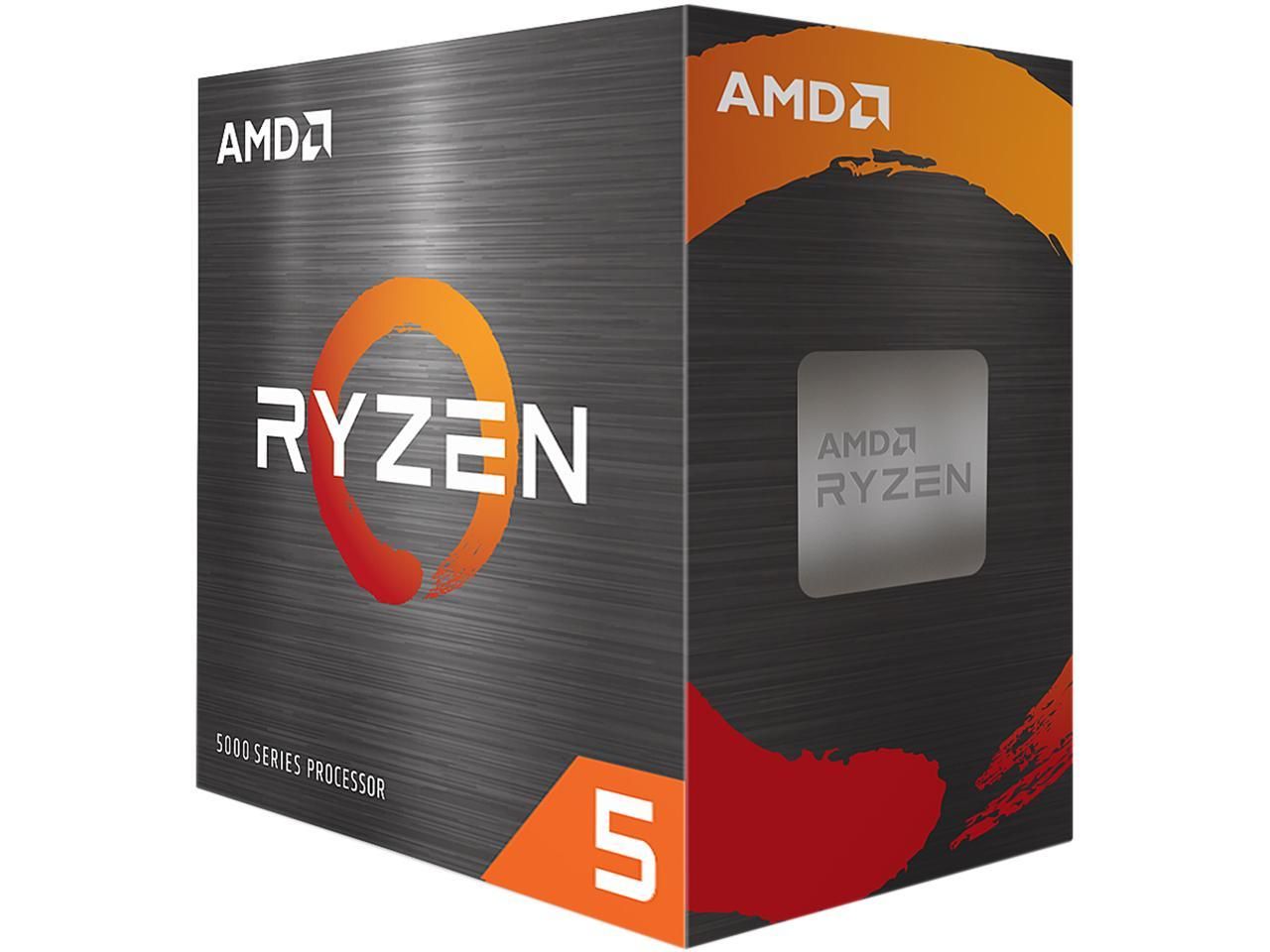

AMD RYZEN 5 5600X

AMD RYZEN 5 5600X

The AMD Ryzen 5 5600X from the Vermeer processor family has 6 CPU cores based on the “Zen 3” architecture . After “Zen”, “Zen+” and “Zen 2”, this is the fourth generation of the Zen microarchitecture. Compared to the previous generation, each processor core now has access to the entire L3 cache. As a result, the performance in games could be increased significantly. In addition, the Ryzen 5000 processors offer significantly increased per-clock performance. Paired with an AMD X570 or B550 chipset, the AMD Ryzen 5 5600X supports PCI Express 4.0,

which is twice as fast as PCIe 3.0-Default. All Ryzen 5000 processors use the proven AM4 platform and were developed for use with corresponding AMD chipsets. An update to the BIOS version AGESA 1.0.8.0 or newer is required .

• 6 “Zen 3” cores with only 65 watts of thermal design power (TDP)
• 12 threads thanks to Simultaneous Multithreading (SMT)
• Very high single and multi-thread performance
• Base clock of 3.7 GHz & 4.6 GHz Turbo with Precision Boost 2
• Extremely fast PCI Express 4.0 interface (only with AMD X570 or B550)
• Auto-Overclocking Precision Boost Overdrive (only with AMD X570 or B550)
• Free multiplier for manual overclocking (unlocked CPU)
• Large cache memory: 3MB L2 & 32MB L3
• High-efficiency, non-planar, 7-nanometer FinFET transistors
• AVX2 instruction set extension for complex vector calculations
• Two AES units for fast, reliable data encryption
• Compatible with AMD AM4 processor socket
• Natively supports DDR4 RAM with 3200 MHz (dual channel)

Technical details:

• Type:
  AMD Ryzen 5 5600X
  Zen 3 / Vermeer
  Manufacturing: 7 nm FinFET (CPU), 12 nm LP (I/O chiplet)
• CPU cores: 6 / 12 (physical / virtual)
• CPU clock:
  Base clock: 3.7 GHz
  Boost clock: max. 4.6 GHz (Precision Boost 2)
  Precision Boost Overdrive: +200 MHz Auto-OC (only with AMD X570 or B550 chipset)
• Level 2 cache: 3 MB (6x 512 kB)
• Level 3 cache: 32 MB (1x 32 MB)
• Chipset interface: PCI-Express 4.0 (only with AMD X570 or B550 chipset)
• Integrated PCI Express lanes: x24 (x16 for GPU + x4 for SSD + x4 for chipset)
• RAM:
  memory controller: internal
  memory channels: 2
  memory standard: DDR4 (ECC & non-ECC)
  native memory clock: 3,200 MHz (without OC)
• TDP: 65 watts
• Socket Compatibility: AM4
• Features & command set extensions:
  PCI-Express 4.0 (only with AMD X570 or B550 chipset)
  Precision Boost 2 (Precision Boost Overdrive with AMD X570 or B550)
  SMT (Simultaneous Multithreading)
  X86-64 (64-bit processor AMD64)
  AMD- V (Compute Virtualization)
  VT-Vi (I/O MMU Virtualization)
  2x AES Units (Encryption)
  AVX & AVX2 (Advanced Vector Extensions)
  NX-Bit (Antivirus) & EVP (Advanced Antivirus)
  Turbo Core 3.0
