ASROCK A520M-HVS AM4

Gjendja:

Ka stok
Lista Dëshirave
Krahëso

ASROCK A520M-HVS AM4

  • AMD AM4 socket for AMD Ryzen 3000/4000processor
  • 2 Dual-Channel DDR4 4733+ MHz (OC) memory slots
  • 4 SATA 6Gb/s ports + 1x M.2 PCIe 3.0 x4 / SATA 6 Gb/s
  • 1x PCI-Express 3.0 16x slot
  • Micro-ATX format

7,000 L 9,000 L

Ka stok

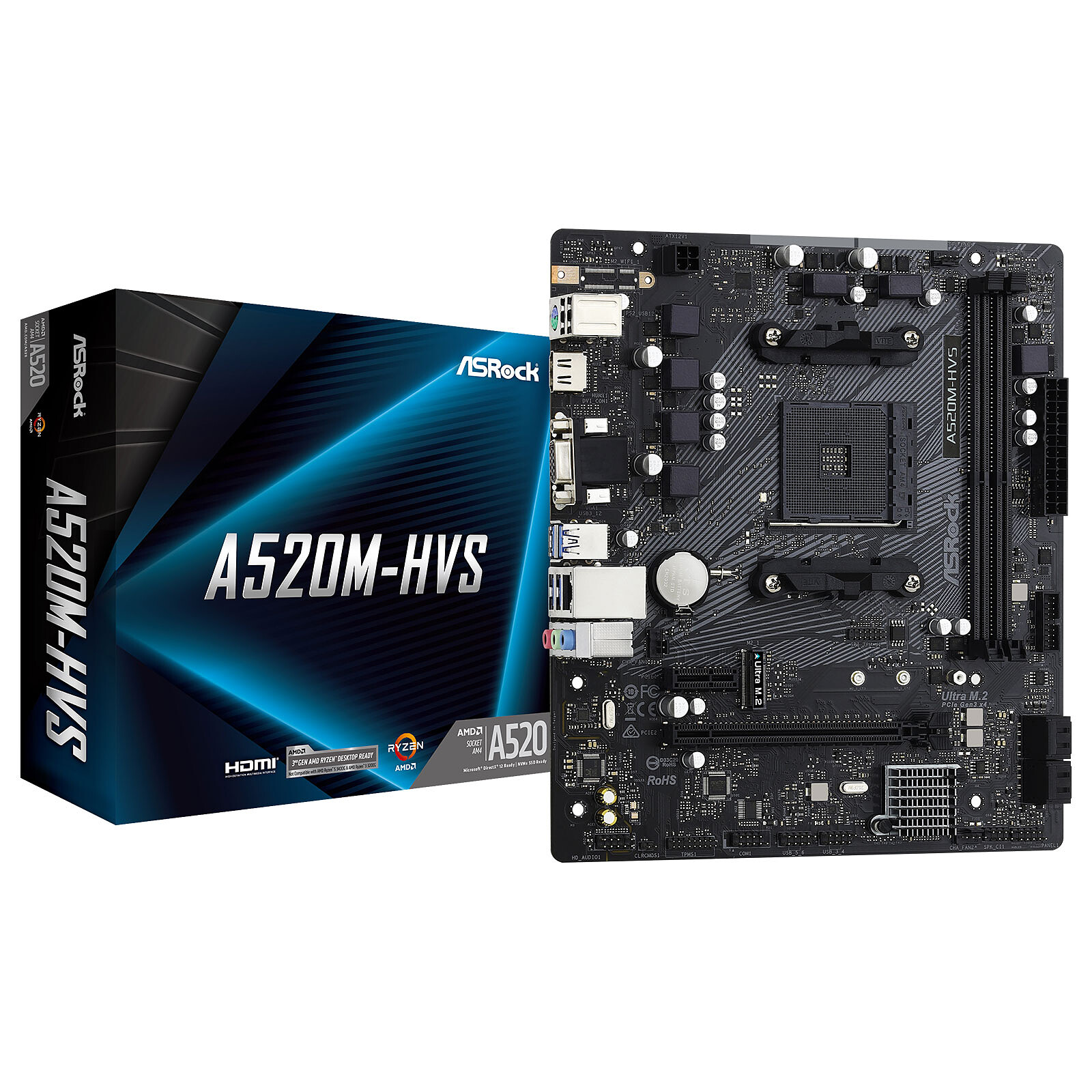

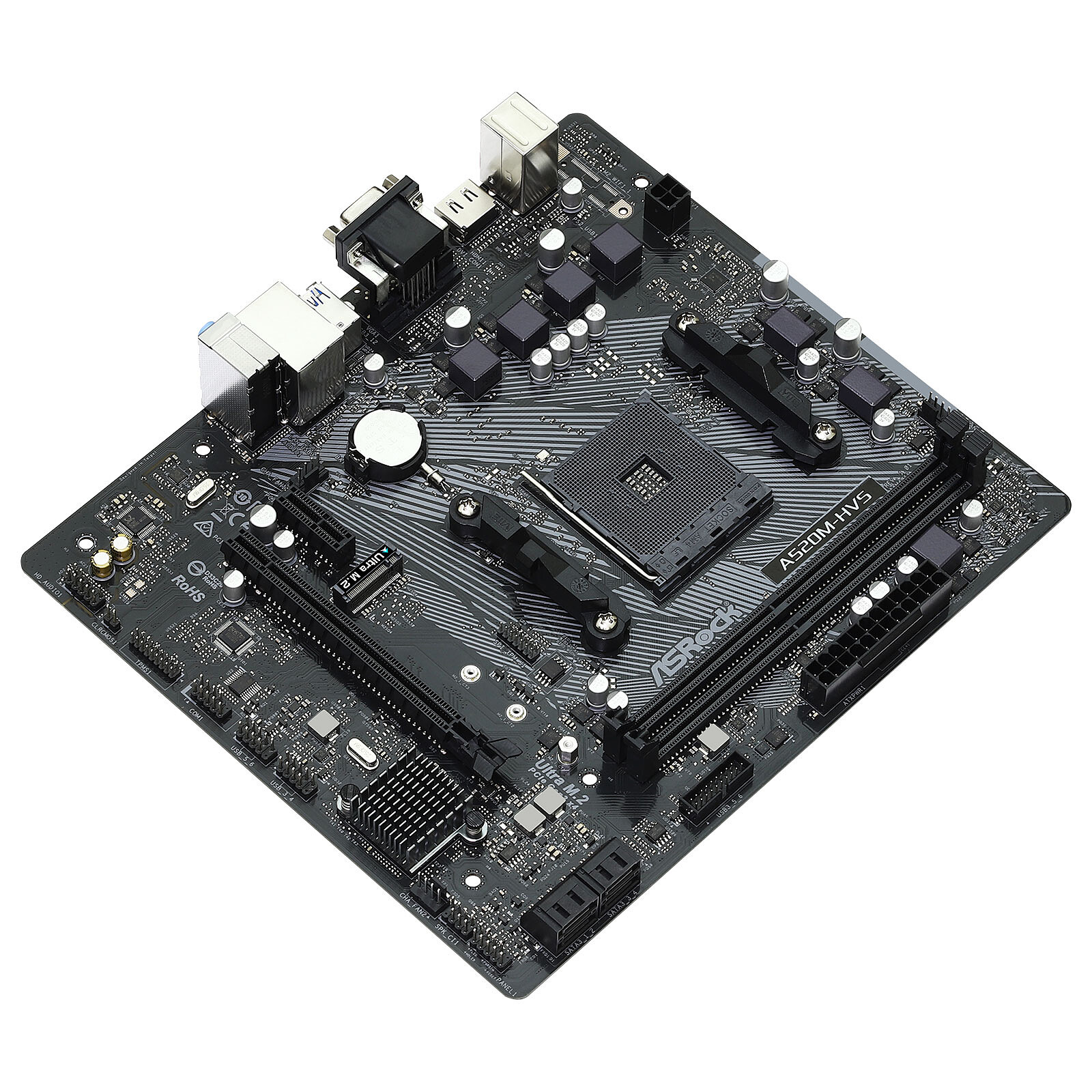

ASROCK A520M-HVS AM4

ASRock A520M-HVS: designed for the future!

Based on the AMD A520 chipset, the ASRock A520M-HVSmotherboard is designed to host AMD Ryzen processors on socket AM4 from Zen 2 generation onwards.It will allow the assembly of a high-performance multimedia or office configuration while keeping a reduced size.Thanks to the support of PCI-Express 3.0 16x graphics cards, SATA 6Gb/s and M.2 disks, DDR4 RAM and USB 3.0,this motherboard has everything you need to put together a well-balanced PC at a reasonable cost.

ASROCK A520M-HVS MOTHERBOARD ADVANTAGES

  • AMD AM4 socket for AMD Ryzen 3000/4000processor
  • 2 Dual-Channel DDR4 4733+ MHz (OC) memory slots
  • 4 SATA 6Gb/s ports + 1x M.2 PCIe 3.0 x4 / SATA 6 Gb/s
  • 1x PCI-Express 3.0 16x slot
  • Micro-ATX format

AMD RYZEN 3000

The AMD Ryzen 3000 processors are among the first 7nm PC processors to support the PCIe 4.0 interface.

The third generation Ryzen, codenamed Matisse, impresses with its many cores and threads and very high base frequencies ! AMD’s Ryzen 3000 offers a (re)discovery of high-end performance for gaming, content creation and intensive multitasking.

They allow you to do EVERYTHING even faster and more fluidly.

  • Unique Feature
    ASRock Super Alloy
    – Premium 50A Power Choke
    – Sapphire Black PCB
    – High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
    – 6 Power Phase design

    *Please refer to CPU support list for details.
  • Chipset
    – AMD A520
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 2 x DDR4 DIMM Slots
    – AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – Max. capacity of system memory: 64GB**
    – Supports Extreme Memory Profile (XMP) memory modules
    – 15μ Gold Contact in DIMM Slots

    *For Ryzen Series APUs (Cezanne and Renoir), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support. For more details.Ryzen Series CPUs (Vermeer):
    Ryzen Series CPUs (Matisse):
    Ryzen Series APUs (Cezanne):

    Ryzen Series CPUs:

    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 128Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
  • Graphics
    – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    – DirectX 12, Pixel Shader 5.0
    – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    – Dual graphics output: support D-Sub and HDMI ports by independent display controllers
    – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    – Supports HDR (High Dynamic Range) with HDMI 2.1
    – Supports HDCP 2.3 with HDMI 2.1 Port
    – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    – Supports Microsoft PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.

  • Audio
    – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
    – Supports Surge Protection
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111H
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    – 1 x PCI Express 3.0 x1 Slot

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    Chipset:
    – 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
    NVMe SSD is not supported with AMD Athlon™ 3000G Processors
    Supports ASRock U.2 Kit
  • RAID
    – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Connector
    – 1 x SPI TPM Header
    – 1 x COM Port Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 4 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
    CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x D-Sub Port
    – 1 x HDMI Port
    – 2 x USB 2.0 Ports (Supports ESD Protection)
    – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock XFast LAN
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version)
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Hardware Monitor
    – Temperature Sensing: CPU, Chassis
    – Fan Tachometer: CPU, Chassis Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
    – Fan Multi-Speed Control: CPU, Chassis Fans
    – CASE OPEN detection
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    – Solid Capacitor design
  • OS
    – Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
