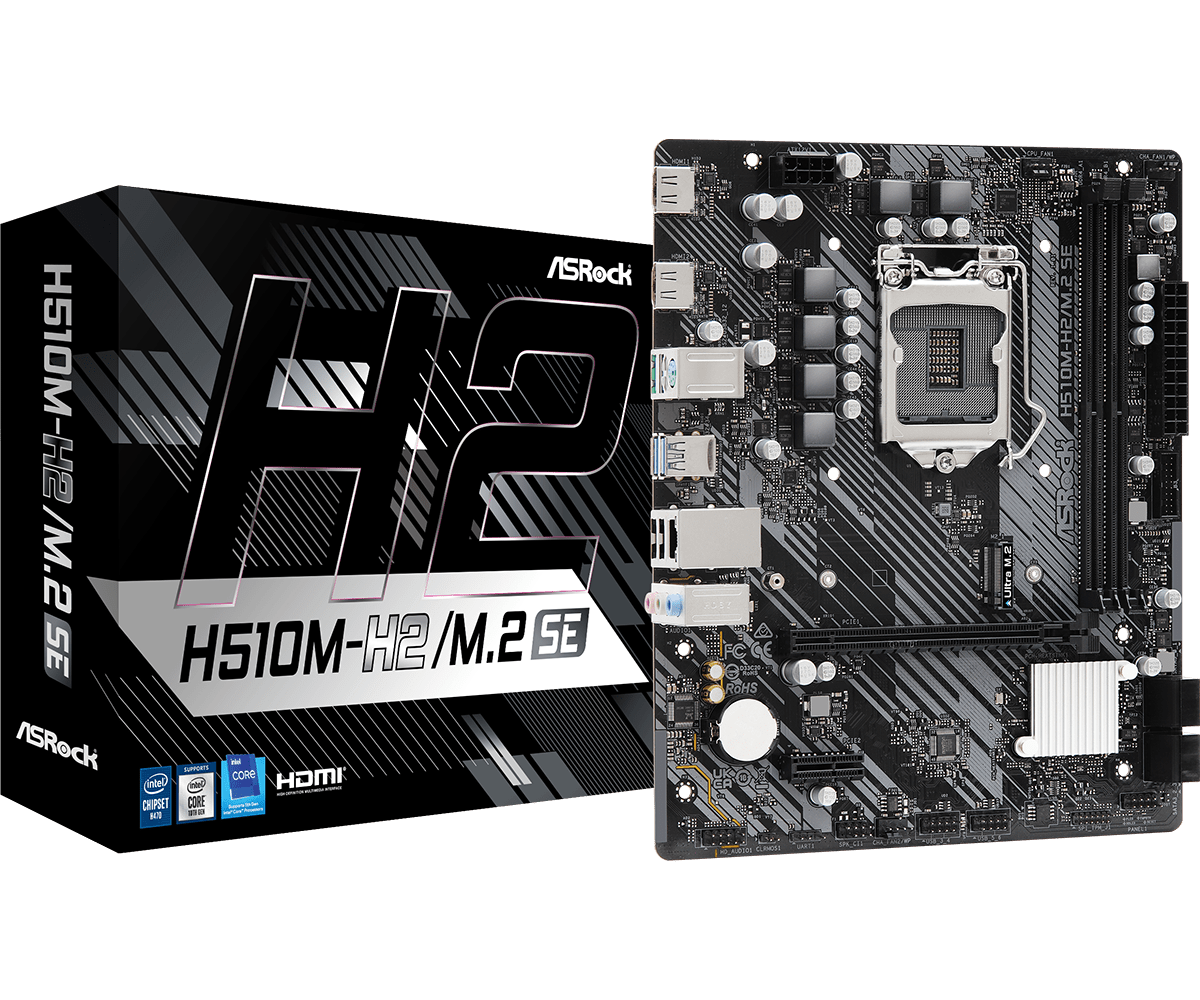

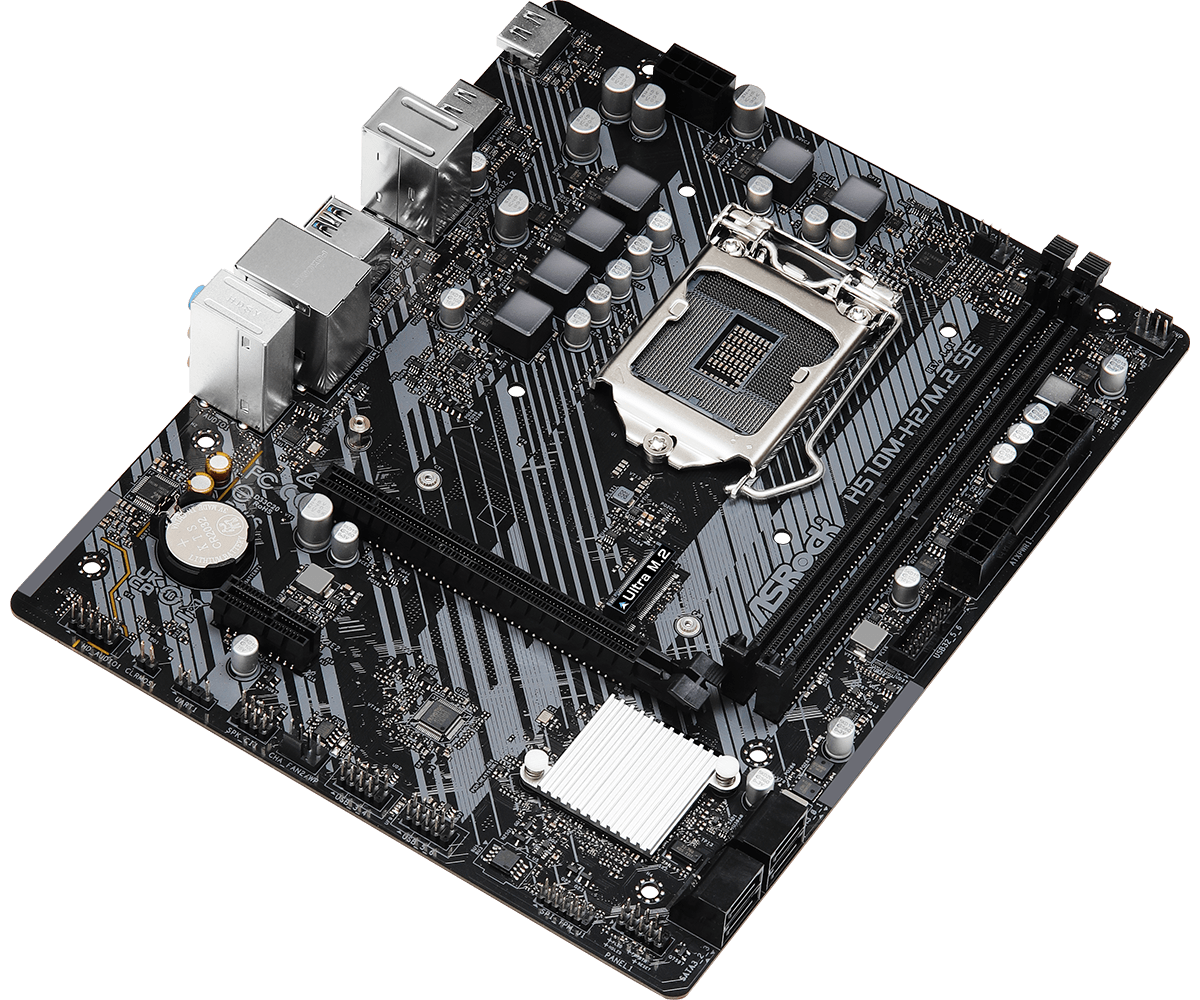

ASROCK H510M-H2/M.2 SE

ASROCK H510M-H2/M.2 SE

• Supports 10^th Gen & 11^th Gen Intel^® Core™ Processors (LGA1200)
• 4 Power Phase Design
• Supports DDR4 3200 MHz*
• Intel^® H470 Chipset
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 6 USB 3.2 Gen1 (4 Rear, 2 Front),
  6 USB 2.0 (2 Rear, 4 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer
  * Actual support may vary by CPU.

• Rock-Solid Durability
  – 4 Power Phase
  EZ Update
  – ASRock Auto Driver Installer
• CPU
  – Supports 10^th Gen & 11^th Gen Intel^® Core™ Processors (LGA1200)
  – Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  – Intel^® H470
• Memory
  – Dual Channel DDR4 Memory Technology
  – 2 x DDR4 DIMM Slots
  – Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  – Supports ECC UDIMM memory modules (operate in non-ECC mode)
  – Max. capacity of system memory: 64GB**
  – Supports Intel^® Extreme Memory Profile (XMP) 2.0
  – 15μ Gold Contact in DIMM Slots

  * 11^th Gen Intel^® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium^® and Celeron^® support DDR4 2666 natively.
  10^th Gen Intel^® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 2666 natively.
  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  – 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  – 2 x HDMI
  Intel^® 11^th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
  Intel^® 10^th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz

  * Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  Graphics specifications may vary between CPU types.
• Audio
  – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  – Gigabit LAN 10/100/1000 Mb/s
  – Realtek 8111H
• Slots
  Intel^® 11^th Gen & 10^th Gen Processors:
  – 1 x PCIe 4.0 x16 Slot (PCIE1)*
  Intel^® H470 Chipset:
  – 1 x PCIe 3.0 x1 Slot (PCIE2)**

  * Intel^® 11^th Gen Processors support PCIe 4.0 x16
  Intel^® 10^th Gen Processors support PCIe 3.0 x16
  ** Supports NVMe SSD as boot disks
• Storage
  Chipset:
  – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  – 4 x SATA3 6.0 Gb/s Connectors

  * Supports Intel^® Optane™ Technology
  Supports NVMe SSD as boot disks
• RAID
  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
  – 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
  – 6 x USB 2.0 (2 Rear, 4 Front)

  * All USB ports support ESD Protection
• Connector
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

  *CPU_FAN1 supports the fan power up to 1A (12W).
  ** CHA_FAN1~2/WP support the fan power up to 2A (24W).
  CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  – 1 x PS/2 Mouse/Keyboard Port
  – 2 x HDMI Ports
  – 2 x USB 2.0 Ports
  – 4 x USB 3.2 Gen1 Ports
  – 1 x RJ-45 LAN Port
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Motherboard Utility (A-Tuning)
  – ASRock XFast LAN
  UEFI
  – ASRock EZ Mode
  – ASRock Full HD UEFI
  – ASRock My Favorites in UEFI
  – ASRock Auto Driver Installer
  – ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  – 1 x User Manual
  – 1 x I/O Shield
  – 2 x SATA Data Cables
  – 1 x Screw for M.2 Socket
• Form Factor
  – Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm
• OS
  – Microsoft Windows^® 10 64-bit / 11 64-bit
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
