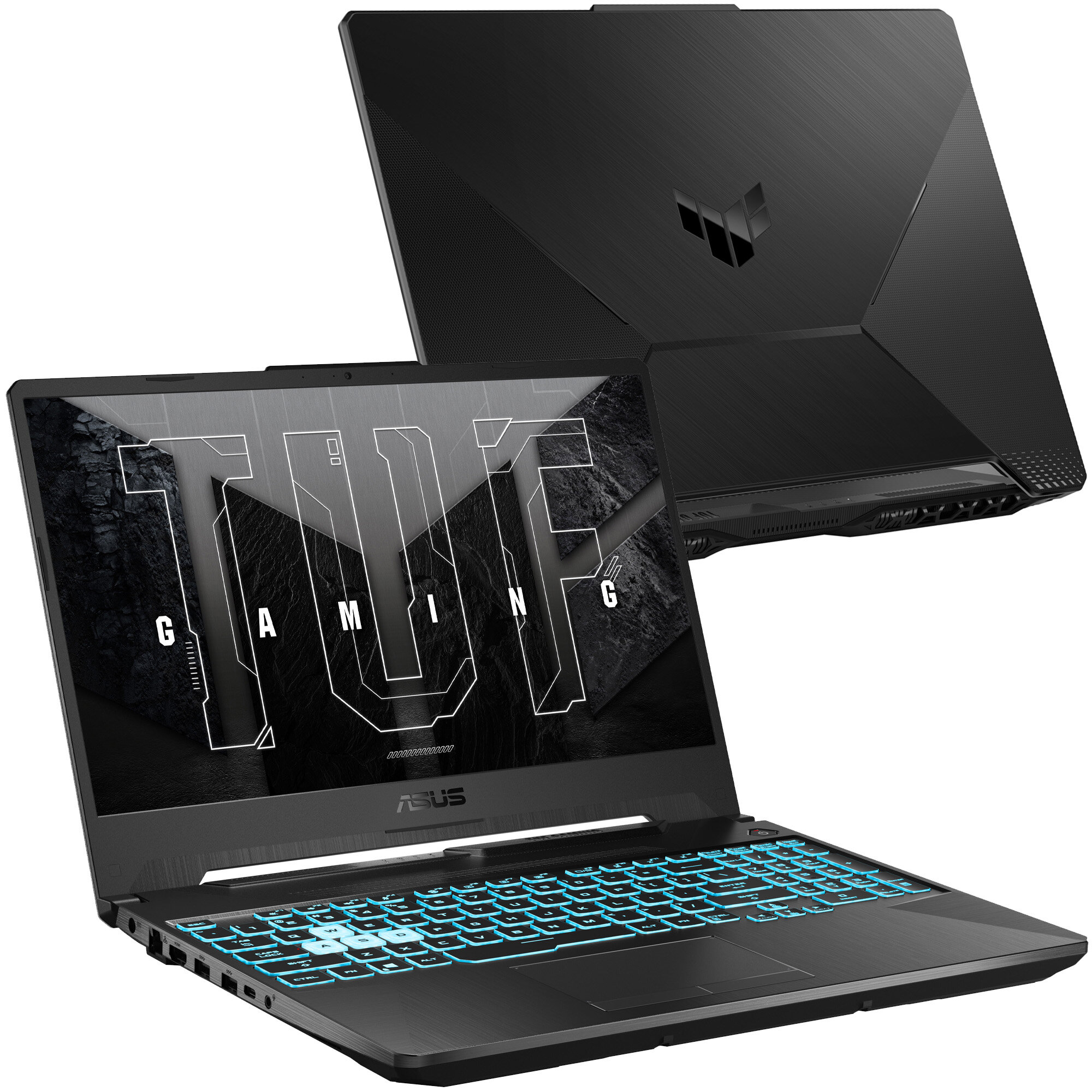

ASUS TUF Gaming A15 FA506NC

ASUS TUF Gaming A15 FA506NC

Processor

• Processor model: 7535HS
• Processor threads: 12
• Processor family: AMD Ryzen™ 5
• Processor boost frequency: 4.55 GHz
• Processor cores: 6
• Processor manufacturer: AMD
• Processor cache: 19 MB
• Processor frequency: 3.3 GHz
• Processor generation: AMD Ryzen 7000 Series



Graphics

• On-board graphics card model: AMD Radeon Graphics
• Discrete graphics card: Yes
• On-board graphics card: Yes
• Discrete graphics card memory: 4 GB
• Discrete graphics memory type: GDDR6
• Discrete graphics card model: NVIDIA GeForce RTX 3050
• On-board GPU manufacturer: AMD
• Discrete GPU manufacturer: NVIDIA



Memory

• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Internal memory: 16 GB
• Memory slots: 2x SO-DIMM
• Memory clock speed: 4800 MHz



Design

• Product colour: Black
• Product type: Laptop
• Colour name: Graphite Black



Power

• AC adapter input voltage: 100 – 240 V
• DC-in jack: Yes
• AC adapter frequency: 50 – 60 Hz
• Power: 180 W
• DC output voltage: 20 V



Security

• Trusted Platform Module (TPM): Yes
• Cable lock slot: Yes
• Password protection: Yes



Weight & dimensions

• Weight: 2.3 kg
• Depth: 256 mm
• Width: 359 mm
• Height (front): 2.28 cm
• Height (rear): 2.45 cm



Network

• Antenna type: 2×2
• Bluetooth: Yes
• Ethernet LAN data rates: 1000 Mbit/s, 10, 100
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Bluetooth version: 5.3
• Ethernet LAN: Yes



Performance

• Repairability index: 8.6



Display

• Display diagonal: 39.6 cm (15.6″)
• HD type: Full HD
• Native aspect ratio: 16:9
• Display resolution: 1920 x 1080 pixels
• Touchscreen: No
• Panel type: IPS
• Display brightness: 250 cd/m²
• Contrast ratio: 1000:1
• Colour gamut: 62.5%
• RGB colour space: sRGB
• Maximum refresh rate: 144 Hz



Software

• Operating system installed: No



Audio

• Audio system: DTS Audio Processing
• Built-in microphone: Yes
• Number of built-in speakers: 2



Storage

• Storage media: SSD
• Optical drive type: No
• Total storage capacity: 512 GB
• Number of SSDs installed: 1
• Total SSDs capacity: 512 GB
• SSD capacity: 512 GB
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Number of M.2 (M & B) slots: 2
• NVMe: Yes



Ports & interfaces

• Combo headphone/mic port: Yes
• Ethernet LAN (RJ-45) ports: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• HDMI version: 2.1 TMDS
• HDMI ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• Number of 3.5 mm jack connectors: 1



Camera

• Front camera: Yes
• Front camera resolution: 1280 x 720 pixels
• Front camera HD type: HD



Battery

• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 48 Wh
• Number of battery cells: 3



Keyboard

• Keyboard backlit colour: RGB
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit zone: 1-zone RGB
