CASE COOLER MASTER

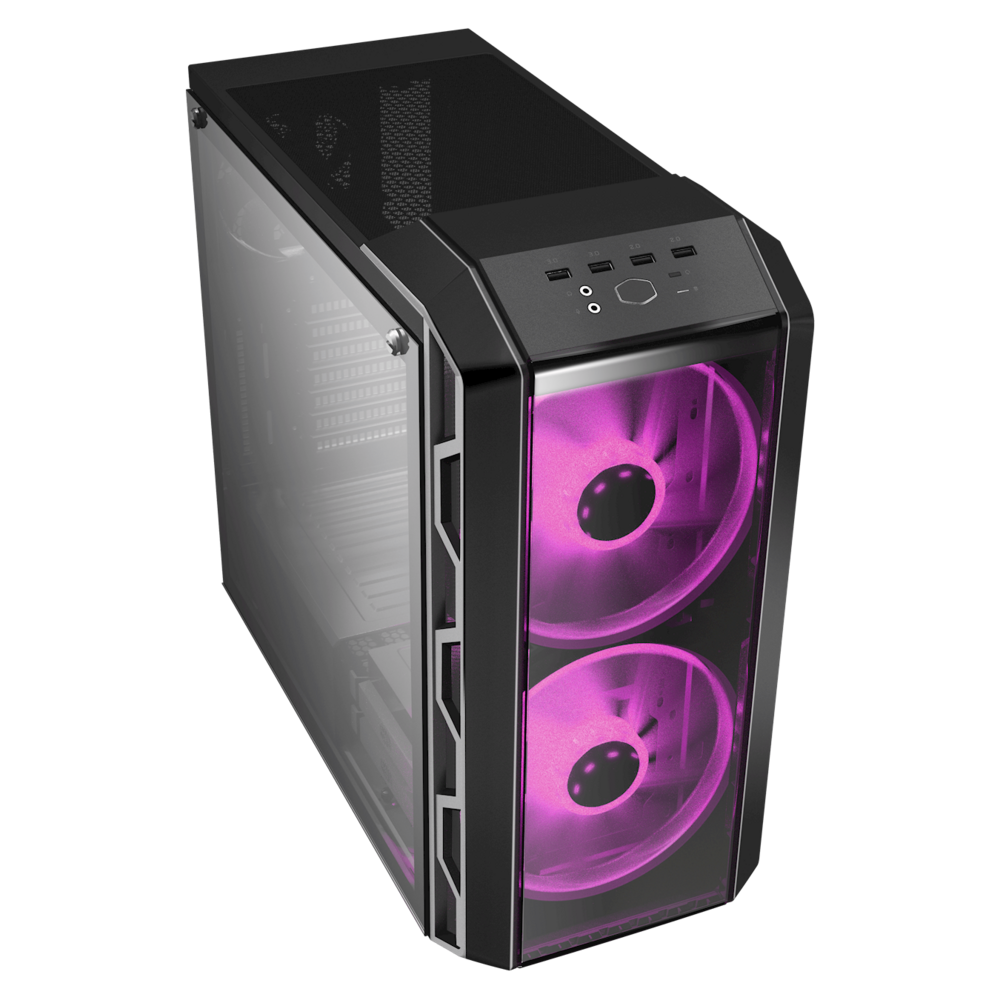

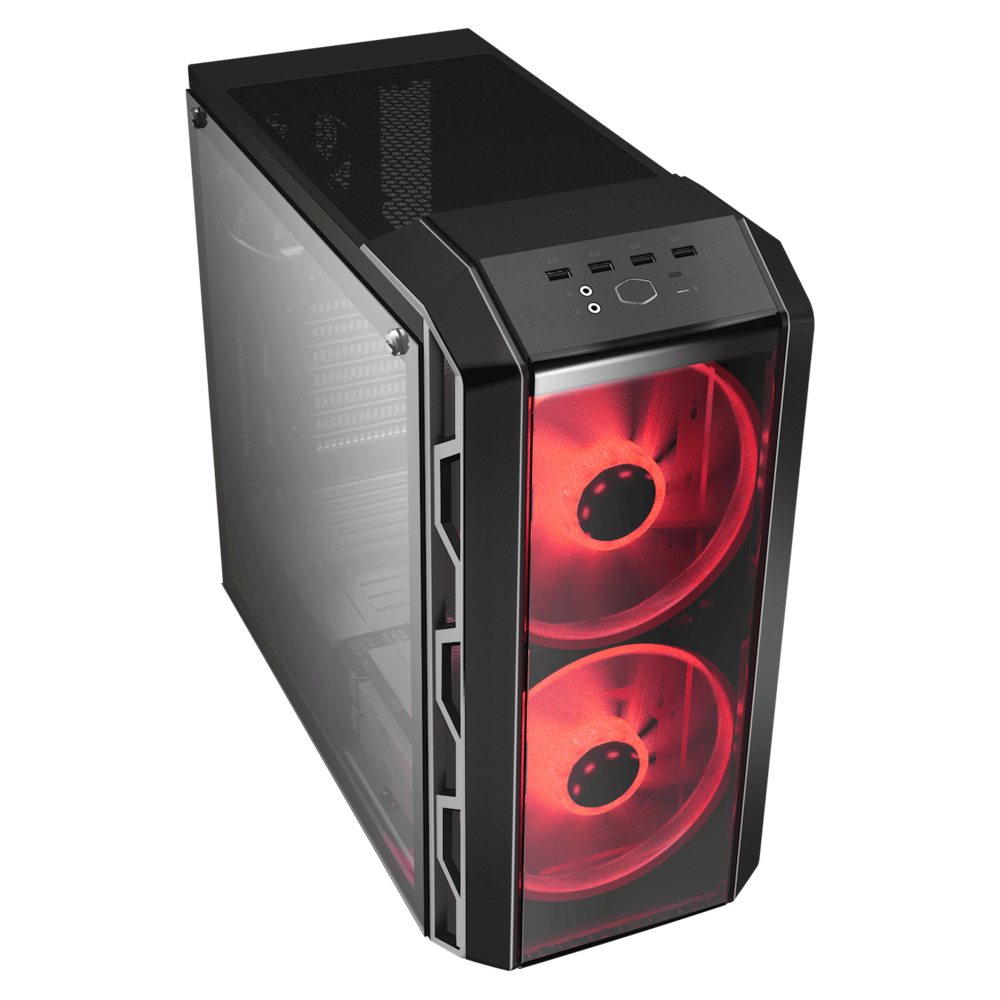

MESH AND TRANSPARENT OPTIONS INCLUDED
Choose between the mesh front panel for optimized airflow or the transparent panel for aesthetics with the included accessory.

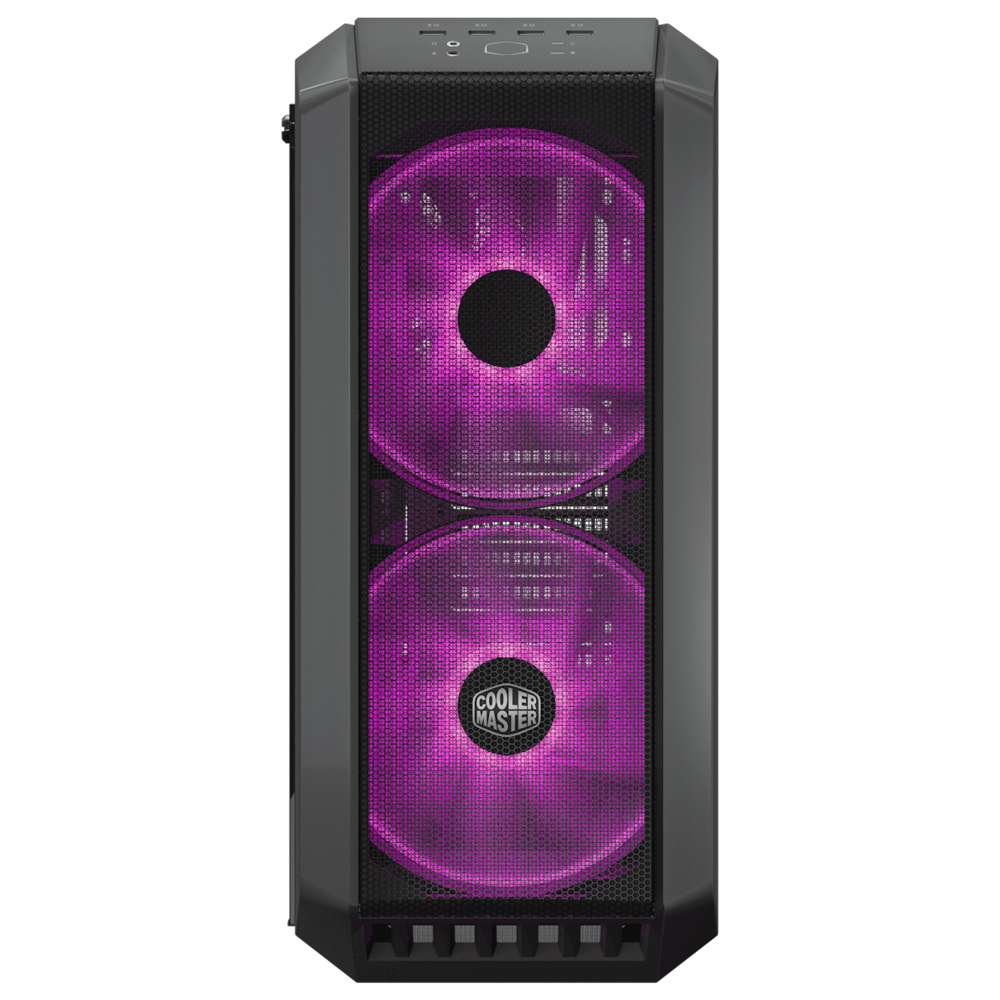

200MM RGB FANS WITH CONTROLLER
Managed by an included RGB Controller, two 200mm RGB fans come pre-installed with support for one optional 200mm fan on the top panel.

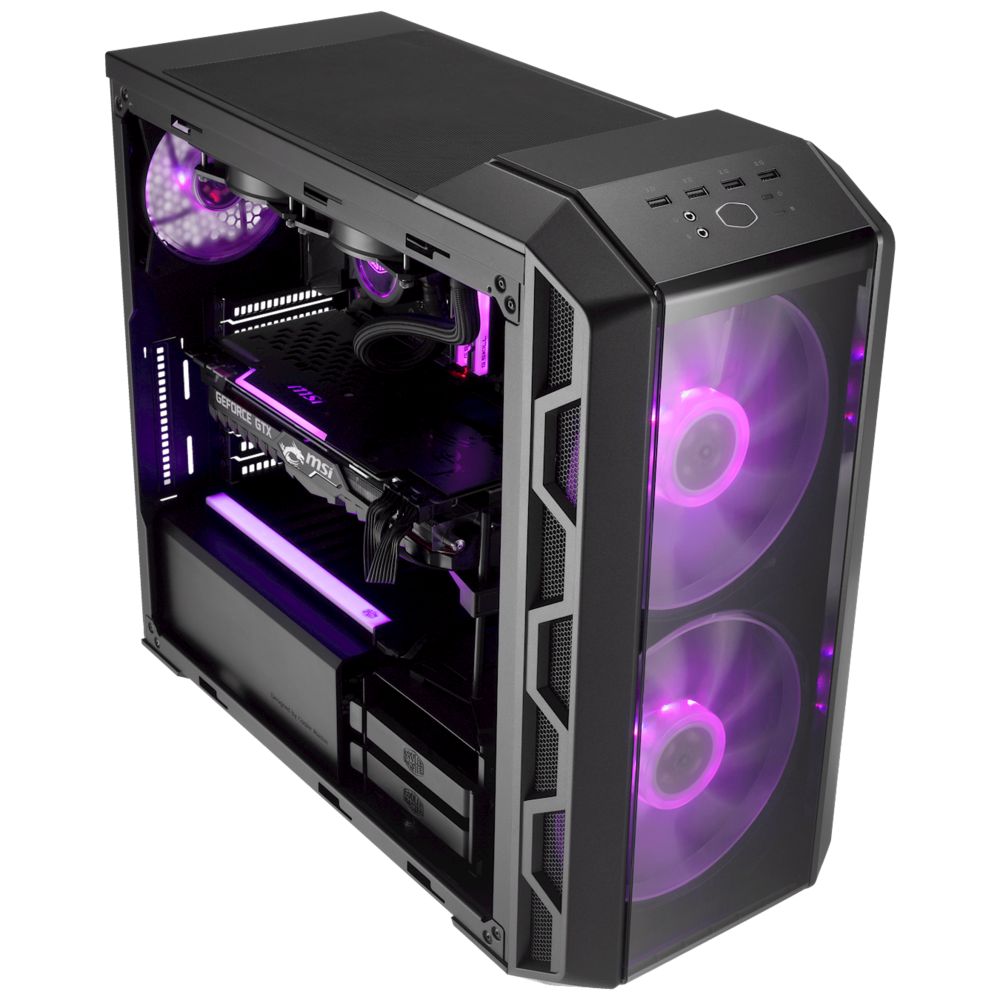

CLEAR VIEW INSIDE

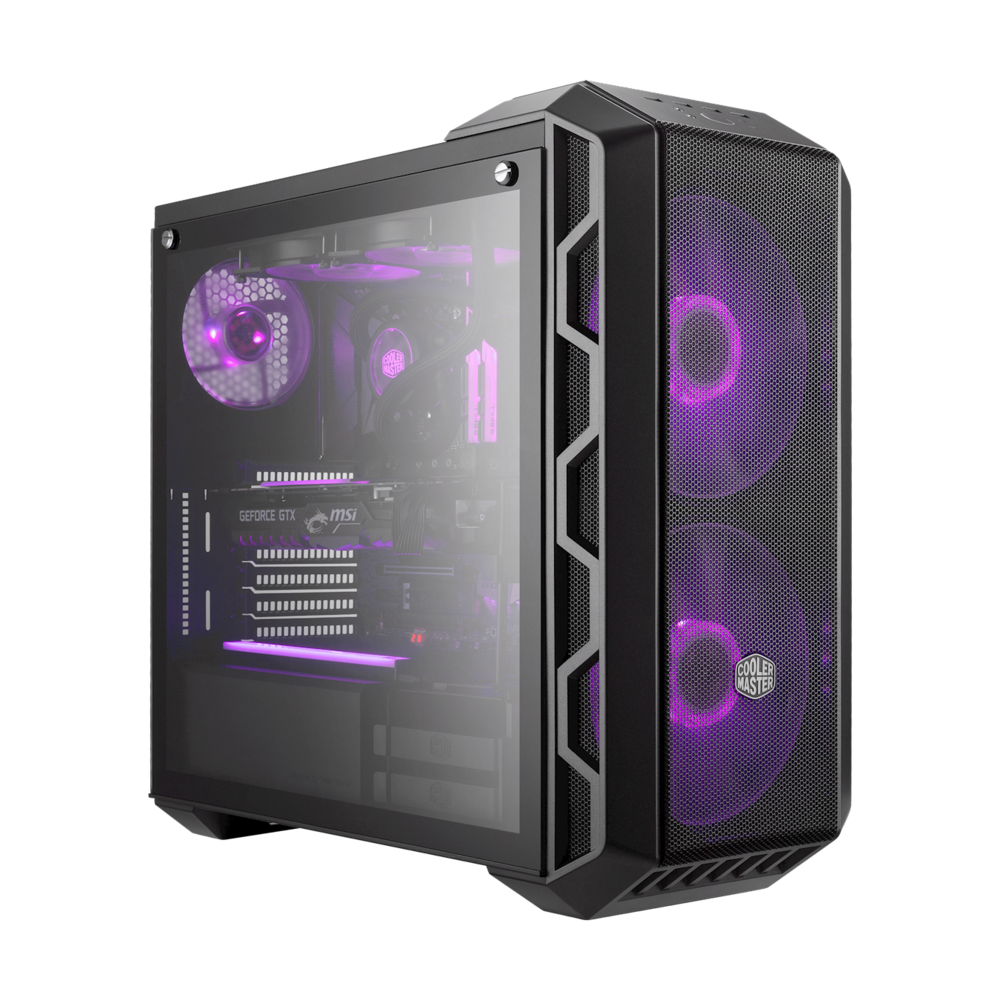

A light grey tinted tempered glass side panel is ideal for showcasing your build with (RGB) lighting
COVERS FOR CLEAN BUILDING
Display system builds neatly with a front cable cover1 and PSU cover2.
TOP MAGNETIC FILTER
Air passes through a flush magnetic filter on the top panel for added thermal support.
CASE HANDLE FOR TRANSPORT
The raised front panel covers a portion of the top panel to act as a handle for transport. It can support up to 20kg.
SPECIFICATION
Model Number MCM-H500-IGNN-S00
Color(s) Iron Grey
Materials – Body Steel
Materials Mesh, Plastic, Mesh (Front Panel), Acrylic & Plastic (Front Panel), Steel & Plastic (Top Panel), Tempered Glass (Left Side Panel), Steel (Right Side Panel)
Dimensions (L x W x H) 450 x 220 x 445mm (Excl. Panels), 525 x 228 x 502mm (Incl. Panels)
Motherboard Support ATX, Micro ATX, Mini ITX
Expansion Slots 7
5.25″ Drive Bays N/A
2.5″ / 3.5″ Drive Bays (Combo) 2
Drive Bays 2.5″ SSD 2
I/O Port – Power-LED Color White
I/O Port – HDD-LED Color White
I/O Port – USB-Ports 2x USB 2.0, 2x USB 3.0
I/O Port – Audio In/Out Yes (support HD audio)
I/O Port – Reset Switch Yes
RGB Control Onboard button on the RGB Controller or via the Reset Switch (1x 1-to-3 RGB Splitter Cable Included)
Pre-installed Fans – Front 2x 200mm RGB Fan
Pre-installed Fans – Rear 1x 120mm (Black)
Fan Support – Top 2x 120mm, 2x 140mm, 1x 200mm
Fan Support – Front 3x 120mm, 2x 140mm, 2x 200mm
Fan Support – Rear 1x 120mm
Radiator Support – Top 120mm, 140mm, 240mm
Radiator Support – Front 120mm, 140mm, 200mm, 240mm, 280mm, 360mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 167mm/6.5″
Clearance – PSU 180mm/7.1″
Clearance – GFX 410mm/16.1″
Cable Routing – Behind Motherboard Tray 30mm
Dust Filters Top, Front, Bottom
Power Supply Support Bottom Mount, ATX
EAN Code 4719512072172
UPC Code 884102044670
Series MasterCase Series
Size Mid Tower
