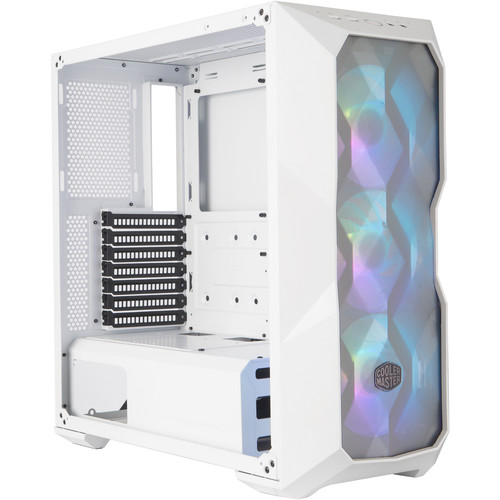

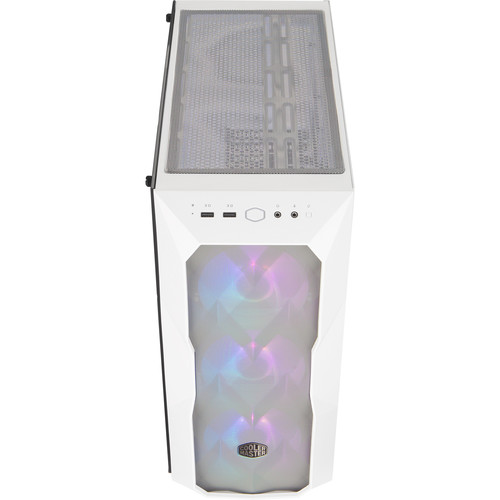

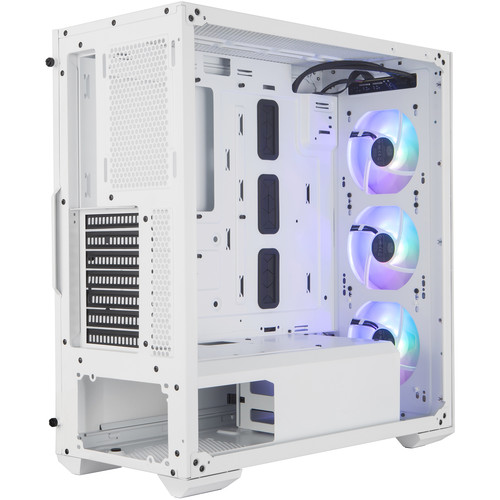

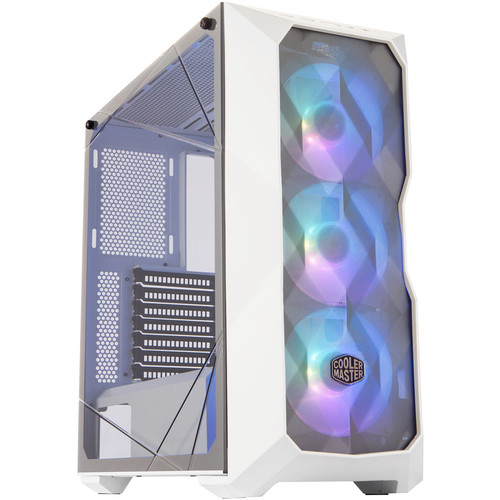

CASE COOLERMASTER MASTERBOX TD500 ARGB V2 WHITE
- Supports ATX, Micro-ATX, Mini-ITX & More
- Steel Frame & Windowed Side Panel
- 2 x 2.5/3.5″ Drive Bays
- 2 x 2.5″ Drive Bays
- 7 x Expansion Slots
- 2 x USB 3.2 Gen 1 | Audio In | Audio Out
- 3 x 120mm ARGB Fans Included
- ARGB Controller Included
- Support for Liquid Cooling Systems
- Supports GPUs up to 16.1″ Long
Cooler Master TD500 Specs
Compatibility
Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB |
External Drive Bays | None |
Internal Drive Bays | 2 x 3.5″ or 2 x 2.5″ |
Drive Mounting (Non-Bay) | Motherboard Tray: 2 x 2.5″ |
Expansion Slots | 7 x Full Height |
Maximum GPU Length | 16.14″ / 410 mm |
CPU Cooler Height | 6.5″ / 165 mm |
Supported PSU Size | ATX |
Maximum PSU Length | 7.09″ / 180 mm |
PSU Mounting Location | Bottom |
Cooling
Fan Mounting | Front: 3 x 120 mm or 2 x 140 mm Rear: 1 x 120 mm Top: 3 x 120 mm or 2 x 140 mm |
Fans Included | Front: 3 x 120 mm LED (Unspecified rpm) |
Maximum Radiator Size | Front: 360 mm Rear: 120 mm Top: 360 mm |
Fan Controller Included | Yes |
Filter Locations | Bottom, Front, Top |
I/O
I/O | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
Audio I/O | 1 x 3.5 mm Input 1 x 3.5 mm Output |
Display Outputs | None |
Physical
Windowed Panel | Yes |
Material | Plastic, Steel, Tempered Glass |
Certifications | CE, FCC *as per Manufacturer |
Built-In Lighting | No |
Tool-Less Design | Thumbscrews |
Security | None |
Cable Management Space | 0.75″ / 19 mm |
Dimensions (W x H x D) | 19.41 x 8.54 x 18.46″ / 493 x 217 x 469 mm |
Weight | 15.32 lb / 6.95 kg |
Packaging Info
Package Weight | 17.89 lb |
Box Dimensions (LxWxH) | 22.6 x 20.7 x 11.7″ |
