CASE FRACTAL DESIGN NOTH CHALK WHITE MESH
Key features
- Case with elegant oak and tempered glass details
- Designed for ATX / micro ATX / mini ITX motherboards
- Benefit from natural ventilation thanks to an open front, side panel and mesh top
- Choose a GPU up to 355 mm or up to 300 mm with a 360 mm front heatsink
- Two 140 mm Aspect PWM fans included (in front)
- Remove the side panels, unclip the front panel and remove the top panel using an integrated tab
- Make the most of your case with an intuitive interior layout

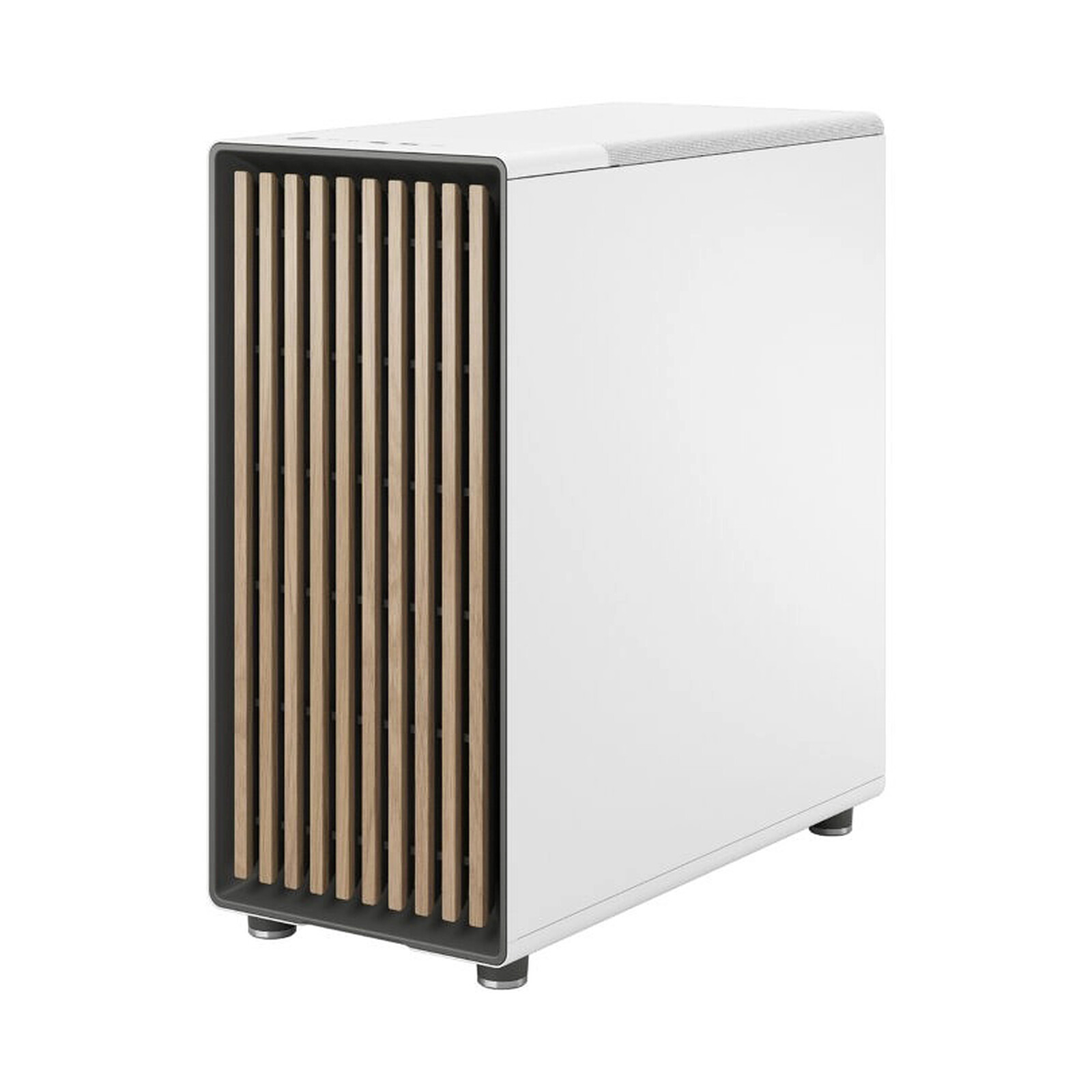

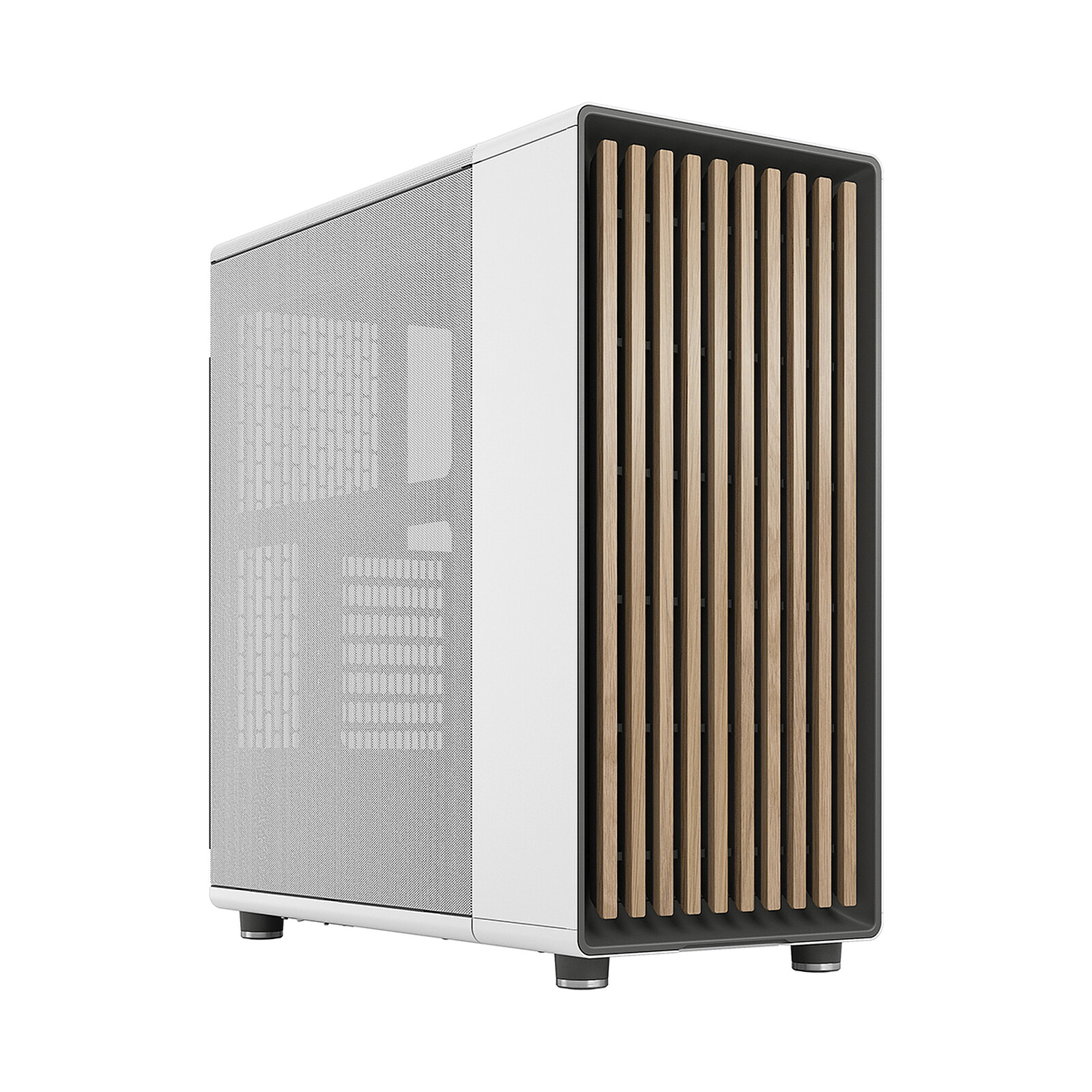

Enhance your gaming station with real wood slats on the front of the case, as well as a faux leather tab and steel hardware accents.
Get efficient cooling with two preinstalled 140mm fans or install radiators up to 240 and 360mm at the top and front of the case, respectively.
This case supports GPUs up to 13.9″ with front fans installed, or up to 11.8″ with a 360mm radiator installed. Additionally, seven bridgeless expansion slots allow for extensive customization.
Get easy access to internals by removing the side panels, unclipping the front, and popping off the top panel using an integrated tab.

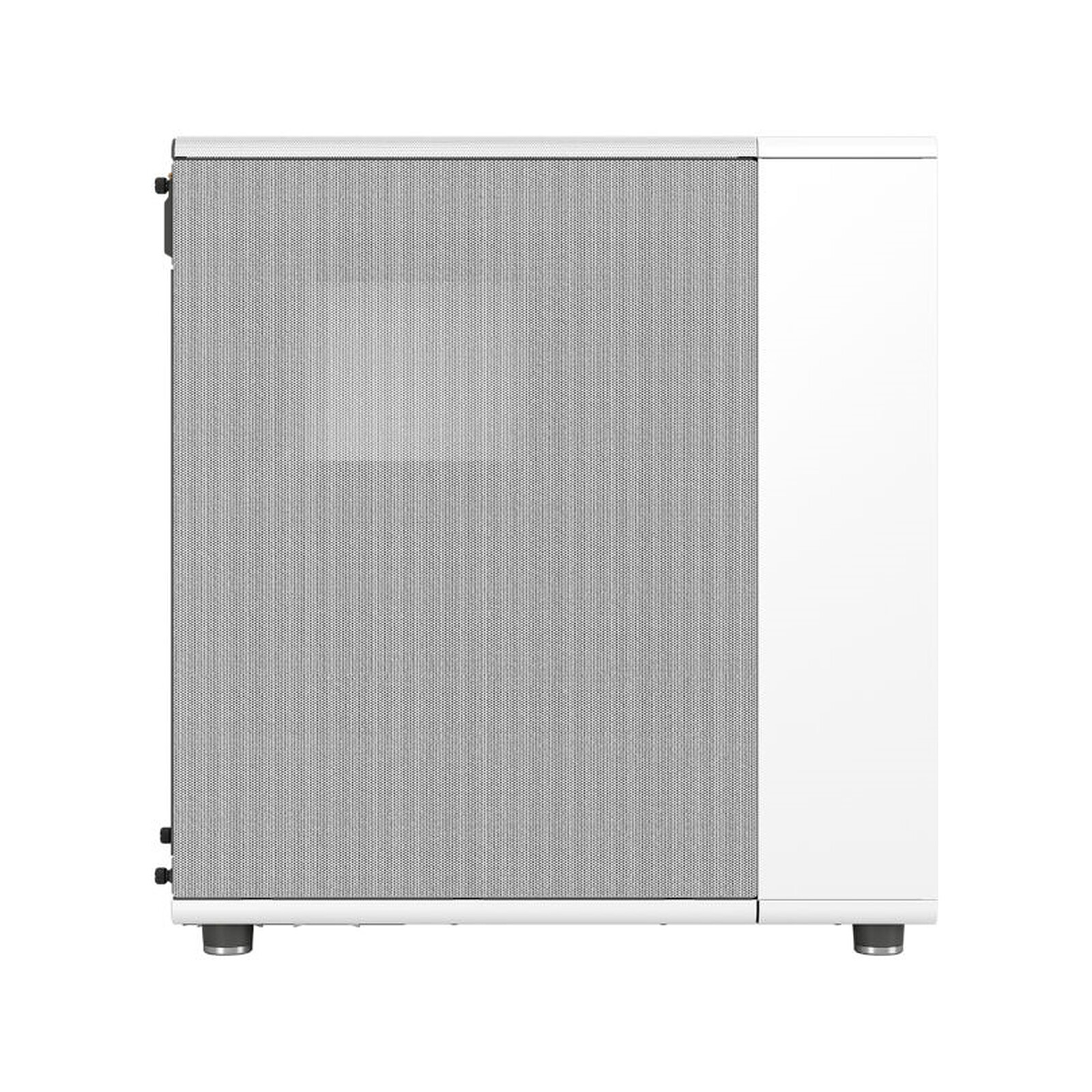

Up airflow and cooling potential via an open front and a mesh top and side panel.
- Use the two included 2.5/3.5″ drive bays to install two 2.5″ and two 3.5″ drives simultaneously
- Mounting points provide space for a third drive bay, available separately
- Two dedicated 2.5″ drive mounts behind the motherboard tray provide room for even more storage
Make the most of your building experience with an intuitive interior layout. Two 140mm fans come preinstalled and the case fits a total of six 140mm or eight 120mm fans using the included fan hub and bracket.
Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.2 Gen 2.
CASE FRACTAL DESIGN NOTH CHALK WHITE MESH
Motherboard Support |
ATX, Micro-ATX, Mini-ITX
|
Internal Drive Bays |
2x 2.5/3.5″
|
Drive Mounting (Non-Bay) |
Bottom
1x 2.5/3.5″ and
Motherboard Tray
2x 2.5
|
Expansion Slots |
7x Full Height
|
Maximum GPU Length |
14.0″ / 355 mm
|
CPU Cooler Height |
6.7″ / 170 mm
|
Fans Included |
Front:
2x 140 mm Non-LED (Variable rpm)
|
I/O |
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
|
Windowed Panel |
No
|
Built-In Lighting |
No
|
Compatibility
Motherboard Support |
ATX, Micro-ATX, Mini-ITX
|
External Drive Bays |
No
|
Internal Drive Bays |
2x 2.5/3.5″
|
Drive Mounting (Non-Bay) |
Bottom
1x 2.5/3.5″ and
Motherboard Tray
2x 2.5″
|
Expansion Slots |
7x Full Height
|
Maximum GPU Length |
14.0″ / 355 mm
|
CPU Cooler Height |
6.7″ / 170 mm
|
Supported PSU Size |
ATX
|
Maximum PSU Length |
10.0″ / 255 mm
|
PSU Mounting Location |
Bottom
|
Cooling
Fan Mounting |
Front
3x 120 mm
or
2x 140 mm
Rear
1x 120 mm
Side
2x 120/140 mm
Top
2x 120/140 mm
|
Fans Included |
Front:
2x 140 mm Non-LED (Variable rpm)
|
Maximum Radiator Size |
Front:
360 mm
Rear:
120 mm
Top:
240 mm
|
Fan Controller Included |
No
|
Filter Locations |
Bottom, Front
|
Inputs / Outputs
I/O |
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
|
Media/Memory Card Slot |
No
|
Audio I/O |
1x 3.5 mm Input
1x 3.5 mm Output
|
Display Outputs |
No
|
Physical
Windowed Panel |
No
|
Color |
Chalk White
|
Material |
Steel
|
Built-In Lighting |
No
|
Security |
No
|
Cable Management Space |
1.2″ / 30 mm
|
Dimensions (W x H x D) |
8.5 x 18.5 x 17.6″ / 215 x 469 x 447 mm
|
Weight |
16.8 lb / 7.6 kg
|
Packaging Info
Package Weight |
21.64 lb
|
Box Dimensions (LxWxH) |
22.1 x 21.6 x 13″
|
