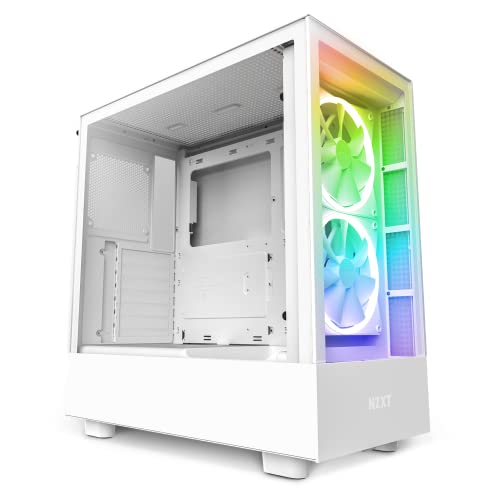

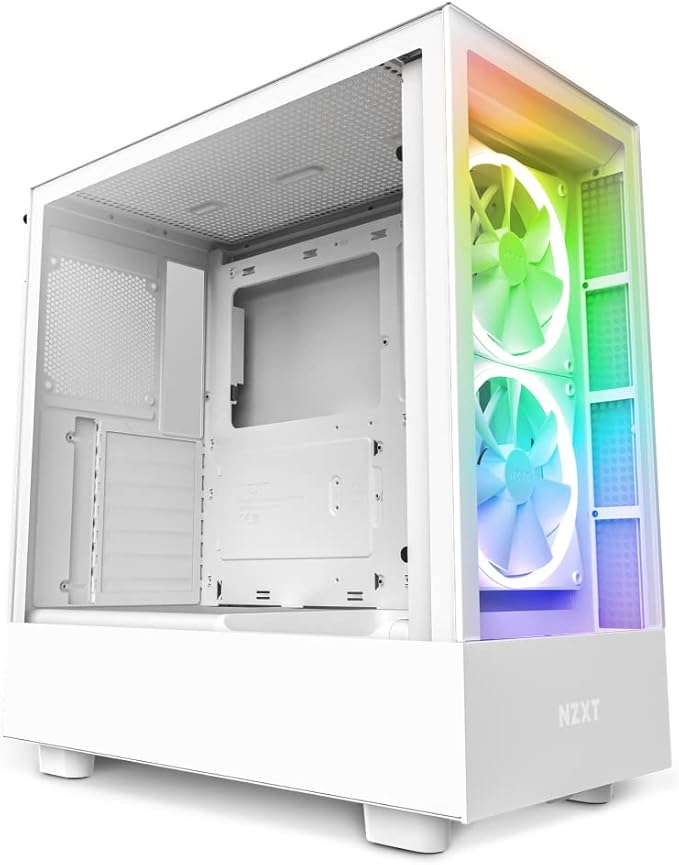

CASE NZXT H5 ELITE WHITE

  • Pre-installed fan on bottom inside panel is angled to cool GPU
  • Tempered glass front panel and built-in RGB controller
  • Perforated top panel provides optimal ventilation
  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool-less access to front & side panels
  • Front panel supports 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F140 RGB fans

16,000 L

Ka stok

CASE NZXT H5 ELITE WHITE

Overview

Details

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components.

With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.

  • Pre-installed fan on bottom inside panel is angled to cool GPU
  • Tempered glass front panel and built-in RGB controller
  • Perforated top panel provides optimal ventilation
  • Intuitive cable management system with wide channels, hooks, & straps
  • Tool-less access to front & side panels
  • Front panel supports 2 x 140mm fans or 280mm radiator
  • Top panel supports up to 2 x 120mm fans or 240mm radiator
  • Includes two pre-installed F140 RGB fans (Case Version) & one F120Q fan (Case Version)

Inside the Box

  • H5 Elite Case1

  • Front I/O split cables1

  • Brown box, PE bag, polyform, manual, accessory box & parts (including the screws)1

Fan Capacity

Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
  1. Top: 2x 120mm
  2. Front: 2x 140mm / 2x 120mm
  3. Rear: 1x 120mm
  4. Bottom: 1x 120mm

Radiator Capacity

The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.

Tech Specs

Key Specs

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX
  • Enclosure Type:Mid-Tower
  • Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

Dimensions

  • Height:464 mm (With Feet)
  • Width:227 mm
  • Depth:446 mm
  • Weight:8.1 kg

Compatibility & Clearance

  • Max CPU Cooler Clearance:Up to 165mm
  • Max GPU Clearance:Up to 365mm
  • Front Radiator Clearance:45mm
  • Cable Management:Up to 23mm

Front I/O Ports

  • USB 3.2 Gen 1 Type-A:1
  • USB 3.2 Gen 2×2 Type-C (20 Gbps):1
  • Headset Audio Jack:1

Included Accessories

  • Installation screws:1
  • Cable ties:10
  • RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)

Expansion Slots

  • Standard:7

Drive Bays

  • 2.5″:1+1
  • 3.5″:1

Fan Support

  • Front:2 x F Series RGB 140mm (Case Version) included
  • Top:2 x 120mm
  • Rear:1 x 120mm
  • Bottom:1 x F Series Quiet 120mm (Case Version) included
  • Filters:All Air Intakes

Radiator Support

  • Front:Up to 280mm
  • Top:Up to 240mm
  • Rear:Up to 120mm

Fan Specs

  • Model:F140 RGB Fan (Case Version)
  • Speed:500 – 1800 RPM
  • Airflow:24.85 – 89.48 CFM
  • Static Pressure:0.94 – 3.39 mm-H2O
  • Noise:20 – 32.5 dBA
  • Fan Connector:3-pin

Fan Specs

  • Model:F120Q Airflow Fan (Case Version)
  • Speed:1200 ± 240 RPM
  • Airflow:62.18 CFM
  • Static Pressure:1.05 mm-H2O
  • Noise:25.1 dBA
  • Fan Connector:3-pin
