CASE NZXT H7 FLOW MIDI RGB BLACK

CASE NZXT H7 FLOW MIDI RGB BLACK

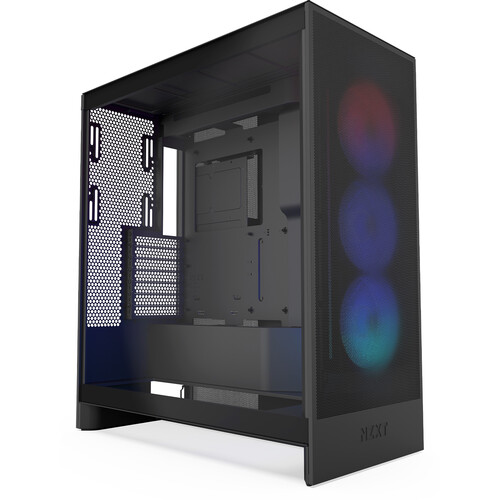

Interior Design
Sporting a unique look, the 2024 edition H7 Flow uses a multi-chamber design that gives builders access

to a fully accessible bottom panel for additional airflow while keeping the

ATX power supply hidden behind a shroud which also optimizes cable management.

The motherboard tray supports a wide range of ATX, M-ATX, M-ITX,

and E-ATX form factors with ample room for the rest of your key components.
F360 RGB Core Fan

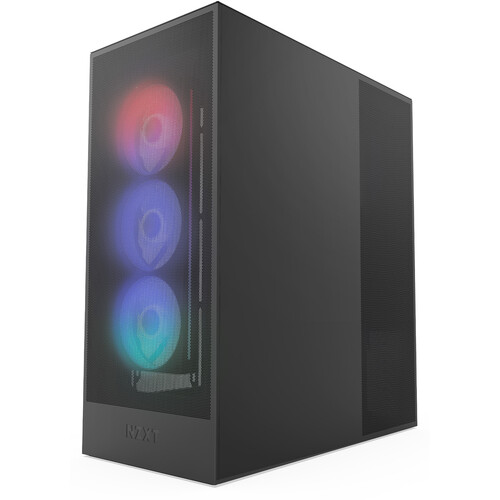

Pre-installed at the front of the H7 Flow RGB is an F360 RGB Core,

a unique, single-frame 3-fan array that simplifies your cooling while offering vast customization options.
Fan Installation

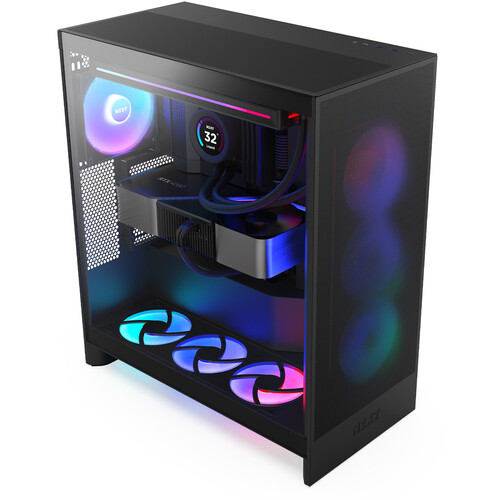

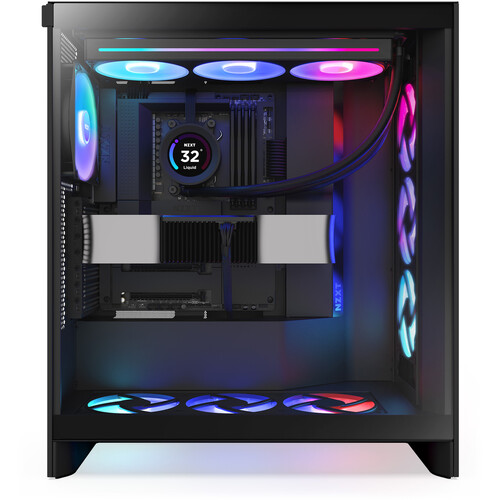

The interior of the H7 Flow allows you to install a wide range of fans with three 120mm or 140mm fans at the front,

a 120mm or 140mm fan at the rear, three 120mm or two 140mm fans at the top, and three 120mm fans on the bottom plate.
Radiator Support

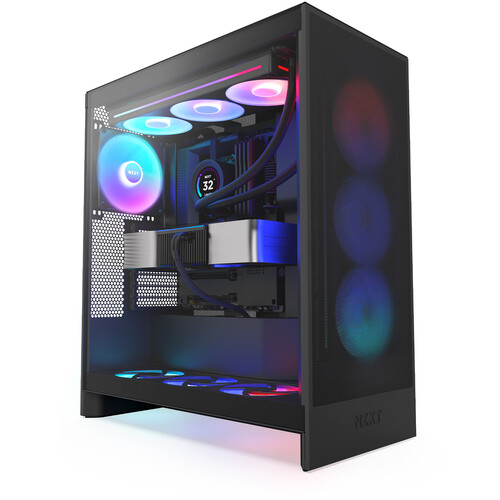

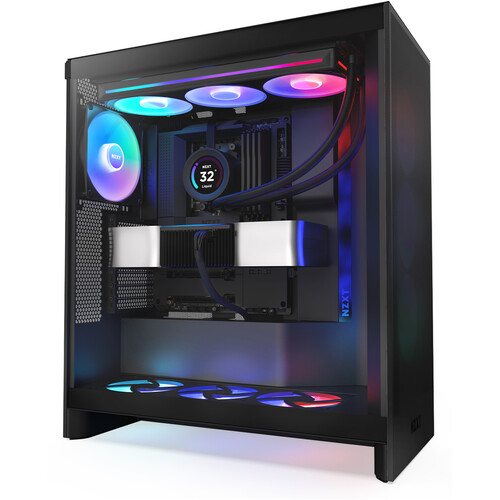

With support for liquid AiO coolers, you can install a variety of radiators all around the H7 Flow.

Install radiators up to 420mm at the front and 360mm at the top or bottom of the case.

You also have the option to install a 120mm radiator on the rear panel.
Tool-Less Design

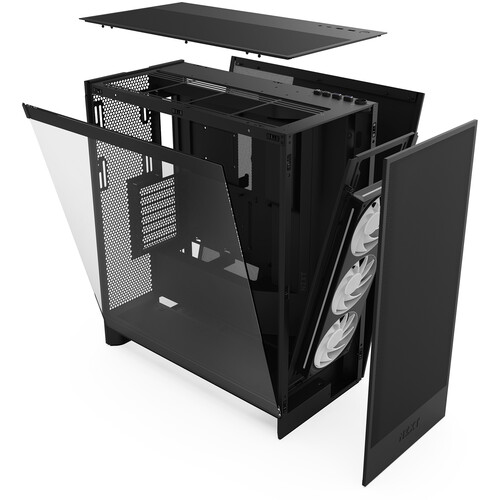

With easy dismantling of the top, front, and side panels, you can upgrade your system and access your wire management spaces.

This also gives you access to the various dust filters found in the top, front, and bottom panels.

CASE NZXT H7 FLOW MIDI RGB BLACK

Motherboard Support
ATX, E-ATX, Micro-ATX, Mini-ITX
Internal Drive Bays
2x 2.5″
and
2x 2.5/3.5″

Expansion Slots
7x Full Height
Maximum GPU Length
16.1″ / 410 mm
CPU Cooler Height
7.3″ / 185 mm
Fans Included
Front:
3x 120 mm LED (1700 rpm)
I/O
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Windowed Panel
Yes
Built-In Lighting
No
Tool-Less Design
Thumbscrews
Compatibility
Motherboard Support
ATX, E-ATX, Micro-ATX, Mini-ITX
External Drive Bays
No
Internal Drive Bays
2x 2.5″
and
2x 2.5/3.5″

Expansion Slots
7x Full Height
Maximum GPU Length
16.1″ / 410 mm
CPU Cooler Height
7.3″ / 185 mm
Supported PSU Size
ATX
Maximum PSU Length
7.9″ / 200 mm
PSU Mounting Location
Bottom
Cooling
Fan Mounting
Front
3x 120/140 mm
Top
3x 120 mm
or
2x 140 mm
Rear
1x 120/140 mm
Fans Included
Front:
3x 120 mm LED (1700 rpm)
Maximum Radiator Size
Front:
240 mm
Noise Level
23.3 dBA
Fan Controller Included
No
Filter Locations
Bottom, Front, Top
Inputs / Outputs
I/O
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Media/Memory Card Slot
No
Audio I/O
1x 3.5 mm Input/Output
Display Outputs
No
Physical
Windowed Panel
Yes
Color
Black
Material
Steel, Tempered Glass
Built-In Lighting
No
Tool-Less Design
Thumbscrews
Security
No
Cable Management Space
Yes
Dimensions (W x H x D)
9.6 x 21.4 x 18.4″ / 244 x 544 x 468 mm
Packaging Info
Package Weight
30.695 lb
Box Dimensions (LxWxH)
25.2 x 22 x 13.3″
