CASE THERMALTAKE CERES 500

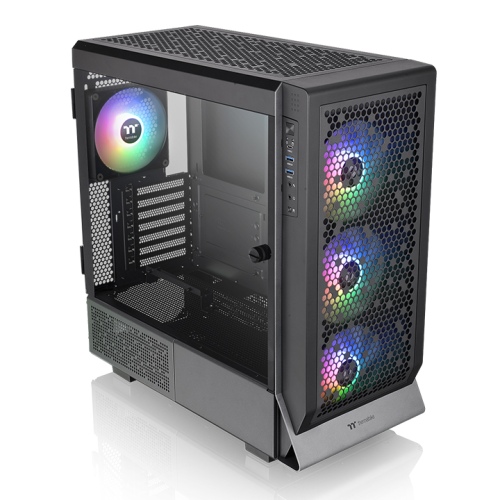

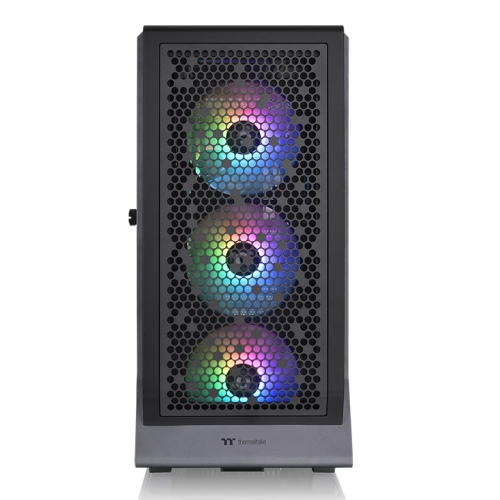

Designed with excellent cooling performance, the Ceres 500 TG ARGB Mid Tower Chassis comes with four CT140 ARGB Sync PC Cooling Fans pre-installed, and more than 60% of its panels are perforated to guarantee maximum airflow. Moreover, it supports up to a 420mm radiator at the front, or dual 360mm radiators at the front and on the top.
SPECS
P/N | CA-1X5-00M1WN-00 |
---|---|
SERIES | Ceres |
CASE TYPE | Mid Tower |
DIMENSION (H X W X D) | 525 x 245 x 507.7 mm (20.7 x 9.6 x 20 inch) |
NET WEIGHT | 10.5 kg / 23.15 lbs. |
SIDE PANEL | 3mm Tempered Glass x 1 |
COLOR | Black |
MATERIAL | SPCC |
COOLING SYSTEM | Front(intake): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 3 Rear(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1 |
DRIVE BAYS | 2 x 3.5”, 6 x 2.5” or 8 x 2.5” |
EXPANSION SLOTS | 7 (Rotatable Patented Design) |
MOTHERBOARDS | 6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX), 12″ x 9.6″ (ATX), 12″ x 13″ (E-ATX) |
I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mmTop: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm |
RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mmTop: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
CLEARANCE | CPU cooler max height: 185mm VGA max length: 395mm (with radiator) 425mm (without radiator) PSU max length: 220mm |
