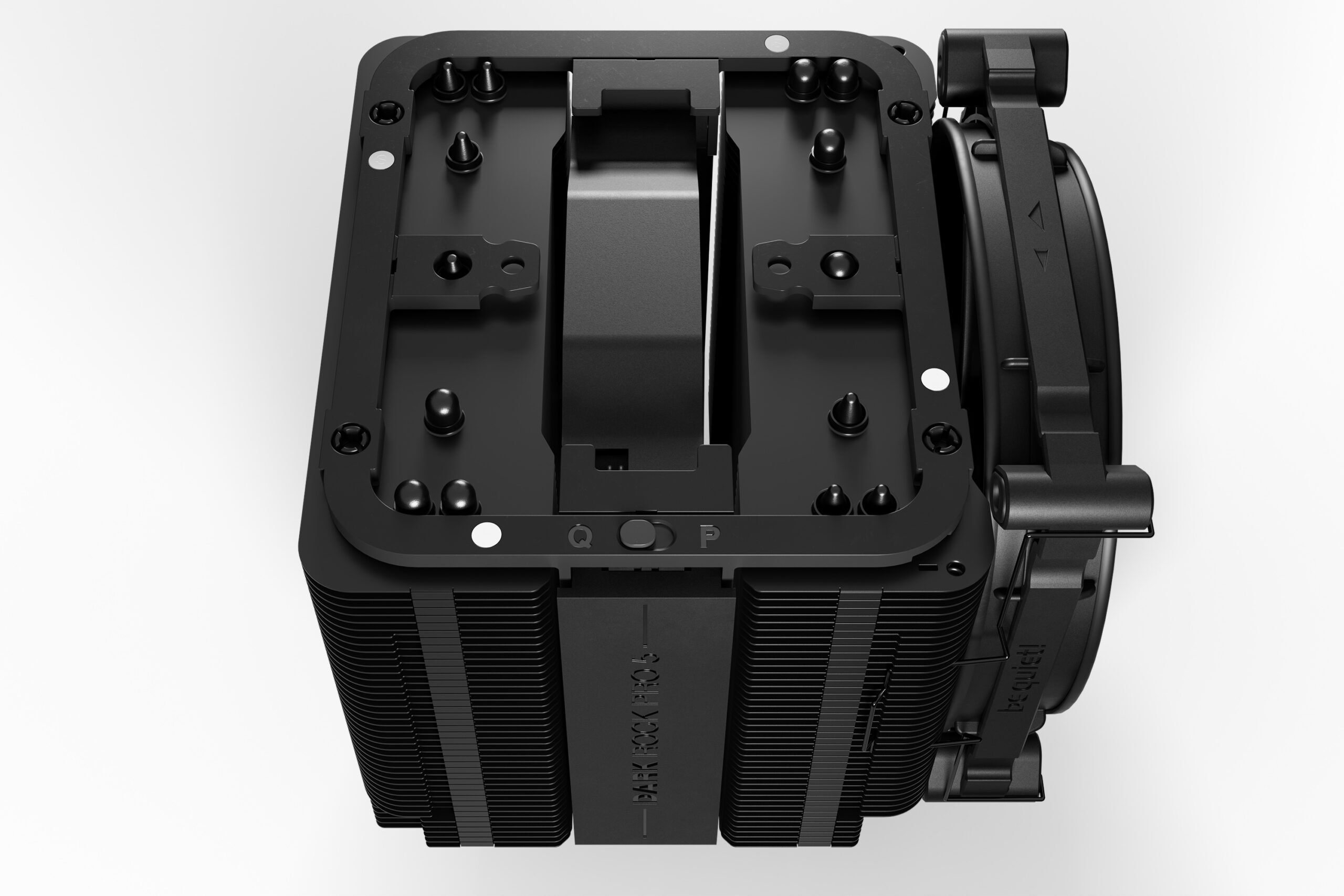

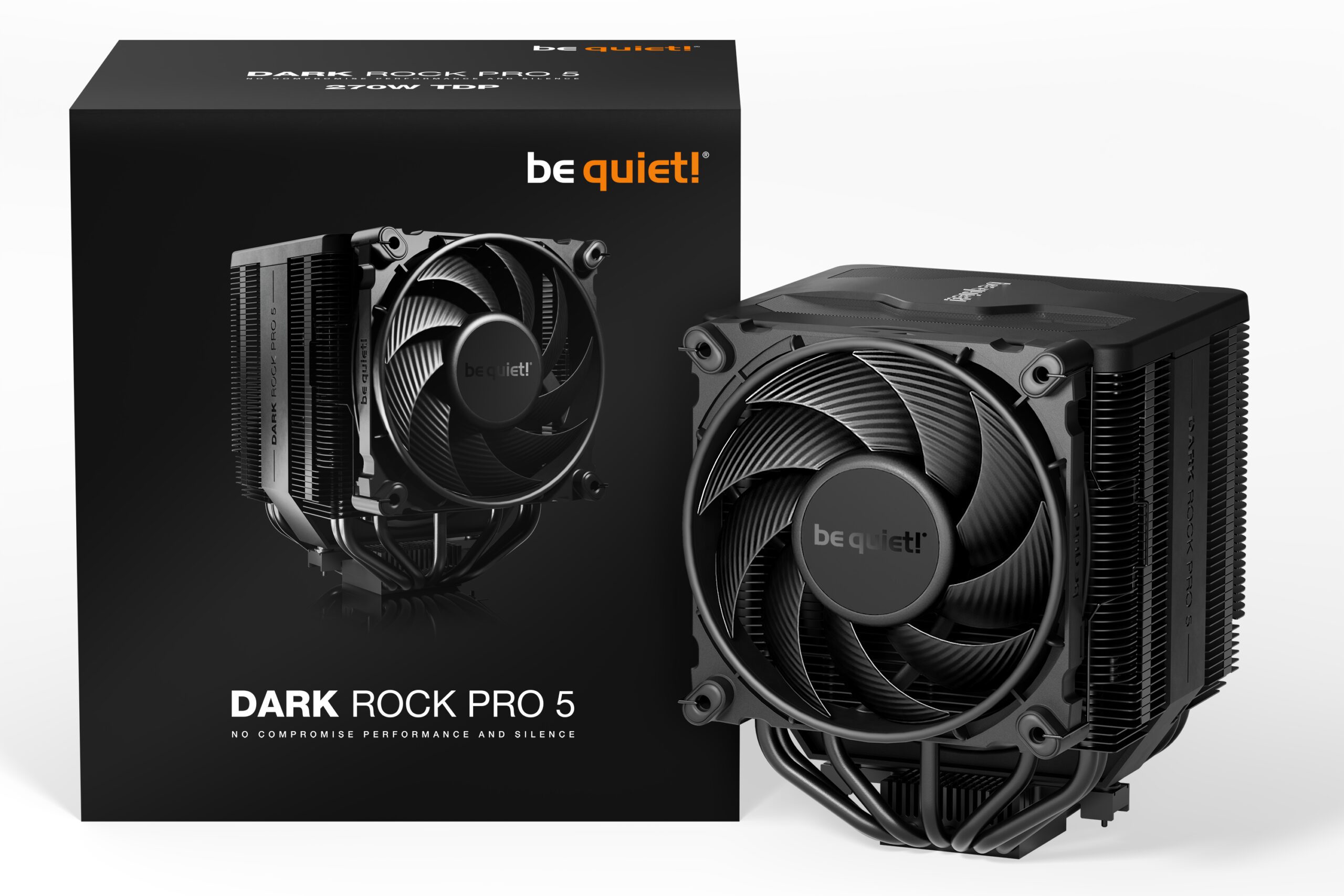

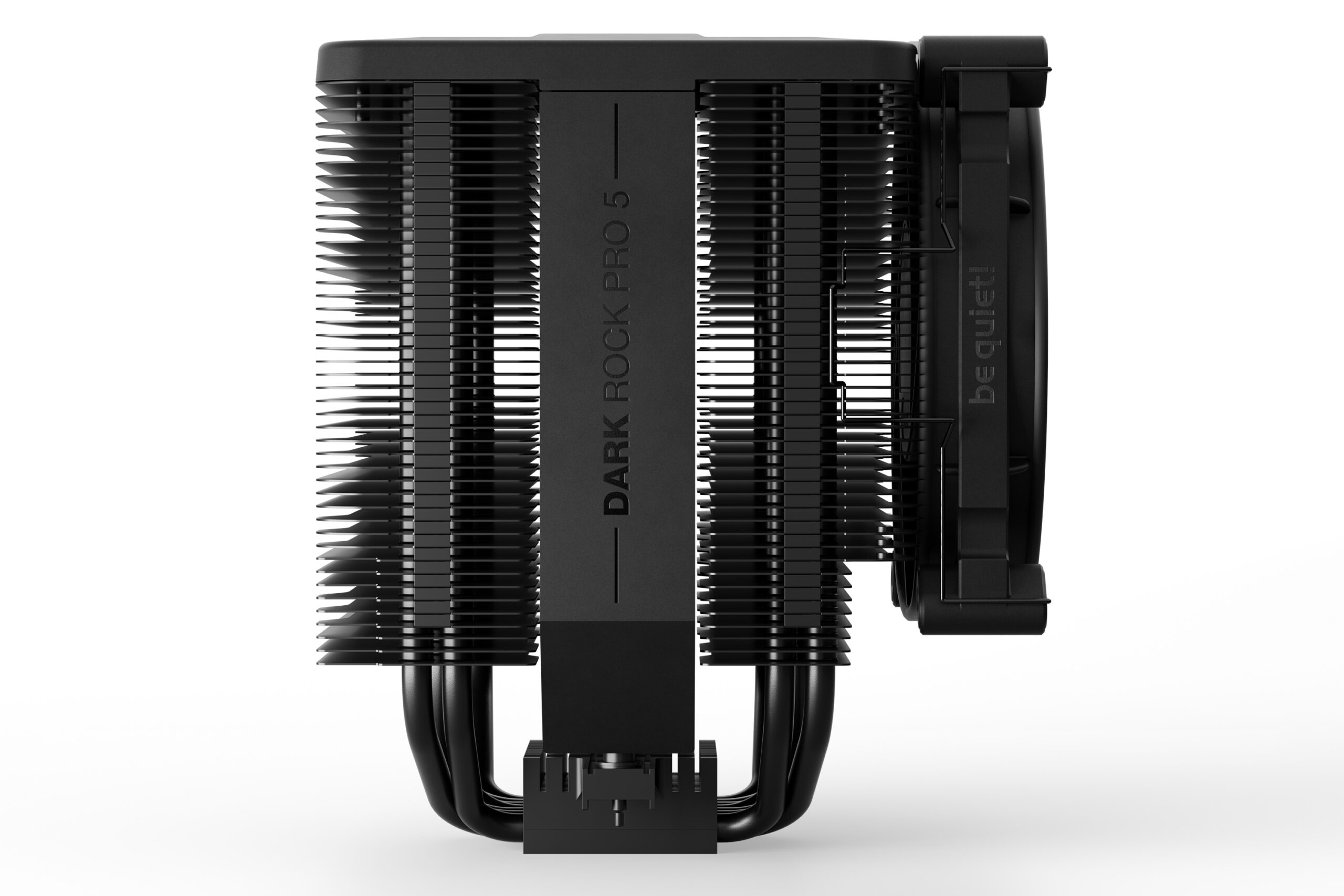

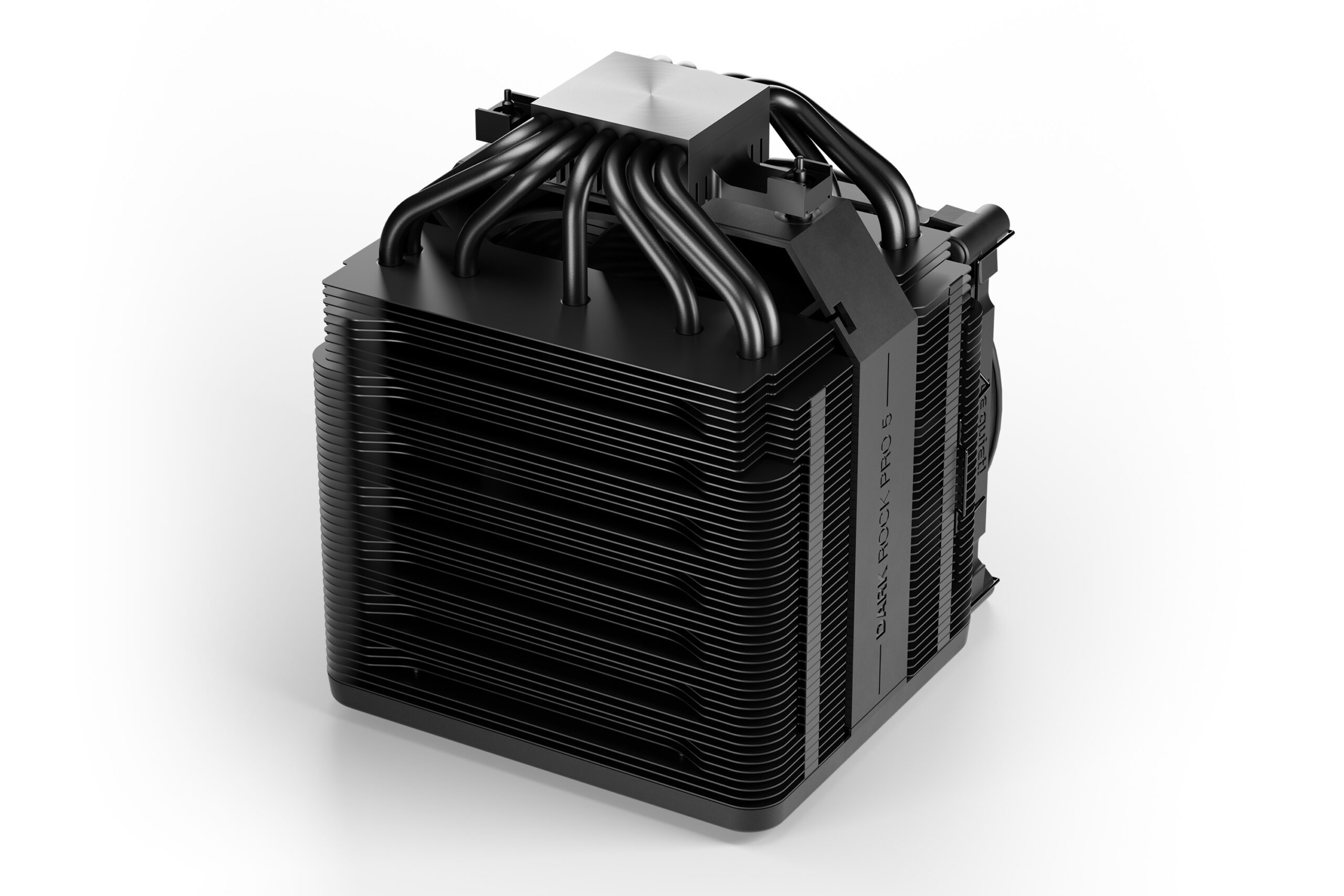

CPU COOLER BE QUIET! Dark Rock Pro 5
- 7 high-performance heat pipes for immensely high cooling power
- 2 virtually inaudible Silent Wings PWM fans for perfect airflow
- Front fan with funnel-shaped outlet for optimal air distribution
- A speed switch allows you to switch between Quiet Mode and Performance Mode anytime
- Height-adjustable front fan and generous heat sink cut-outs for high RAM and VRM cooler compatibility
- Special black coating with ceramic particles enables perfect heat transfer and elegant look
- Compatible with liquid metal thermal grease
General data
Model | Dark Rock Pro 5 |
TDP (W) | 270 |
Color option | Black |
Overall dimensions without mounting material (L x W x H), (mm) | 145 x 136 x 168 |
Total weight (kg) | 1.29 |
Socket compatibility Intel | 1700 / 1200 / 1150 / 1151 / 1155 |
Socket compatibility AMD | AM5 / AM4 |
Overall noise level (dB(A)) @ 50/75/100% (rpm) | 8.9 / 16.3 / 23.3 |
Number of fans | 2 |
Lighting connector | – |
Heatsink specifications
Dimensions (L x W x H), (mm) | 119.5 x 136 x 168 |
Fin material | Aluminum |
Surface treatment | Ceramic coating |
Base material | Copper |
CPU contact surface | CNC machined |
Heatpipe number / Diameter (mm) | 7 / 6 |
Decoupled fan mounting | – |
Fan specifications
Fan model | Silent Wings / Silent Wings 4 |
Fan dimensions (mm) | 135 x 135 x 25 / 120 x 120 x 25 |
Speed @ 100% PWM /12V (rpm) | 1300; 1500 / 1700; 2000 |
Bearing technology | Fluid Dynamic Bearing |
Motor technology | 6-pole fan motor |
Rated Voltage (V) | 12 |
Input current (A) | 0.28 / 0.20 |
Input power (W) | 3.36 / 2.4 |
Connector | 4-pin PWM |
Lighting connector | – |
Cable length (mm) | 120 / 80 |
Lifespan (h / 25°C) | 300,000 |
Y-Cable | ✓ |

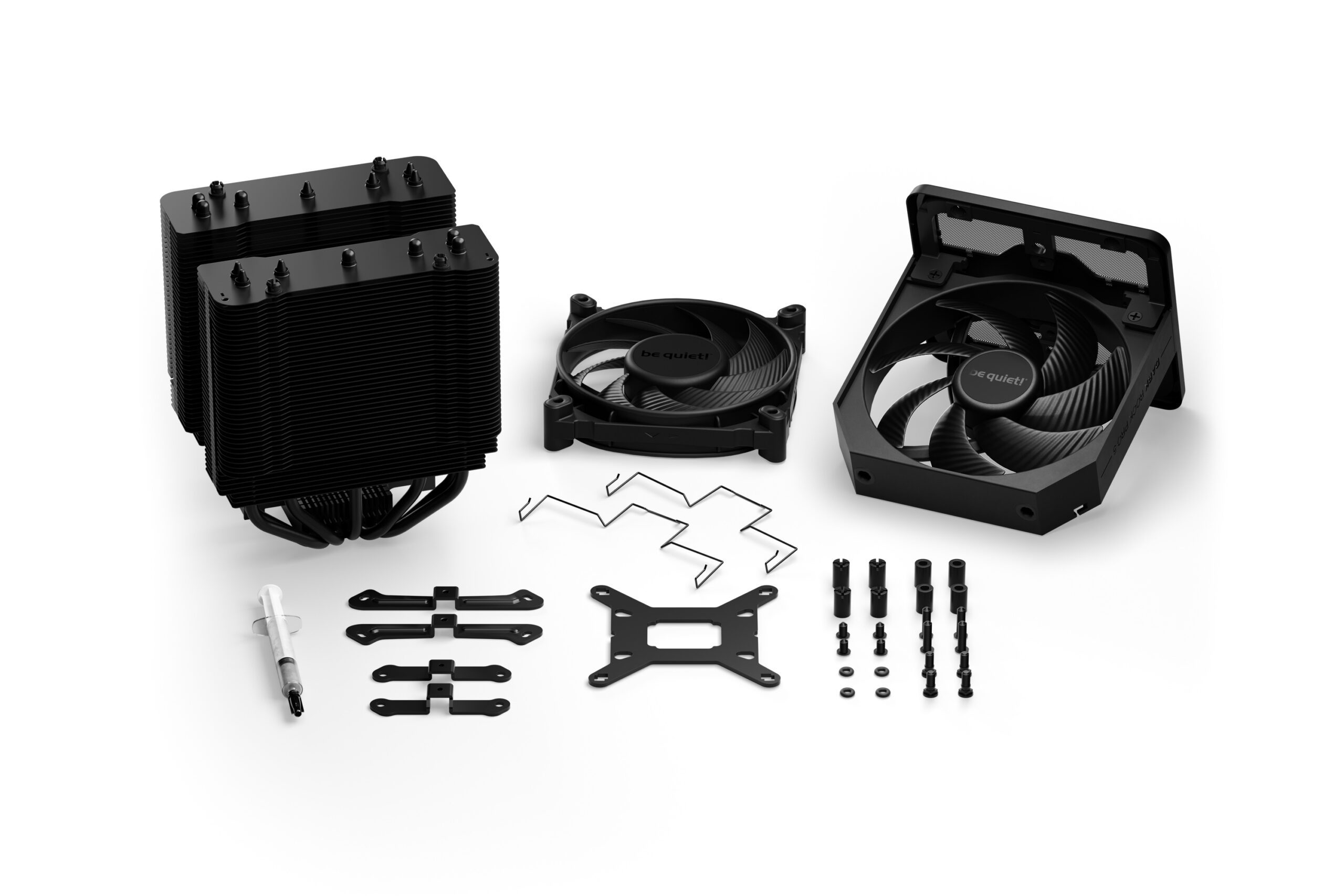

Accessories
Thermal grease (Type) | Included |
Mounting set | Intel & AMD |
Y-Cable | – |
User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certification
Approvals | CE, UKCA, UL, TÜV |
