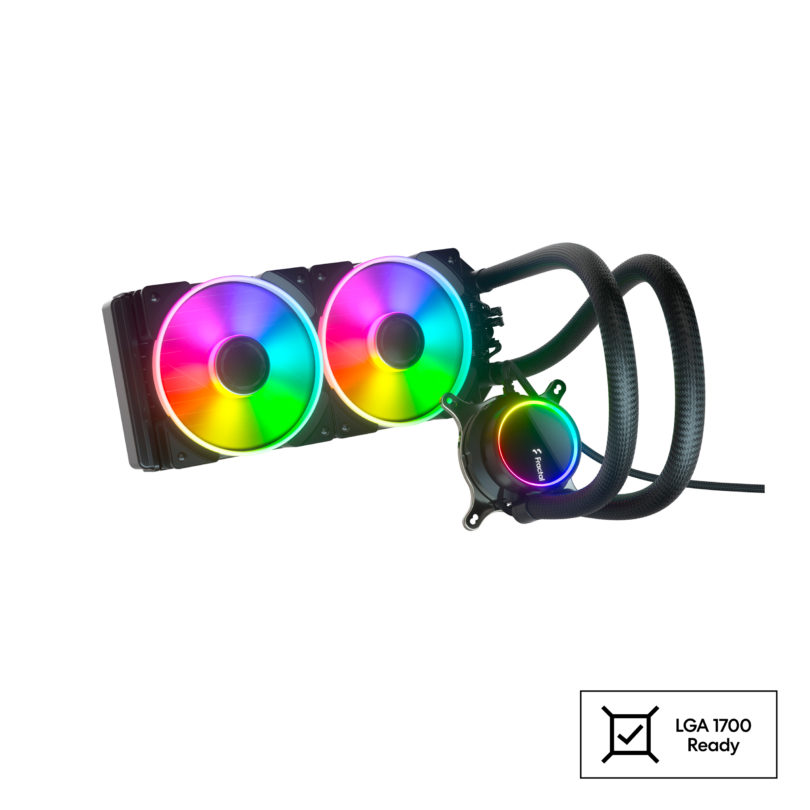

CPU COOLER LIQUID FRACTAL DESIGN CELSIUS+ S24 PRISMA 240MM

Gjendja:

Ka stok
Lista Dëshirave
Krahëso

CPU COOLER LIQUID FRACTAL DESIGN

  • • Tinted glass pump face with backlit logo and ARGB LED effects
  • • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
  • • Backed by a 5-year warranty for extended peace of mind
  • • Compatible with LGA 1700 and AM5

18,500 L

Ka stok

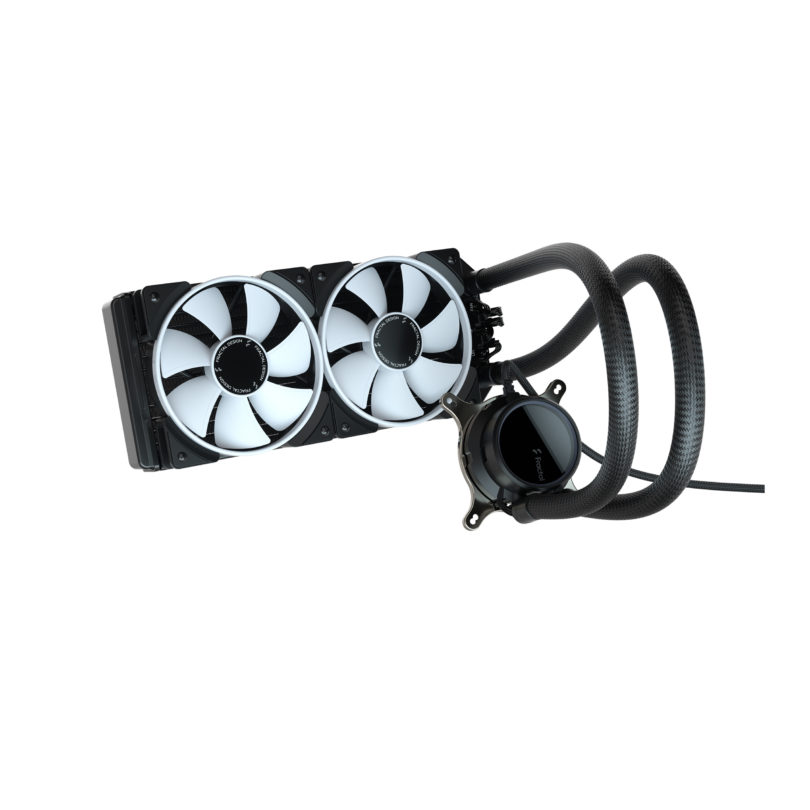

CPU COOLER LIQUID FRACTAL DESIGN

Celsius+ S24 Prisma

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5.

  • • Tinted glass pump face with backlit logo and ARGB LED effects
  • • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
  • • Backed by a 5-year warranty for extended peace of mind
  • • Compatible with LGA 1700 and AM5

General specifications

  • Sockets supported (Intel)
    1700*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
  • Sockets supported (AMD)
    AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
  • * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
  • Coldplate material
    Copper
  • Thermal paste
    Pre-applied
  • Tube length
    400 mm
  • Tube material
    Low-permeability rubber with braided nylon sleeve
  • Fittings, block side
    Articulating 90-degree elbow
  • Fittings, radiator side
    Straight rotary
  • Fan control
    Dual mode (Auto/PWM)
  • Note:
    The Celsius+ is NOT compatible with the Adjust R1

Fan specifications

  • Fan type
    Prisma AL-12 PWM ARGB
  • Rotational speed
    500 – 2000 RPM
  • Bearing
    LLS
  • PWM control
    Yes
  • Acoustical noise (full speed)
    32.7 dBA
  • Maximum air flow
    85.71 CFM
  • Maximum static pressure
    2.78 mm H2O
  • Input voltage
    12V DC
  • Maximum input current
    0.18A
  • MTBF
    100,000 hours

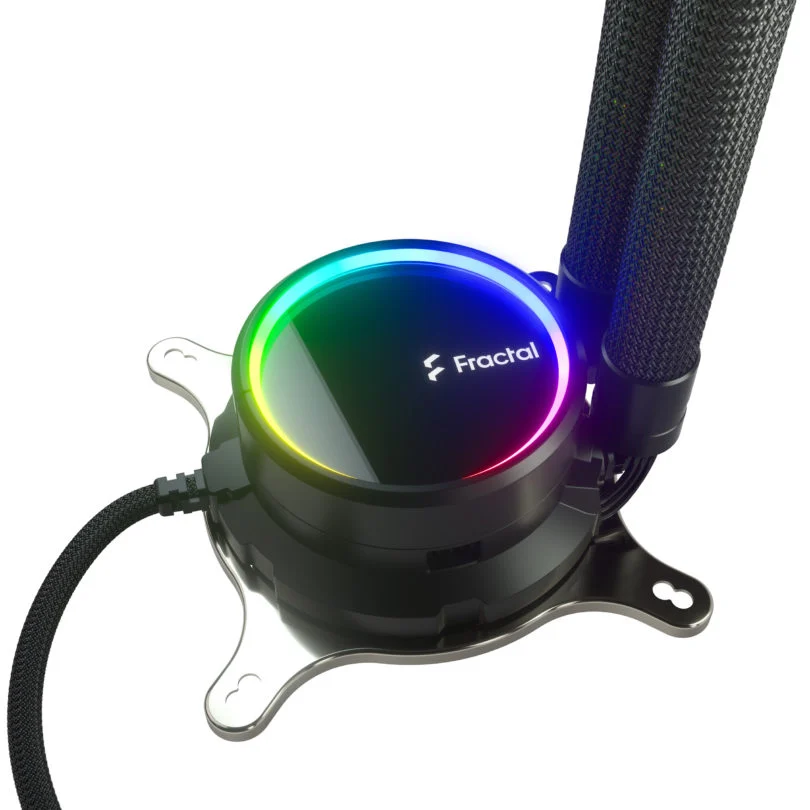

Pump specifications

  • Rotational speed
    800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
  • Bearing type
    Ceramic bearing and shaft
  • PWM control
    Yes
  • Acoustical noise (full speed)
    20 dBA
  • Maximum pressure
    14.4 kPa / 1.46 mm H2O /2.0 PSI
  • Input voltage
    12V DC
  • Input current (without fans)
    0.36A
  • MTTF
    50,000 hours
  • Block height
    45 mm
  • Block measurements (with fittings)
    86 x 75 mm
  • Block diameter (main block body)
    62 mm

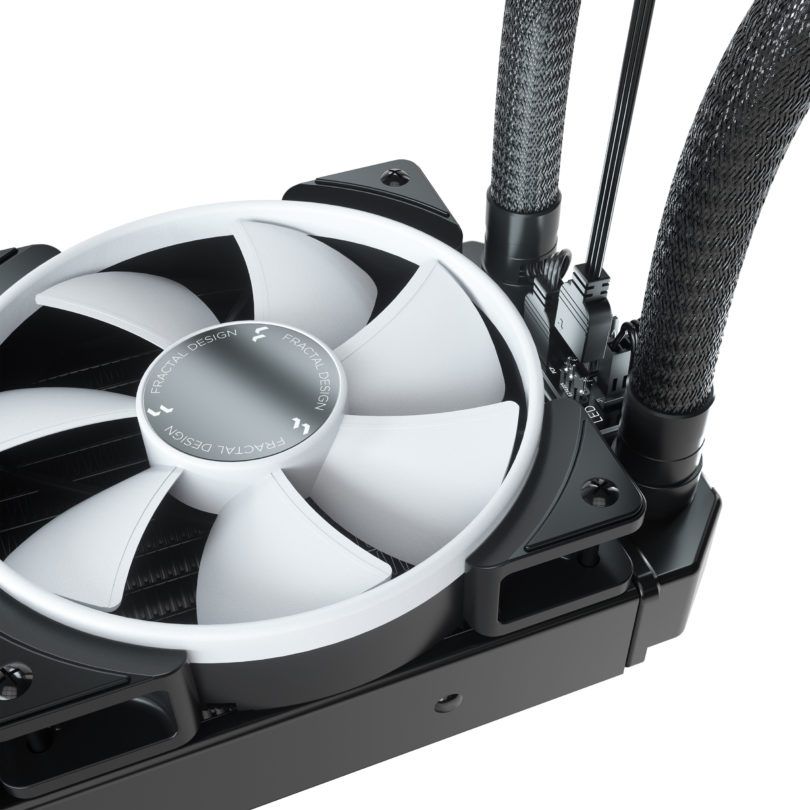

Radiator specifications

  • Dimensions
    122 x 31 x 284 mm
  • Housing material
    Aluminum
  • Fin material
    Aluminum
  • Fan screw threads
    6-32

Other

  • Package contents
    Celsius+ S24 unit, 2 x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
  • Package Dimensions
    411 x 180 x 145 mm
  • EAN
    7340172702108
  • UPC
    843276102104
  • JAN
    4537694275545
  • Product code
    FD-W-2-S2402
