FAN BE QUIET! PURE WINGS 3 120MM

Gjendja:

Ka stok


FAN BE QUIET! PURE WINGS 3 120MM

  • Optimized fan frame for outstanding performance on radiators
  • Newly designed fan blades and re-arranged angle for extraordinary air pressure
  • Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
  • Long life rifle bearing gives an operating lifetime of 80,000 hours
  • Product conception, design and quality control in Germany

2,000 L

Ka stok

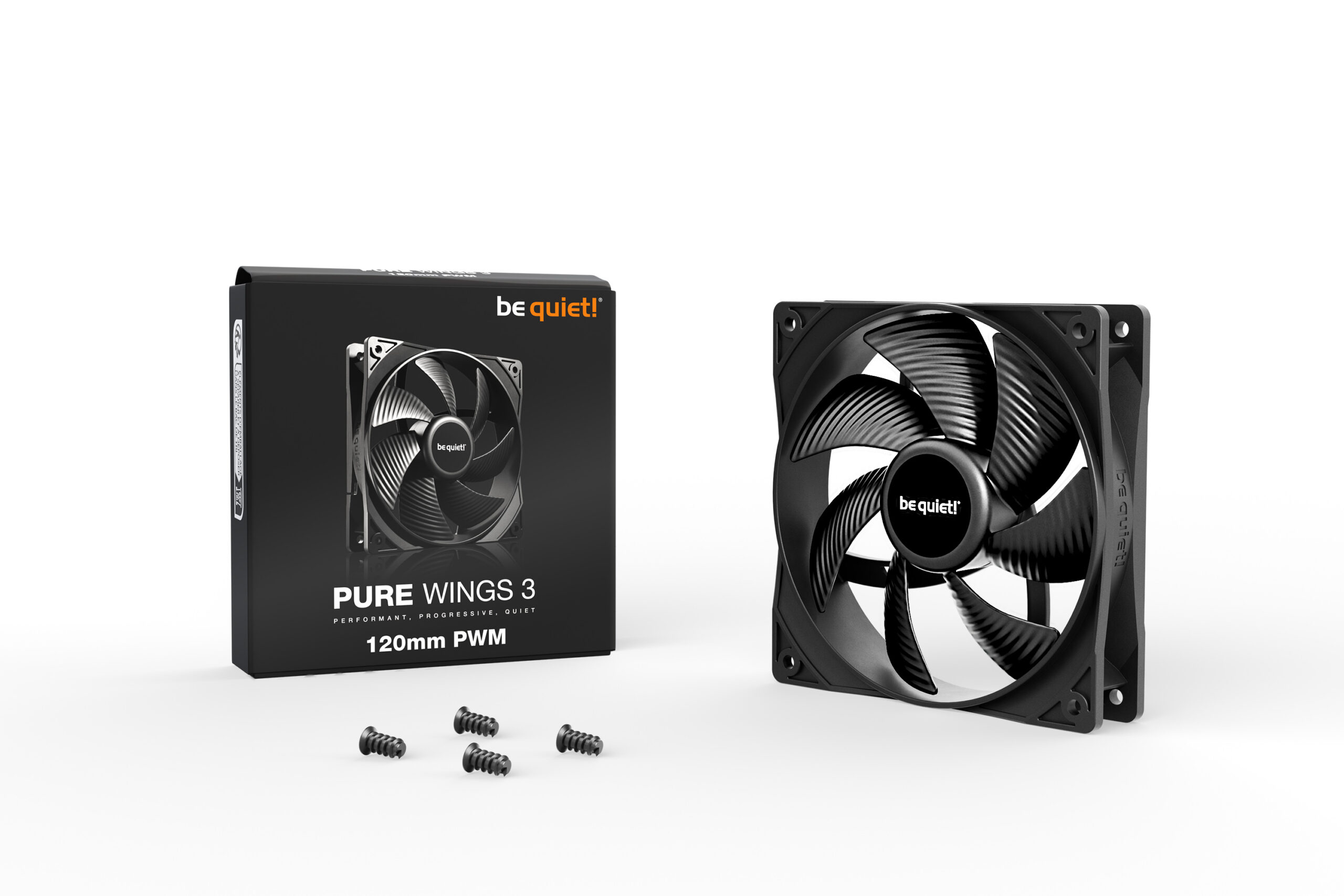

FAN BE QUIET! PURE WINGS 3 120MM

Performant, Progressive, Quiet

With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system.

  • Optimized fan frame for outstanding performance on radiators
  • Newly designed fan blades and re-arranged angle for extraordinary air pressure
  • Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
  • Long life rifle bearing gives an operating lifetime of 80,000 hours
  • Product conception, design and quality control in Germany

General data

Model Pure Wings 3 120mm PWM
Dimensions (mm) 120
Color option Black
Lighting
Fan speed at 100% PWM / 12V (rpm) 1600
Noise level at 100% PWM / 12V (dB(A)) 25.5
Airflow at 100% PWM / 12V (CFM / m3/h) 49.9 / 84.8
Air Pressure at 100% PWM / 12V (mm H2O) 1.45

Infographics

Mechanical specifications

Dimensions (L x W x H), (mm) 120 x 120 x 25
Weight incl. fixed cables (g) 148
Bearing technology Rifle
Motor technology 4-pole fan motor
Push pin fixing
Screw fixing

Cables / Connectors

Daisy-chain compatible
Lighting connector
Connector 4-pin PWM
Cable length (mm) 460
Cable sleeve

Performance / Noise

Airflow at 100% PWM / 12V (CFM / m3/h) 49.9 / 84.8
Air Pressure at 100% PWM / 12V (mm H2O) 1.45
Noise level at 100% PWM / 12V (dB(A)) 25.5
Lifespan (h / 25°C) 80,000
Zero RPM mode

Electrical specifications

Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 – 13.2
Current consumption (A) 0.10
Safety current (A) 0.20
Input power (W) 2.4
Rated Current LED (A)

Accessories

3-pin to 4-pin 12V-connector
12V to 7V adapter
12V to 5V adapter
Screws 4
Push pins
hard plastic washer
