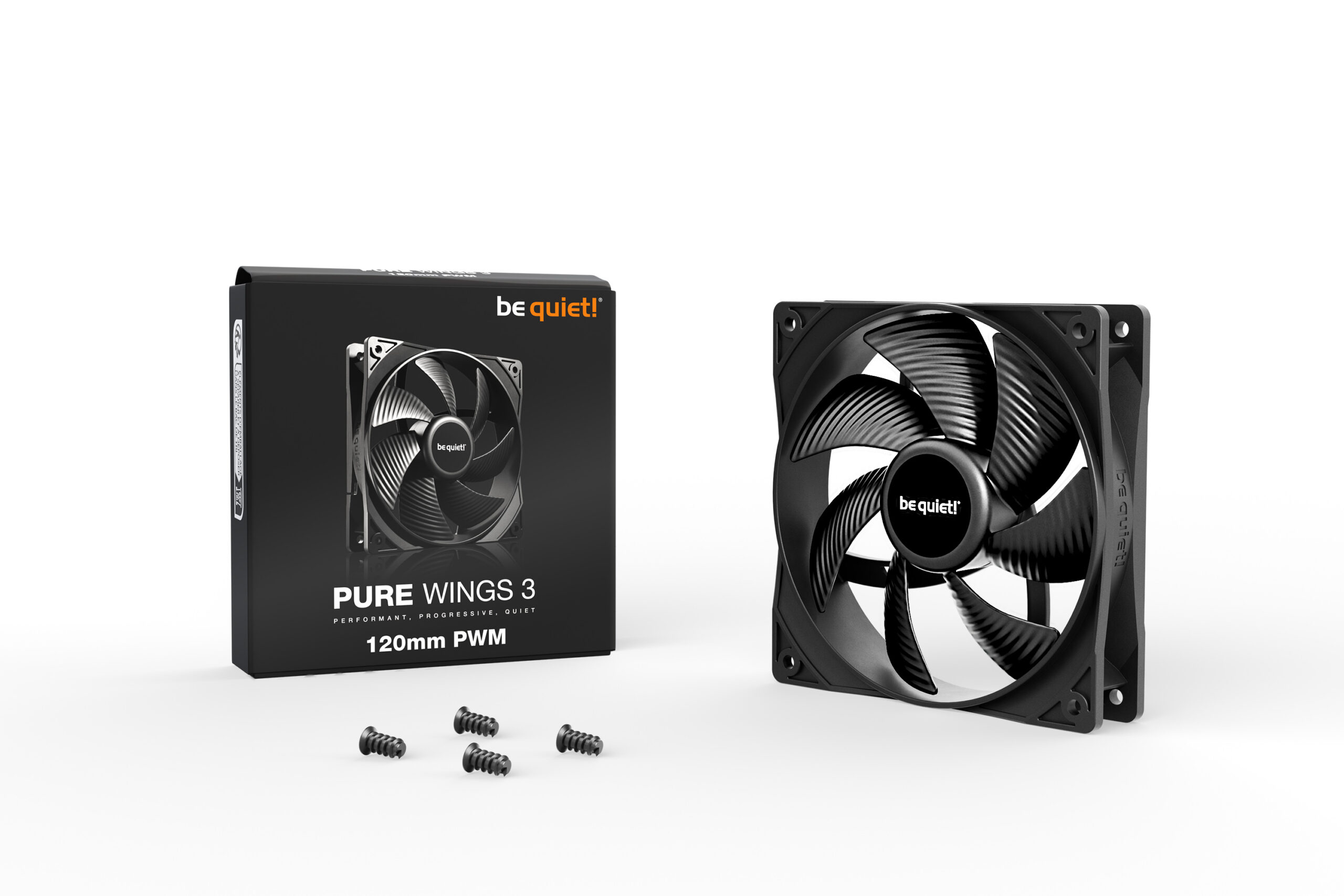

FAN BE QUIET! PURE WINGS 3 120MM
Availability:
Ka stok
FAN BE QUIET! PURE WINGS 3 120MM
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
2,000 L
Ka stok
FAN BE QUIET! PURE WINGS 3 120MM
Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
General data
| Model | Pure Wings 3 120mm PWM |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | – |
| Fan speed at 100% PWM / 12V (rpm) | 1600 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 148 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | – |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | – |
| Lighting connector | – |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | – |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.9 / 84.8 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.45 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | – |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 – 13.2 |
| Current consumption (A) | 0.10 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | – |
Accessories
| 3-pin to 4-pin 12V-connector | – |
| 12V to 7V adapter | – |
| 12V to 5V adapter | – |
| Screws | 4 |
| Push pins | – |
| hard plastic washer | – |
| Others | – |
