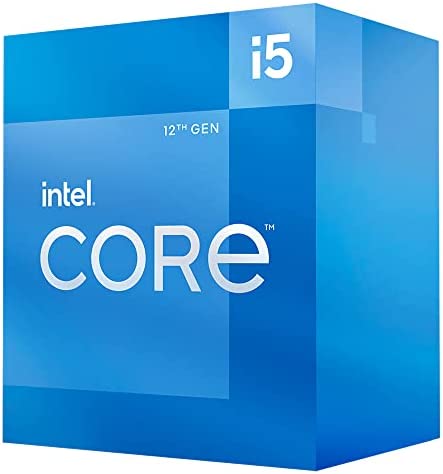

INTEL CORE i5 12400F GEN 12 TRAY

Product Collection : 12th Generation Intel Core i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12400F

CPU Specifications

Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.40 GHz
Performance-core Max Turbo Frequency : 4.40 GHz
Performance-core Base Frequency : 2.50 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

Supplemental Information
Embedded Options Available : No
Datasheet : View now

Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

Expansion Options
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations ‡ : Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes : 20

Package Specifications
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm

Advanced Technologies
Intel Gaussian & Neural Accelerator : 3.0
Intel Thread Director : No
Intel Deep Learning Boost (Intel DL Boost) : Yes
Intel Optane Memory Supported ‡ : Yes
Intel Speed Shift Technology : Yes
Intel Turbo Boost Max Technology 3.0 ‡ : No
Intel Turbo Boost Technology ‡ : 2.0
Intel Hyper-Threading Technology ‡ : Yes
Intel 64 ‡ : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep Technology : Yes
Thermal Monitoring Technologies : Yes
Intel Volume Management Device (VMD) : Yes

Security & Reliability
Intel Standard Manageability (ISM) ‡ : Yes
Intel AES New Instructions : Yes
Secure Key : Yes
Intel OS Guard : Yes
Execute Disable Bit ‡ : Yes
Intel Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel Control-Flow Enforcement Technology : Yes
Intel Virtualization Technology (VT-x) ‡ : Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
Intel VT-x with Extended Page Tables (EPT) ‡ : Yes
