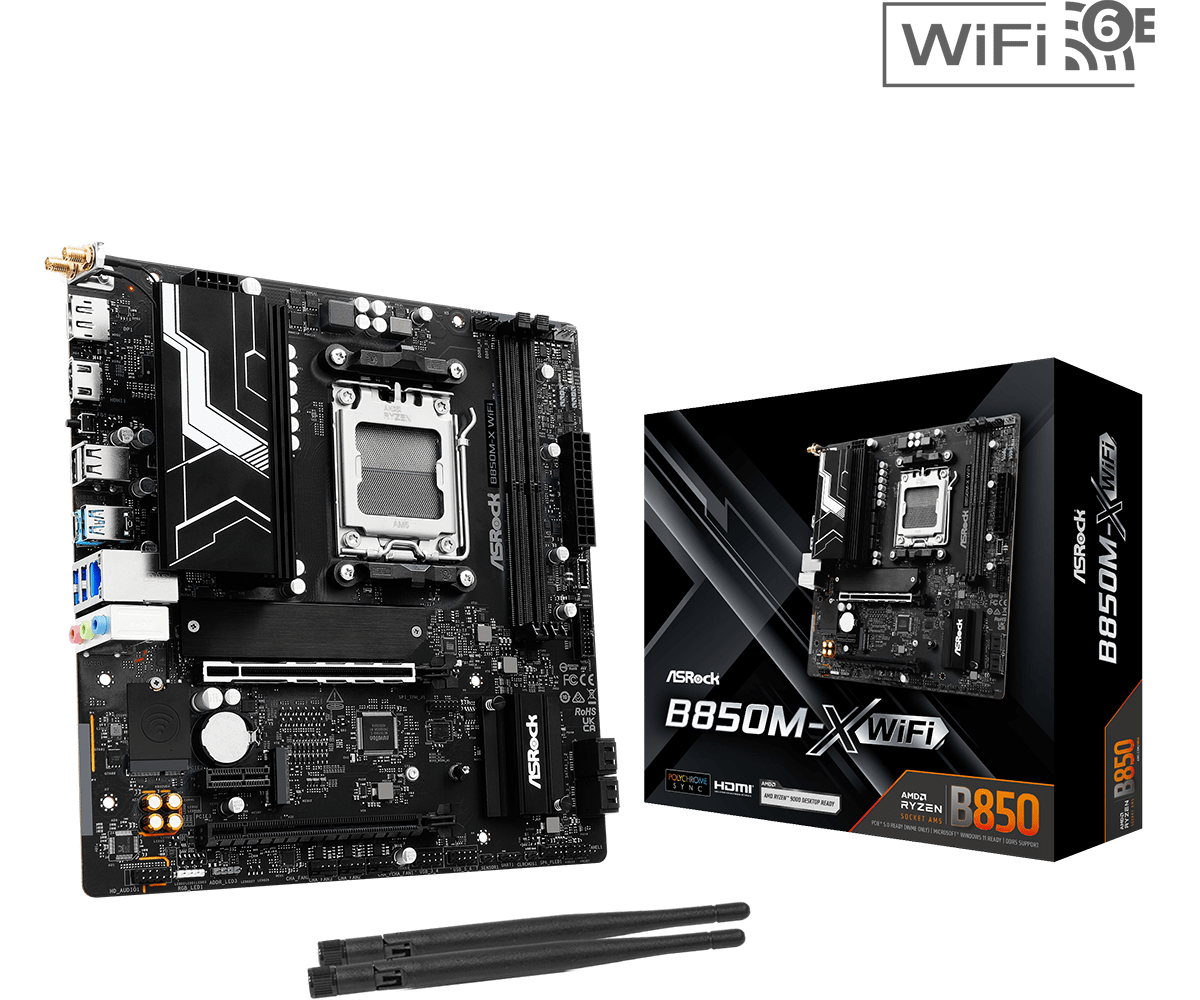

MBO ASROCK B850M-X WIFI AM5
,

MBO ASROCK B850M-X WIFI AM5

Gjendja:

Ka stok
Lista Dëshirave
Krahëso

MBO ASROCK B850M-X WIFI AM5

  • Socket AM5,
  • B850 Chipset,
  • Supports 7000/8000/9000 series AMD Ryzen,
  • 2x DIMM Slots,
  • DDR5 8200MHz (OC),
  • PCIe Gen 4,
  • 4x SATA 6Gb/s connectors,
  • 2x M.2 Slot, 2.5GB LAN,
  • mATX

17,000 L

Ka stok

MBO ASROCK B850M-X WIFI AM5

Detail Specification
Memory Dual Channel DDR5 Memory Technology, 2 x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC,

un-buffered memory up to 8200+(OC), Max. capacity of system memory: 128GB,

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Expansion Slot (CPU) 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Expansion Slot (Chipset) 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU), 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,

HDCP 2.3 and max. resolution up to 4K 120Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG),

Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control,

Visual Network Usage Statistics, User Customized Priority Control
Wireless LAN 802.11axe Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe,

Dual-Band 2×2 with extended 6GHz band (requires 6GHz compatible router), Bluetooth 5.2, MU-MIMO
USB 3 x USB 3.2 Gen1 Type-A (Rear), 1 x USB 2.0 (Rear), 2 x USB 3.2 Gen1 Type-C

(1 Rear, 1 Front), 2 x USB 3.2 Gen1 Type-A (Front), 5 x USB 2.0 (1 Rear, 4 Front), All USB ports support ESD Protection
Rear Panel I/O 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port,

3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, HD Audio Jacks (Line in / Front Speaker / Microphone)
Storage 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*,

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*,

4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices,

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Connector 1 x Thermistor Cable Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header*, 3 x Addressable LED Headers**

, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***, 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***,

1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector),

1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen1 Header
Software and UEFI ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash
Software Support Microsoft® Windows® OS 10 64-bit / 11 64-bit, FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
Certifications 1 x I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Platform Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm, Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Unique Feature Superb Productivity, PCIe Gen5 (M.2), Dual Channel DDR5, Rock-Solid Durability, 6+1+1 Power Phase, Dr.MOS for VCore,

Ultrafast Connectivity, 2.5G LAN, 802.11axe Wi-Fi 6E Module, EZ Update, BIOS Flashback Button, EZ Troubleshooter, ASRock Post Status Checker
Chipset AMD B850
Wi-Fi & LAN
LAN Yes
LAN Ports 1x 2.5 Gbit/s
LAN Chip Dragon RTL8125BG
Wi-Fi / Bluetooth Yes
Motherboard
Motherboard Chipset AMD B850
Form Factor
Motherboard formfactor Micro-ATX
CPU
CPU Manufacturer AMD
CPU Socket AM5
Lighting
Lighting / RGB Yes
Colour
Primary Colour Black
Fan Header
4 Pin Fan Connectors 6
Memory
Max. Memory 128 GB
Memory Type DDR5
Memory Form Factor DIMM
Max. Memory Speed (OC) 8200 MT/s
EEC Support Yes
Memory slots 2x
Performance Profile AMD EXPO, XMP
Expansion Slots
PCIe x16 slots (total) 1
PCIe x4 slots (total) 1
PCIe x1 slots (total) 1
PCIe 4.0 x16 mechanical slot 2
PCIe 4.0 x1 mechanical slot 1
Internal Ports
CPU Power Supply 1x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1
USB 3.0 (internal) Header 1
USB 3.0 (internal) Possible Ports 2
USB 2.0 (internal) Header 2
USB 2.0 (internal) Possible Ports 4
Front Panel Audio Header Yes
SPI TPM Header Yes
External Ports
USB 3.0 (external) Type C 1
USB 3.0 (external) Type A 3
USB 2.0 (external) Type A 2
Display Connectors HDMI (1x), Display Port (1x)
Storage Ports
M.2 PCIe 4.0 x4 1
M.2 PCIe 5.0 x4 1
SATA 6G (internal) 4
Cooling
M.2 Heatsinks Yes
VRM Heatsinks Yes
Audio
Soundchip Realtek ALC897
