-29%

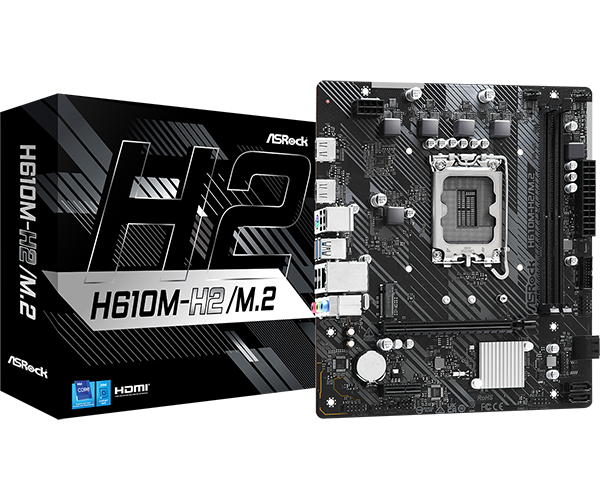

MBO ASROCK H610M-H2/M.2

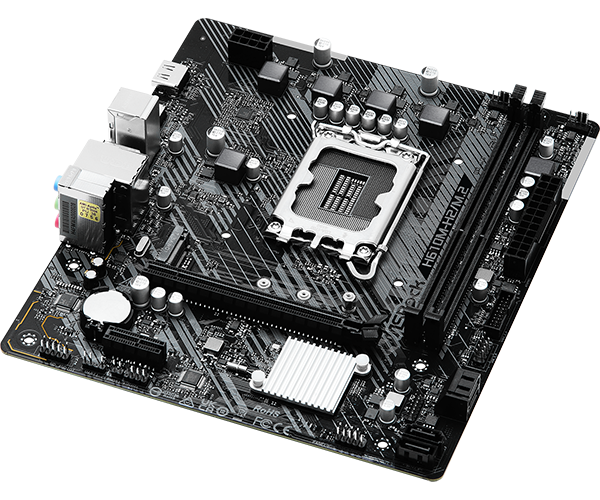

MBO ASROCK H610M-H2/M.2 - Figura 2
MBO ASROCK H610M-H2/M.2 - Figura 3
,

MBO ASROCK H610M-H2/M.2

Gjendja:

Ka stok
Lista Dëshirave
Krahëso

MBO ASROCK H610M-H2/M.2

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 3+1+1 Phase Power Design
  • 2 x DDR4 DIMMs
    Supports Dual Channel, up to 3200
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer

8,500 L 12,000 L

Ka stok

MBO ASROCK H610M-H2/M.2

  • Rock-Solid Durability
    – 3+1+1 Power Phase
    EZ Update
    – ASRock Auto Driver Installer
  • CPU
    – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    – Intel® H610
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 2 x DDR4 DIMM Slots
    – Supports DDR4 non-ECC, un-buffered memory up to 3200
    – Supports ECC UDIMM memory modules (operate in non-ECC mode)
    – Max. capacity of system memory: 64GB
    – Supports Intel® Extreme Memory Profile (XMP) 2.0
  • BIOS
    – 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    – Intel® Xe Graphics Architecture (Gen 12)
    – 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – Realtek 8111H
  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x PCIe 3.0 x1 Slot (PCIE2)*

    * Supports NVMe SSD as boot disks
  • Storage
    Chipset:
    – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    * Supports NVMe SSD as boot disks
  • USB
    – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
    – 6 x USB 2.0 (4 Rear, 2 Front)

    * All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    * CPU_FAN1 supports the fan power up to 1A (12W).
    ** CHA_FAN1/WP supports the fan power up to 2A (24W).
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    – 1 x PS/2 Mouse/Keyboard Port
    – 2 x HDMI Ports
    – 2 x USB 3.2 Gen1 Type-A Ports
    – 4 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Form Factor
    – Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
  • OS
    – Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
Kategori: ,
