MBO ASROCK Z890 PRO-A

  • Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
  • 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
  • 4 x DDR5 DIMMs
    Supports Dual Channel, up to 9066+ (OC)
  • 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
    1 Blazing M.2 (PCIe Gen5x4)
    2 Hyper M.2 (PCIe Gen4x4)
    1 Hyper M.2 (PCIe Gen4x4 & SATA3)
  • 1 Thunderbolt™ 4 Type-C (Rear)
    2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
    1 USB 3.2 Gen2 Type-A (Rear),
    6 USB 3.2 Gen1 (2 Rear, 4 Front),
    8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN
  • Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance

25,000 L

Ka stok

MBO ASROCK Z890 PRO-A

Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Extreme Memory Overclocking

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

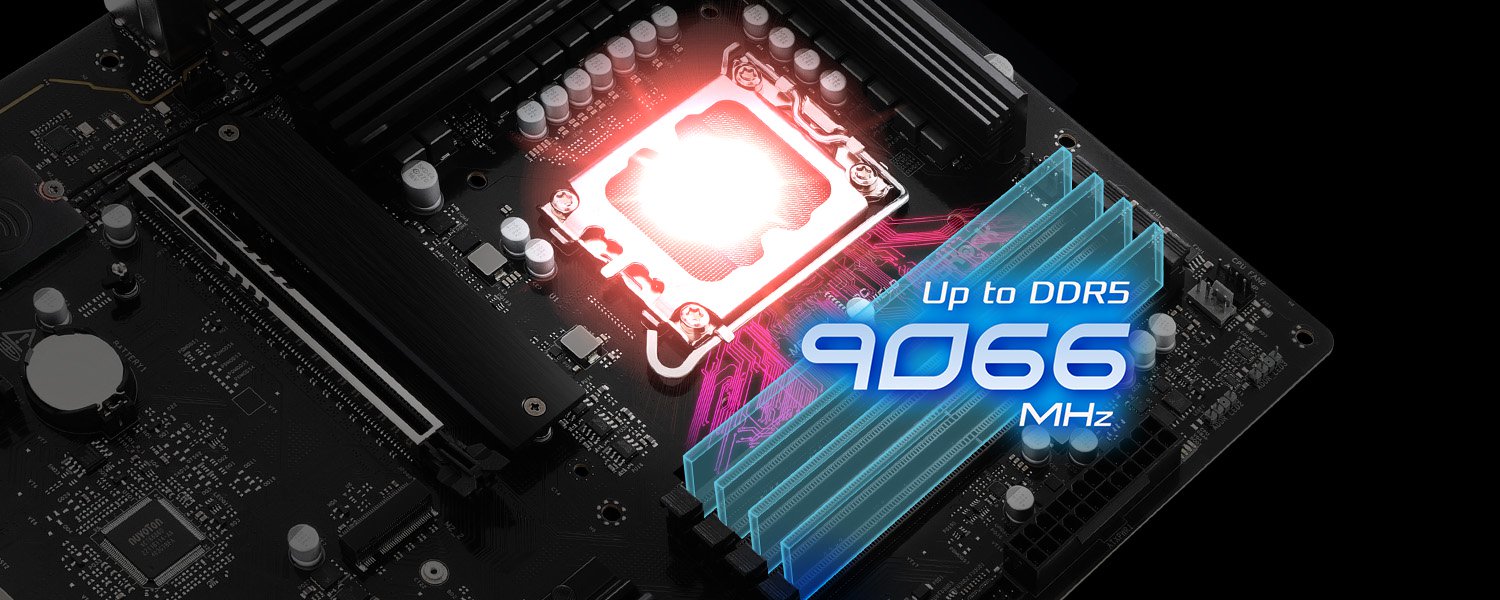

DDR5 XMP & EXPO Support

DIY Friendly Design

M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
Cooling

Intelligent Cooling Design

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Connectivity

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Please refer to Intel® “What is Thunderbolt 4” page for more detail.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Stylish Design

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
DIY Friendly

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

EZ Setting

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer

step2 : Update drivers needed

step3 : Done!



MBO ASROCK Z890 PRO-A



  • Superb Productivity
    – PCIe Gen5 (Graphics, M.2)
    – Dual Channel DDR5
    – Thunderbolt™ 4 Type-C Port (40 Gb/s)
    Rock-Solid Durability
    – 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
    – Memory OC Shield
    Ultrafast Connectivity
    – 2.5G LAN
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU
    – Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
    – Supports Intel® Thermal Velocity Boost (TVB)
    – Supports Intel® Adaptive Boost Technology (ABT)
    – Integrated NPU for dedicated AI acceleration
  • Chipset
    – Intel® Z890
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 4 x DDR5 DIMM Slots
    – Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
    – Supports Clocked Unbuffered DIMM (CUDIMM)
    – Max. capacity of system memory: 256GB
    – Supports Intel® Extreme Memory Profile (XMP) 3.0x

    *1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
    1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
    2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
    2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    – Intel® Xe LPG Graphics Architecture
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    – 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    Supports two 4K displays or one 8K display
    Only the CPU’s embedded graphics can be displayed through Thunderbolt™ ports.
    If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supports Dragon 2.5G LAN Software
    – Smart Auto Adjust Bandwidth Control
    – Visual User Friendly UI
    – Visual Network Usage Statistics
    – Optimized Default Setting for Game, Browser, and Streaming Modes
    – User Customized Priority Control
  • Slots
    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
    – 1 x PCIe 4.0 x1 Slot (PCIE2)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
    Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    – 4 x SATA3 6.0 Gb/s Connectors

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB
    CPU:
    – 1 x Thunderbolt™ 4 Type-C (Rear)
    – 1 x USB 3.2 Gen2x2 Type-C (Rear)
    Chipset:
    – 1 x USB 3.2 Gen2x2 Type-C (Front)
    – 1 x USB 3.2 Gen2 Type-A (Rear)
    – 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
    – 8 x USB 2.0 (4 Rear, 4 Front)

    * All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
    – 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 1 x 24 pin ATX Power Connector
    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    – 2 x Antenna Mounting Points
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
    – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    – 2 x USB 3.2 Gen1 Ports
    – 4 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone

    * Supports USB PD 3.0 up to 5V@3A (15W) charging
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)
    – ASRock Dragon 2.5G LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x I/O Shield
    – 2 x SATA Data Cables
    – 1 x Screw for M.2 Socket
  • Form Factor
    – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    – 2oz Copper PCB
  • OS
    – Microsoft Windows® 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
