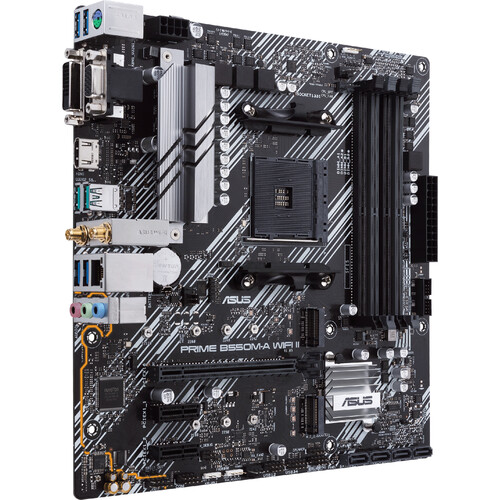

MBO ASUS PRIME B550M-A WIFI

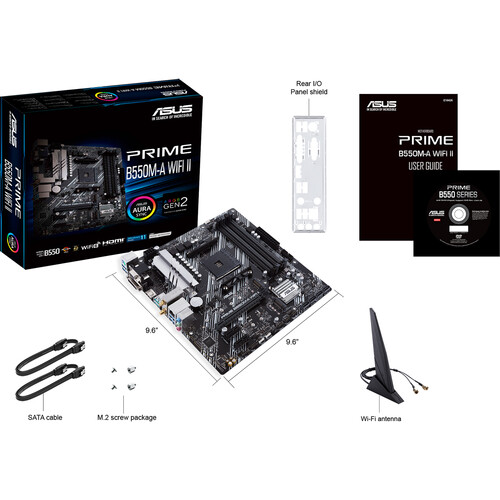

MBO ASUS PRIME B550M-A WIFI - Figura 2

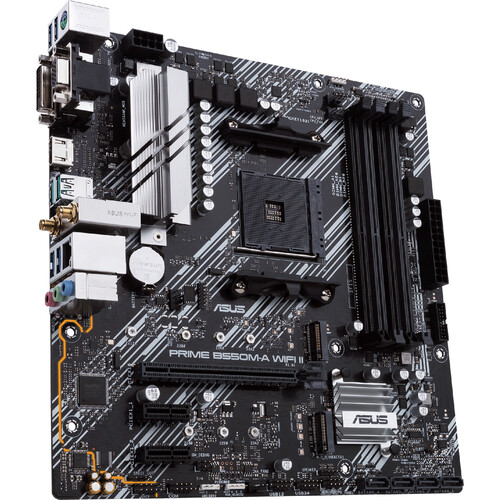

MBO ASUS PRIME B550M-A WIFI - Figura 3

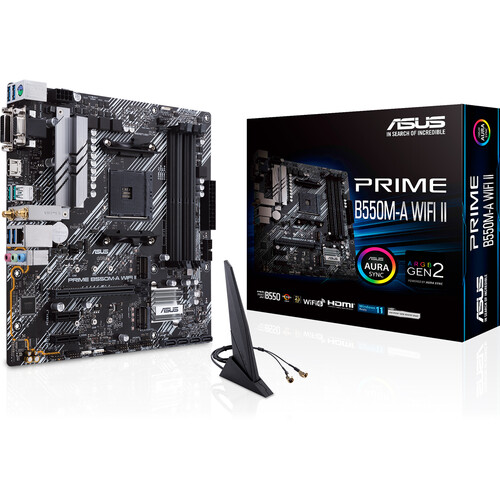

MBO ASUS PRIME B550M-A WIFI - Figura 4
,

MBO ASUS PRIME B550M-A WIFI

Gjendja:

S’ka stok
Lista Dëshirave

MBO ASUS PRIME B550M-A WIFI

  • Micro-ATX Form Factor
  • AMD B550 Chipset
  • AM4 Socket
  • 4 x Dual-Channel DDR4-4866 (OC)
  • 4 x SATA III | 2 x M.2
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 Slots
  • 2 x PCIe 3.0 x1 Slot
  • Gigabit LAN Port
  • Wi-Fi 6 (802.11ax) | Bluetooth 5.2
  • Supports Windows 11 (64-Bit)

17,000 L

S’ka stok

MBO ASUS PRIME B550M-A WIFI

  • Micro-ATX Form Factor
  • AMD B550 Chipset
  • AM4 Socket
  • 4 x Dual-Channel DDR4-4866 (OC)
  • 4 x SATA III | 2 x M.2
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 Slots
  • 2 x PCIe 3.0 x1 Slot
  • Gigabit LAN Port
  • Wi-Fi 6 (802.11ax) | Bluetooth 5.2
  • Supports Windows 11 (64-Bit)
Chipset
AMD B550
CPU Socket
AM4
Memory Slots
4x 288-Pin
Memory Support
DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800, 4866 MT/s
Storage Slots
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 3.0 x16
2x PCIe 3.0 x1
Wi-Fi
Wi-Fi 6 (802.11ax) with MU-MIMO Support
Form Factor
Micro-ATX
CPU
Chipset
AMD B550
CPU Socket
AM4
Back Panel I/O
USB
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt
No
Display
1x DVI-D
1x HDMI
1x VGA
Audio
3x 1/8″ / 3.5 mm
Ethernet / Controller
1x Gigabit
PS/2
1x Combo
Buttons
BIOS Flashback, Clear CMOS
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 4800, 4866 MT/s
Maximum Capacity
128 GB
Channel Architecture
Dual Channel
Storage Expansion
SATA
4x SATA III
Storage Slots
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Optane Memory Support
No
RAID Support
RAID 0, 1, 10
Internal I/O
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 3.0 x16
2x PCIe 3.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
2x 4-Pin CPU
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin ATX
Security
TPM Header
LED Header
2x RGB
Audio
1x S/PDIF
1x Speaker
Diagnostics
Clear CMOS, Flash BIOS
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek (7.1-Channel)
Wireless
Wi-Fi
Wi-Fi 6 (802.11ax) with MU-MIMO Support
Bluetooth
5.2
Software
OS Compatibility
Windows 10 to 11 (64-Bit Only)
Physical
Form Factor
Micro-ATX
Dimensions
9.6 x 9.6″ / 24.4 x 24.4 cm
