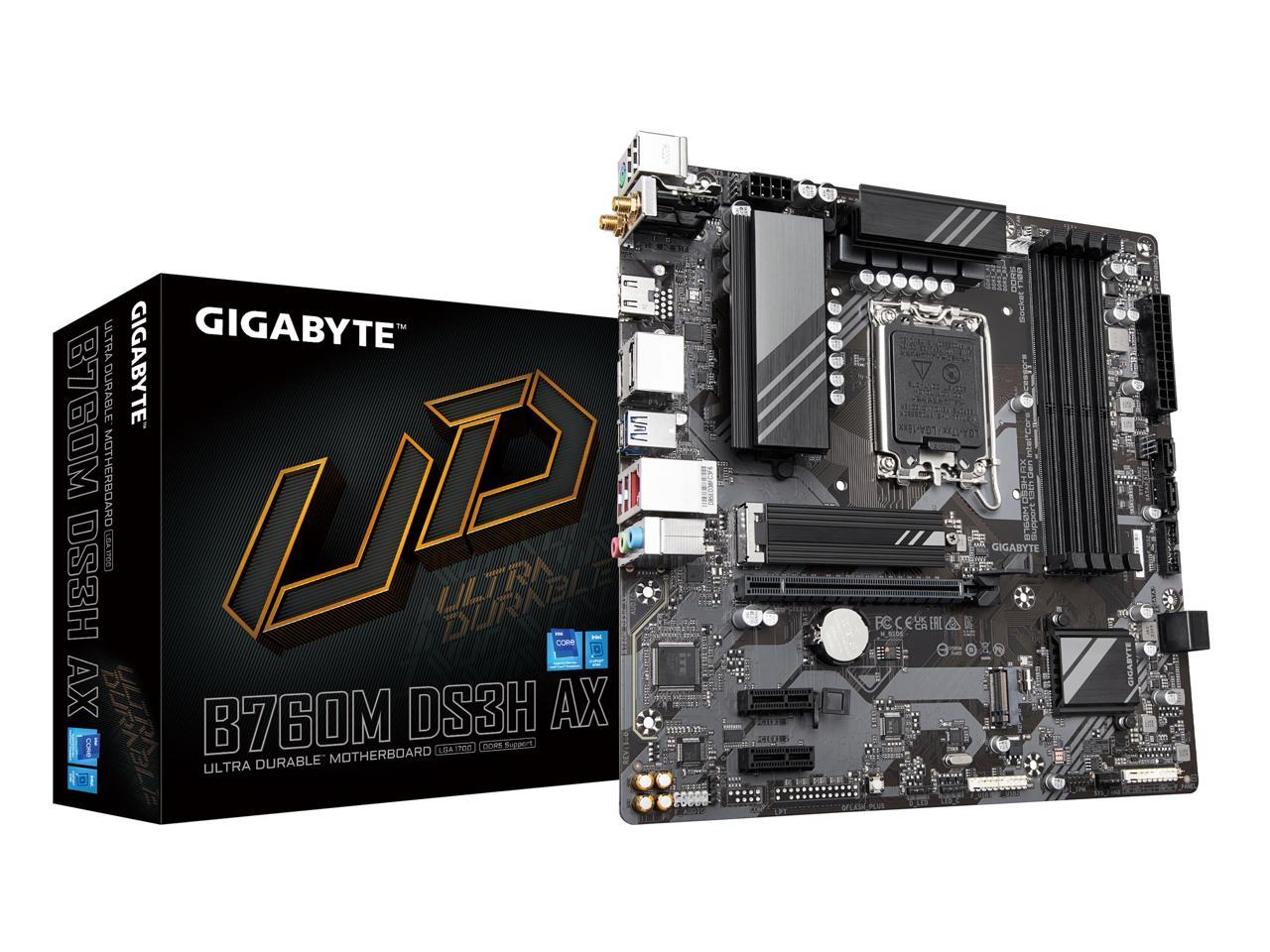

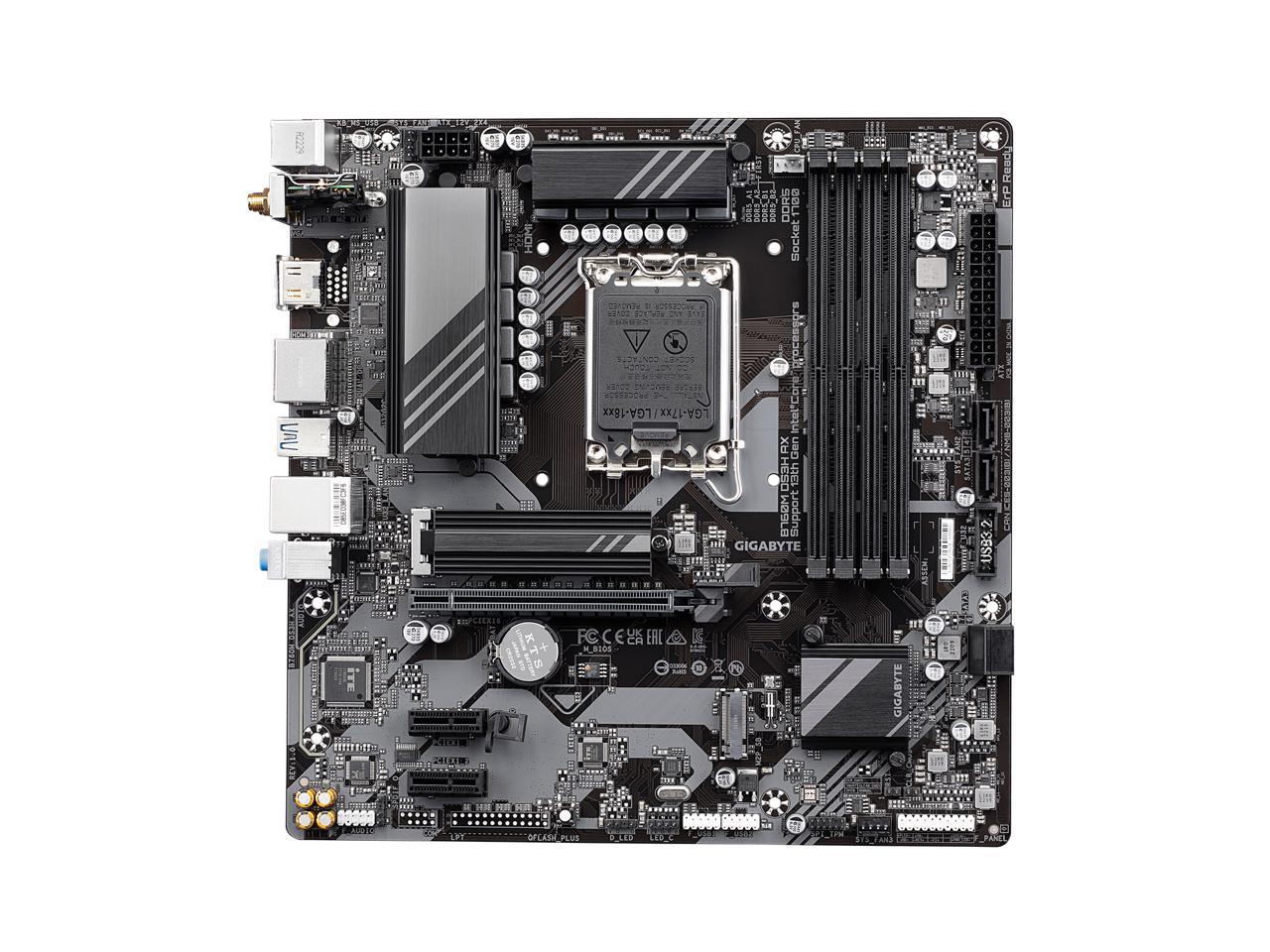

MBO B760M DS3H AX DDR5 GIGABYTE

Gjendja:

Ka stok


MBO B760M DS3H AX DDR5 GIGABYTE

  • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
  • DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
  • Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
  • Comprehensive Thermal Design: M.2 Thermal Guard
  • Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
  • Fast Networking: 2.5GbE LAN, WiFi 6E
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

19,500 L

Ka stok

MBO B760M DS3H AX DDR5 GIGABYTE

  • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
  • DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
  • Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
  • Comprehensive Thermal Design: M.2 Thermal Guard
  • Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
  • Fast Networking: 2.5GbE LAN, WiFi 6E
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips,
  • Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Model
Brand GIGABYTE
Model B760M DS3H AX
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset  Intel B760

MBO B760M DS3H AX DDR5 GIGABYTE



Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Memory Feature 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek Audio CODEC
High Definition Audio
Audio Channels  2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software.

To configure 7.1-channel audio, access the audio software for audio settings.

Onboard LAN
LAN Chipset Realtek 2.5GbE LAN chip
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
Bluetooth Yes
Rear Panel Ports
Back I/O Ports 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header

(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 24.4cm x 24.4cm
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11 Supported

MBO B760M DS3H AX DDR5 GIGABYTE

Features
Features Unique Features:
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.

Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
