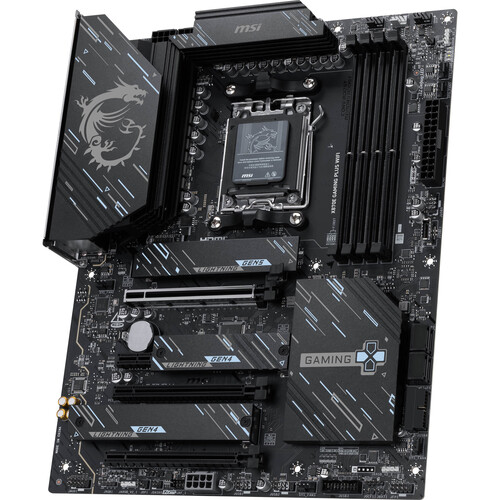

MBO MSI X870E GAMING PLUS WIFI

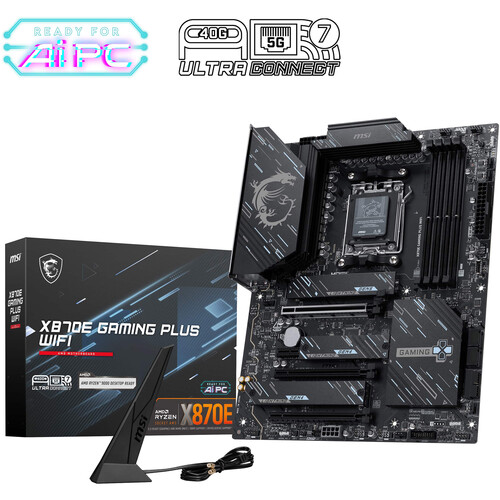

MBO MSI X870E GAMING PLUS WIFI - Figura 2
,

MBO MSI X870E GAMING PLUS WIFI

Gjendja:

Ka stok
Lista Dëshirave

MBO MSI X870E GAMING PLUS WIFI

  • ATX Form Factor
  • AMD X870E Chipset
  • AM5 Socket
  • 4 x Dual-Channel DDR5-8200 (OC)
  • 4 x SATA III | 3 x M.2
  • PCIe 5.0 x16 | PCIe 4.0 x4
  • Realtek 7.1-Channel Surround Sound
  • Wi-Fi 7 | Bluetooth 5.4 | 5GbE LAN
  • 40, 20, 10, and 5 Gb/s USB Ports

35,000 L

Ka stok

MBO MSI X870E GAMING PLUS WIFI

Chipset
AMD X870E
CPU Socket
AM5
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 5600, 8200 MT/s
Storage Slots
3x M.2 (M Key) 2260, 2280, 22110
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 3.0 x1
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor
ATX
CPU
Chipset
AMD X870E
CPU Socket
AM5
Back Panel I/O
USB
1x USB-C (USB4)
1x USB-C (USB 3.2 Gen 2×2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI
Audio
3x 1/8″ / 3.5 mm
Ethernet / Controller
1x 5GbE
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback, Clear CMOS
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 5600, 8200 MT/s
Maximum Capacity
256 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
3x M.2 (M Key) 2260, 2280, 22110
Optane Memory Support
No
RAID Support
RAID 0, 1, 5 (M.2)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 3.0 x1
USB
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
3x USB 2.0 Header (Supports 6 USB-A Port)
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling
1x 4-Pin CPU
6x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin ATX
2x 12V-2X6 (12VHPWR)
Security
Chassis Intrusion, TPM Module
LED Header
9x RGB
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.1/3.2 Gen 2
Audio
Audio Codec
Realtek ALC897 (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth
5.4
Software
OS Compatibility
Windows 11 (64-Bit Only)
Physical
Form Factor
ATX
Dimensions
9.6 x 12″ / 243.8 x 304.8 mm
Packaging Info
Package Weight
4.45 lb
Box Dimensions (LxWxH)
13.5 x 10.6 x 2.8″
