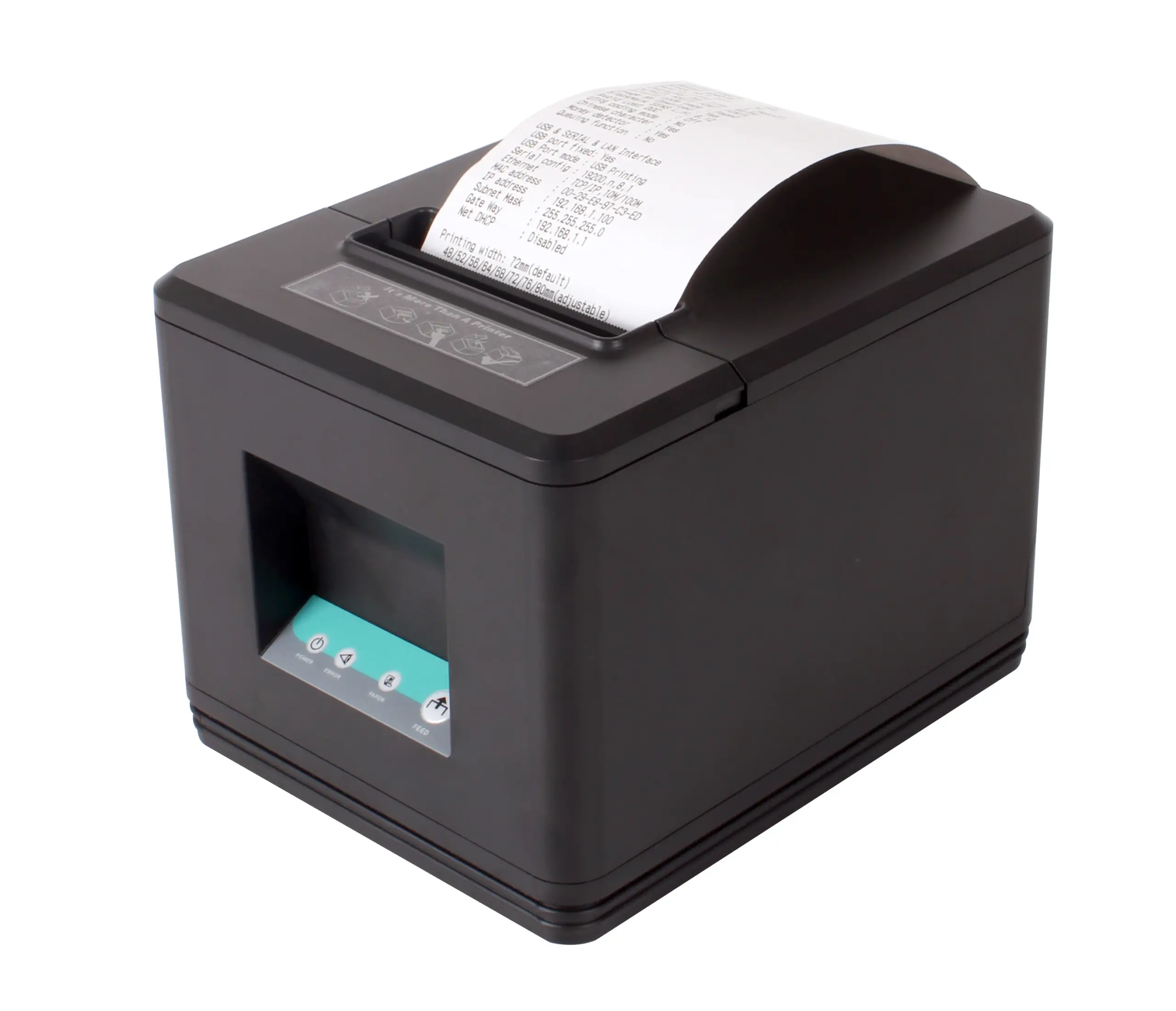

PRINTER TERMIK 80MM OCOM OCPP-80T

PRINTER TERMIK 80MM OCOM OCPP-80T

Gjendja:

Ka stok
  • Support 8 kinds abundant interface combination;
  • Supports multi 1D barcode and QR code printing;
  • Support printer status monitoring function;
  • 100M Ethernet port, ultra high speed data transmission;
  • 256KB NV Logo storage and 256kb big buffer memory;
  • Compatible with OPOS/JPOS driver;
  • 100KM long life printer head.

6,000 L

Ka stok

PRINTER TERMIK 80MM OCOM OCPP-80T

Features:

Support 8 kinds abundant interface combination;

Supports multi 1D barcode and QR code printing;

Support printer status monitoring function;

100M Ethernet port, ultra high speed data transmission;

256KB NV Logo storage and 256kb big buffer memory;

Compatible with OPOS/JPOS driver;

100KM long life printer head.



Technical parameters：

Print Method Direct Thermal
Command ESC/POS
Resolution 576dots/line or 512dots/line
Printing Width Max=72mm
Paper Type Thermal Receipt Paper
Interface USB/UL/U+BT/ U+WIFI
Print Speed 200 mm/s （U）

260 mm/s (UL)
Paper Width 80mm
Paper Thickness 0.06~0.08mm
Roll Dia Max. Ø 83 mm
Paper Cut Manual tear and Auto-cutter
Input buffer 256kbytes
NV Flash 256kbytes
Font Size font A:12*24(standard),  font B:9*17
Chinese GB18030,BIG5 24x24dots
Japanese/Korea Support
User-defined language PC347(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),

PC858,IranII,Latvian,Arabic,PT151(1251)  ect.
1D  UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
2D QR code
Printing head life 100 KM
Cutter life 1million
Paper separator Optional
Sensors Paper out, cover open, cutter jam,paper jam and black mark detection(Optional)
Input AC 100V-240V 50/60HZ
Output DC 24V/2.5A
Working Condition 0°C~45°C, 10%~80%RH
Storage Condition -10°C-60°C,10%~90%RH
Accessories Data cable,power adaptor,power code,paper roller,CD,manual, (standard)

Paper separator(option)
Dimensions 180(D)x142(W)x136(H)mm
Net weight 1.14kg
Gross weight 1.8kg
Driver Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
SDK Android, IOS
