-17%
,

PSU 1000W GIGABYTE UD1000GM PG5 2.0

Availability:

Ka stok
Lista Dëshirave
Krahëso

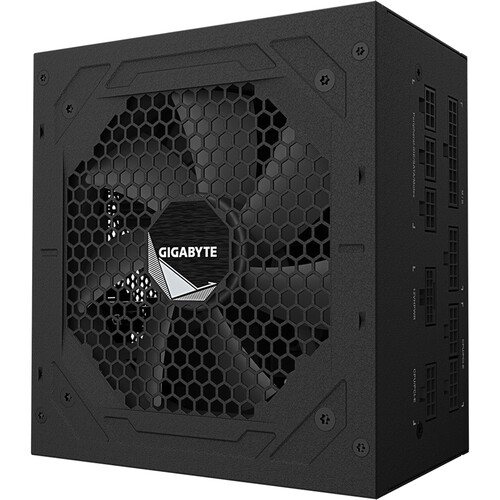

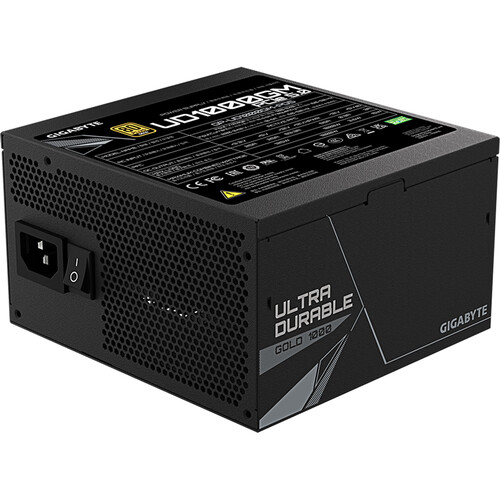

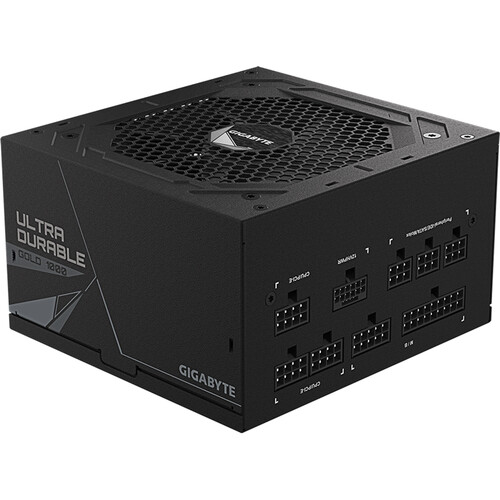

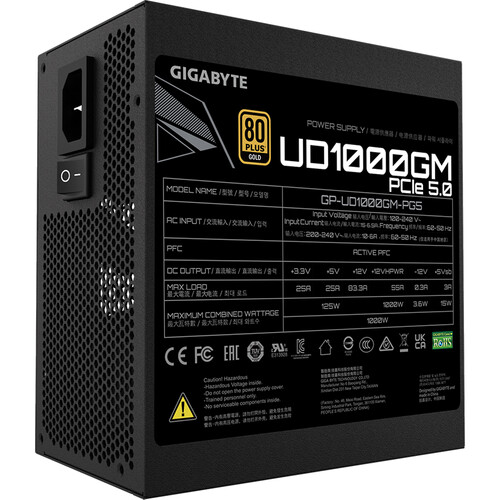

PSU 1000W GIGABYTE UD1000GM PG5 2.0

  • 1000W Single +12V Rail

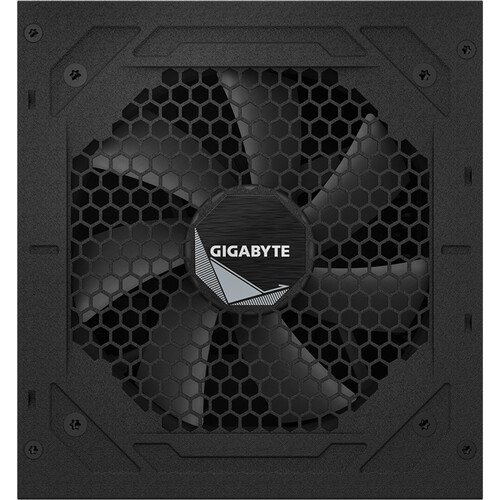

  • 120mm Cooling Fan
  • Intel ATX12V 3.0
  • 5 x PCIe Connectors
  • 8 x SATA Connectors
  • 3 4-Pin Connectors
  • Floppy Connector
  • Modular Design & Flat Cables

22,000 L 26,500 L

Ka stok

PSU 1000W GIGABYTE UD1000GM PG5 2.0

Gigabyte GP-UD1000GM PG5 REV2.0 Specs

Connectivity

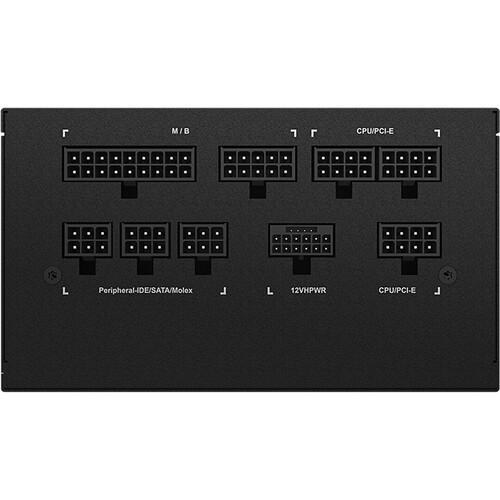

Total Connectors 1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
1 x 16-Pin PCIe (12VHPWR)
4 x 6+2-Pin PCIe
8 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
Cable Design Flat, Modular
PCIe Connector Distances 27.6″ / 700 mm
23.6″ / 600 mm
5.9″ / 150 mm
SATA Connector Distances 23.6″ / 600 mm
5.9″ / 150 mm
5.9″ / 150 mm
5.9″ / 150 mm
Peripheral Connector Distances 19.7″ / 500 mm
4.7″ / 120 mm
4.7″ / 120 mm
Floppy Connector Distances 5.9″ / 150 mm
ATX Connector Distance 24″ / 610 mm
EPS Connector Distances 23.6″ / 600 mm
7.9″ / 200 mm
Electrical
Total Wattage 1000 W
Number of +12 V Rails 1
Combined Power for +12 V 1000 W
Max Load for +12 V 83.3 A
Combined Power for +3.3/+5 V 125 W
Max Load for +3.3 V 25 A
Max Load for +5 V 25 A
Max Power for +5 Vsb 15 W
Max Load for +5 Vsb 3 A
Max Power for -12 V 3.6 W
Max Load for -12 V 0.3 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 6.5 to 15 A
General
Efficiency Rating 80 PLUS Gold
Active Power Factor Correction Yes
Efficiency 90% at 50% Load
Hold up Time 16 ms
Power-Good Signal 100 to 150 ms
Cooling
Fan Size 120 mm
Bearing Type Hydraulic
Physical
Form Factor ATX
Compliance ATX 12 V v3.0
Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Mean Time Between Failures (MTBF) 100,000 Hours
Dimensions 5.9 x 5.5 x 3.4″ / 150 x 140 x 86 mm
Packaging Info
Package Weight 6.3 lb
Box Dimensions (LxWxH) 11.1 x 8.6 x 4.7″
