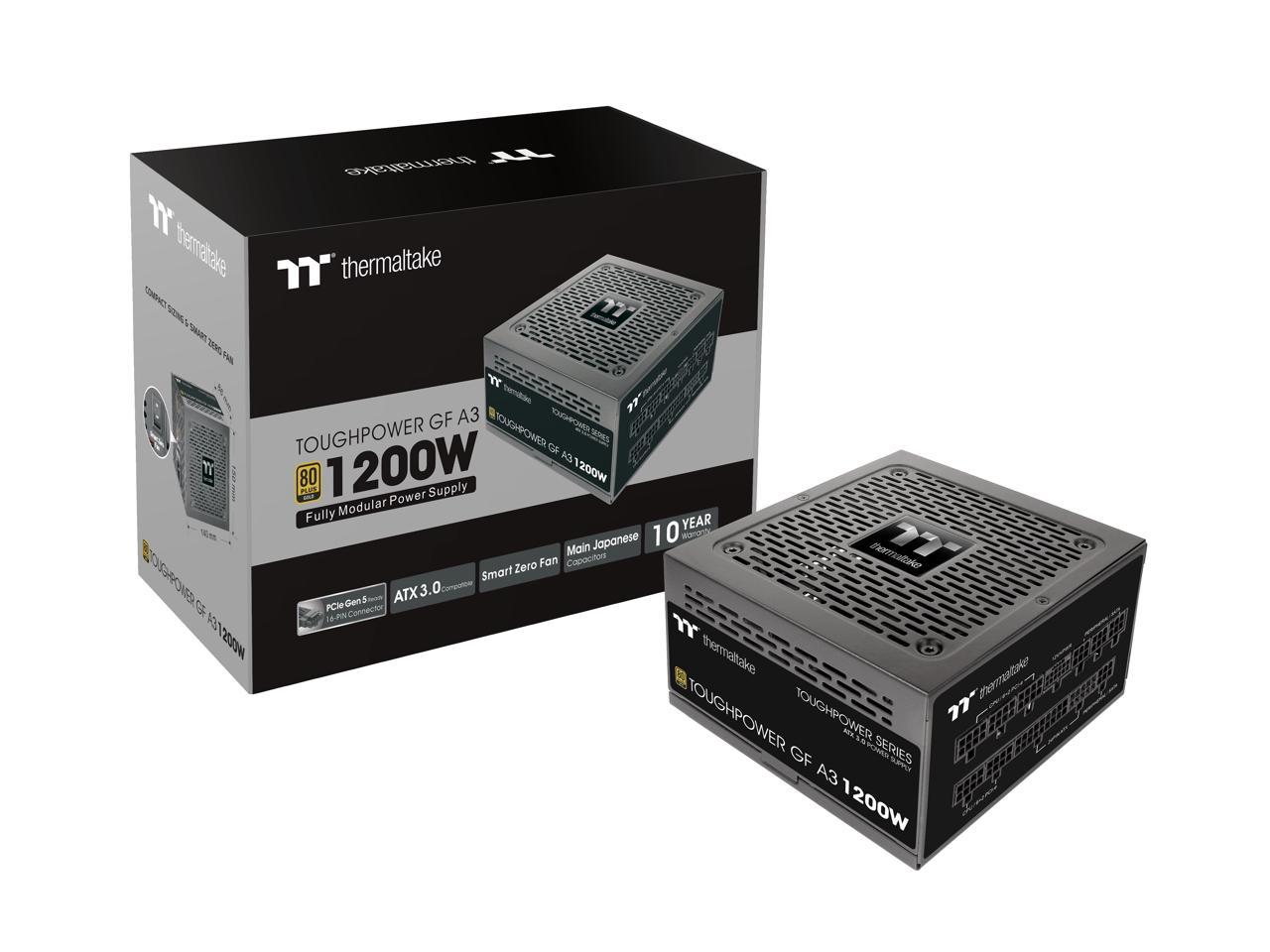

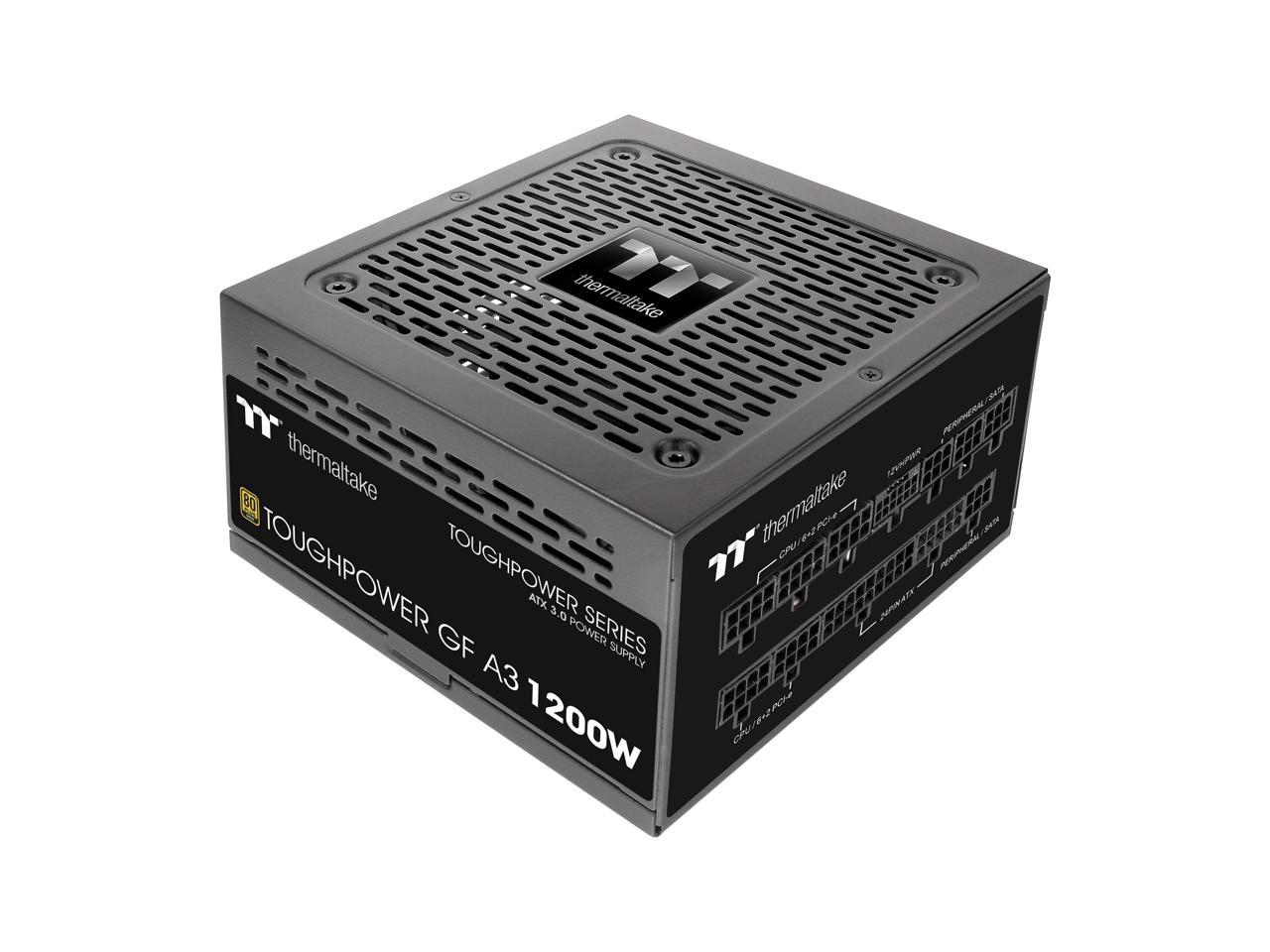

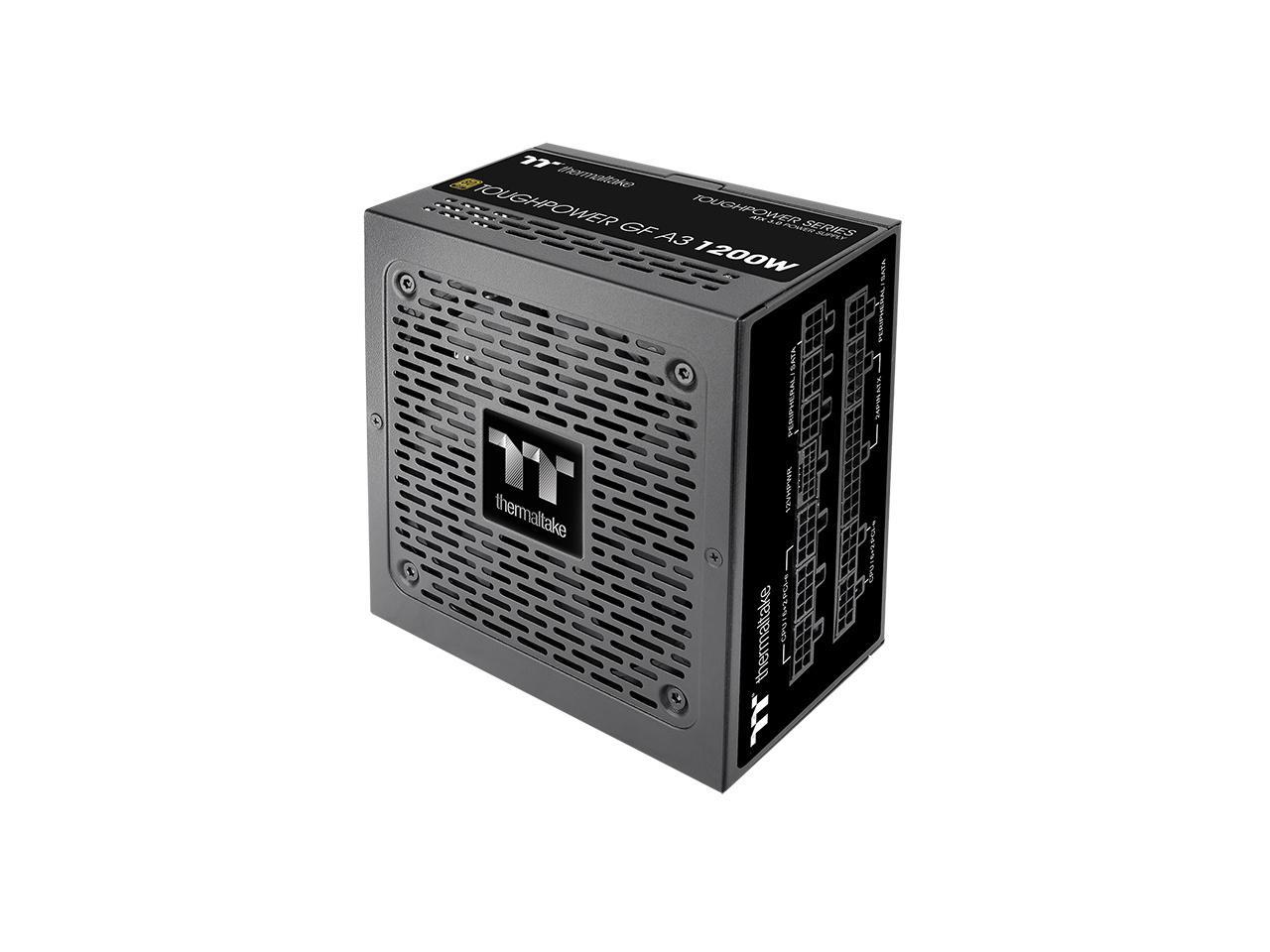

PSU 1200W 80+ GOLD THERMALTAKE TOUGHPOWER GF A3 GEN 5

Availability:

Ka stok
Lista Dëshirave
Krahëso

PSU 1200W 80+ GOLD THERMALTAKE TOUGHPOWER GF A3 GEN 5

  • PCIe Gen 5 ready, designed with native PCIe 12+4pin modular interface.
  • Compatible with Intel ATX 3.0 specification, providing sufficient and stable power delivery
  • PCIe Gen.5 600W 12VHPWR cable included
  • 1200W continuous output at 45°C/113°F operating environment
  • High quality Japanese 105°C/221°F main capacitors
  • Fully modular with black low-profile flat cables
  • Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
  • High amperage single +12V rail design
  • Ultra-quiet 120mm fluid dynamic bearing fan

25,000 L

Ka stok

PSU 1200W 80+ GOLD THERMALTAKE TOUGHPOWER GF A3 GEN 5

  • PCIe Gen 5 ready, designed with native PCIe 12+4pin modular interface.
  • Compatible with Intel ATX 3.0 specification, providing sufficient and stable power delivery
  • PCIe Gen.5 600W 12VHPWR cable included
  • 1200W continuous output at 45°C/113°F operating environment
  • High quality Japanese 105°C/221°F main capacitors
  • Fully modular with black low-profile flat cables
  • Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
  • High amperage single +12V rail design
  • Ultra-quiet 120mm fluid dynamic bearing fan

PSU 1200W 80+ GOLD THERMALTAKE TOUGHPOWER GF A3 GEN 5

General
Brand Thermaltake
Series Toughpower GF A3 Series
Model PS-TPD-1200FNFAGU-L
Details
Color Black
Type ATX / ATX (ATX 3.0 Compatible)
Maximum Power  1200 W
Fans  1 x 120 mm Fluid Dynamic Bearing Fan
PFC  Active
Main Connector  24Pin
+12V Rails  Single
PCI-Express Connector  5 x 6+2-Pin
12VHPWR Support Wattage: 600W
SATA Power Connector  12
Haswell Support Yes
Max PSU Length 150 mm
Modular  Full Modular
Hold-up Time > 17msec
Energy-Efficient 80 PLUS GOLD Certified
Protection OVP / UVP / OCP / OPP / OTP / SCP
Input Voltage 100 – 240 V
Input Frequency Range 50/60 Hz
Input Current 20A-8A
Output +3.3V@20A; +5V@20A; +12V@100A; -12V@0.3A; +5VSB@3A
MTBF  >100,000 Hours
Approvals FCC/ICES/CB/cTUVus
Connectors 1 x Main Power Connector (24pin)
2 x ATX 12V / EPS 12V (8pin/4+4pin)
1 x PCIe 12VHPWR 600W (12+4pin)
5 x PCI-E (6+2pin)
12 x SATA (5pin)
4 x Peripheral (4pin)
1 x Floppy



Features
Features PCIe Gen 5 ready, designed with native PCIe 12+4pin modular interface.
Compatible with Intel ATX 3.0 specification, providing sufficient and stable power delivery
PCIe Gen.5 600W 12VHPWR cable included
1200W continuous output at 45°C/113°F operating environment
High quality Japanese 105°C/221°F main capacitors
Fully modular with black low-profile flat cables
Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
High amperage single +12V rail design
Ultra-quiet 120mm fluid dynamic bearing fan
