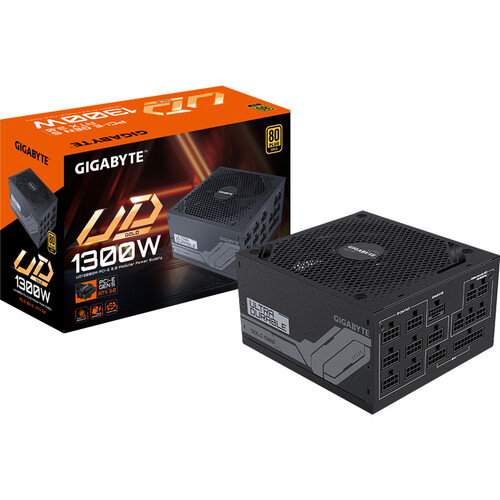

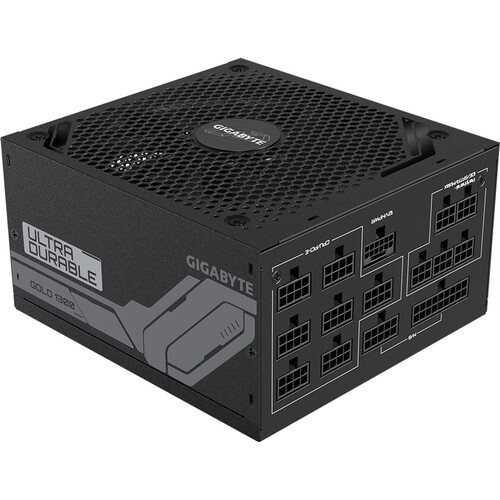

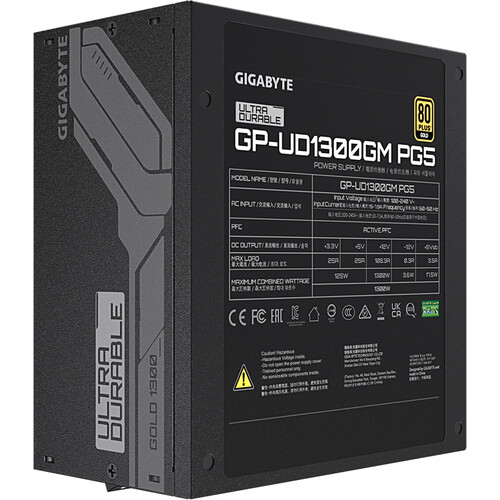

PSU 1300W 80+ GOLD GIGABYTE PG5
- 1300W Single +12V Rail
- 140mm Cooling Fan
- Intel ATX 12V Version 3.0
- 1 x PCIe 5.0 16-Pin Connector
- 8 x PCIe 6+2-Pin Connectors
- 12 x SATA Connectors
- Modular Cable Design
- 80 Plus Gold Efficiency Rating
- Yellow Tipped 16-Pin Connector
- Fluid Dynamic Bearing Fan
Key Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
1x 16-Pin PCIe (12VHPWR)
8x 6+2-Pin PCIe
12x 15-Pin SATA
6x 4-Pin Peripheral / Molex
2x 4-Pin Floppy
|
| Cable Design |
Modular
|
| Total Wattage |
1300 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
1x 16-Pin PCIe (12VHPWR)
8x 6+2-Pin PCIe
12x 15-Pin SATA
6x 4-Pin Peripheral / Molex
2x 4-Pin Floppy
|
| Cable Design |
Modular
|
| PCIe Connector Distances |
27.6″ / 700 mm
|
| SATA Connector Distances |
25.6″ / 650 mm
5.9″ / 150 mm
5.9″ / 150 mm
5.9″ / 150 mm
|
| Peripheral Connector Distances |
23.6″ / 600 mm
5.9″ / 150 mm
5.9″ / 150 mm
5.9″ / 150 mm
|
| ATX Connector Distance |
24″ / 610 mm
|
| EPS Connector Distances |
25.6″ / 650 mm
|
Electrical
| Total Wattage |
1300 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1300 W
|
| Max Load for +12 V |
108.3 A
|
| Combined Power for +3.3/+5 V |
125 W
|
| Max Load for +3.3 V |
25 A
|
| Max Load for +5 V |
25 A
|
| Max Power for +5 Vsb |
17.5 W
|
| Max Load for +5 Vsb |
3.5 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| Peak Power |
1300 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
No
|
| Efficiency |
87% at 100% Load
90% at 50% Load
87% at 20% Load
|
Cooling
| Fan Size |
140 mm
|
| Bearing Type |
Ball
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX 12 V v3.0
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Dimensions |
5.9 x 3.4 x 6.3″ / 150 x 86 x 160 mm
|
