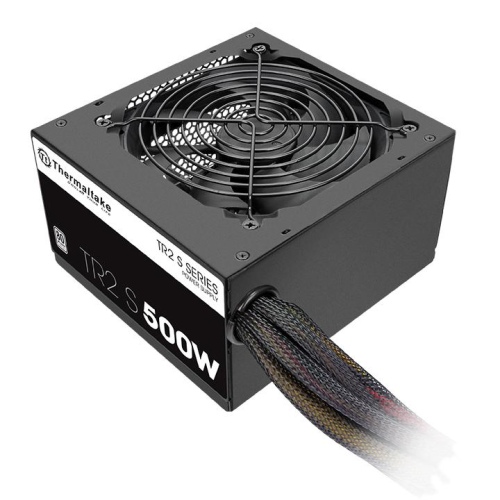

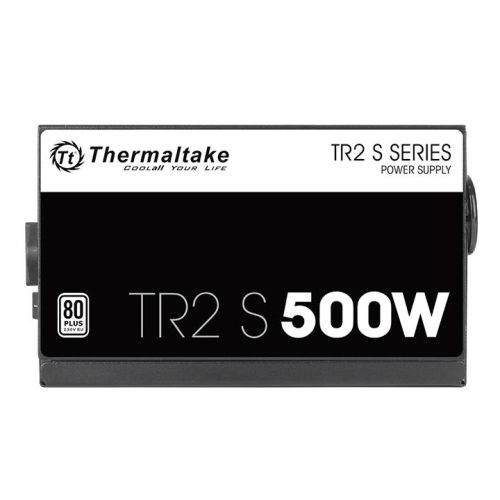

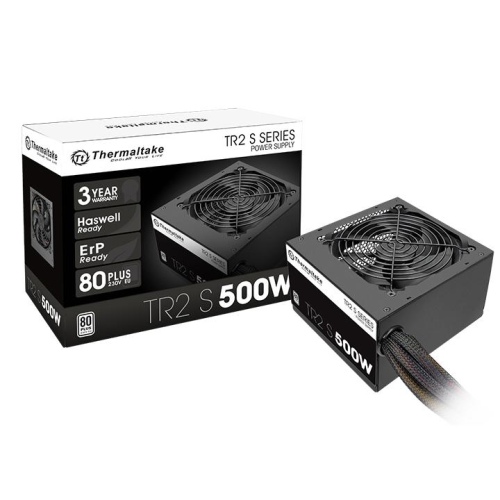

PSU 500W Thermaltake TR2 S

Gjendja:

Ka stok


PSU 500W Thermaltake TR2 S

  • TR2 S Series
  • TRS-0500P-2
  • 500W 80 PLUS®
  • Standard Certified APFC PSU

7,000 L

Ka stok

PSU 500W Thermaltake TR2 S

Thermaltake TR2 S 500W

Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet 120mm Fan

TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors

The cables used for TR2 S Series are all sleeved. TR2 S 500W connector’s specification as below:

80 PLUS 230V Standard Certified and Kaby Lake-Ready

TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed

High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output

TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:

AC INPUT

Input Voltage: 230V
Input Current: 8A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 20A 15A 35A 0.5A 2.5A
Max Output Power 100W 420W 6.0W 12.5W
Continuous Power 500W



P/N PS-TRS-0500NPCW**-2
WATTS 500W
RGB FAN No
FORM FACTOR ATX
MODEL TRS-500AH2NK
TYPE Intel ATX 12V 2.3
MAX. OUTPUT CAPACITY 500W
COLOR Black
DIMENSION ( W / H / D ) 86mm x 150mm x 140mm
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-500 msec
HOLD UP TIME 16msec (minimum) within 60% load
INPUT CURRENT 8A max
INPUT FREQUENCY RANGE 50 Hz – 60 Hz
INPUT VOLTAGE 230 Vac
OPERATING TEMPERATURE 5℃ to +40℃
OPERATING HUMIDITY 20% to 85%,non-condensing
STORAGE TEMPERATURE -40 ℃ to +55 ℃
STORAGE HUMIDITY 10% to 95%, non-condensing
COOLING SYSTEM 120mm Fan: 1800 R.P.M. ± 10%
EFFICIENCY 82-86% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/CB/TUV
PCI-E 6+2PIN PCI-E 6+2pin x 2
