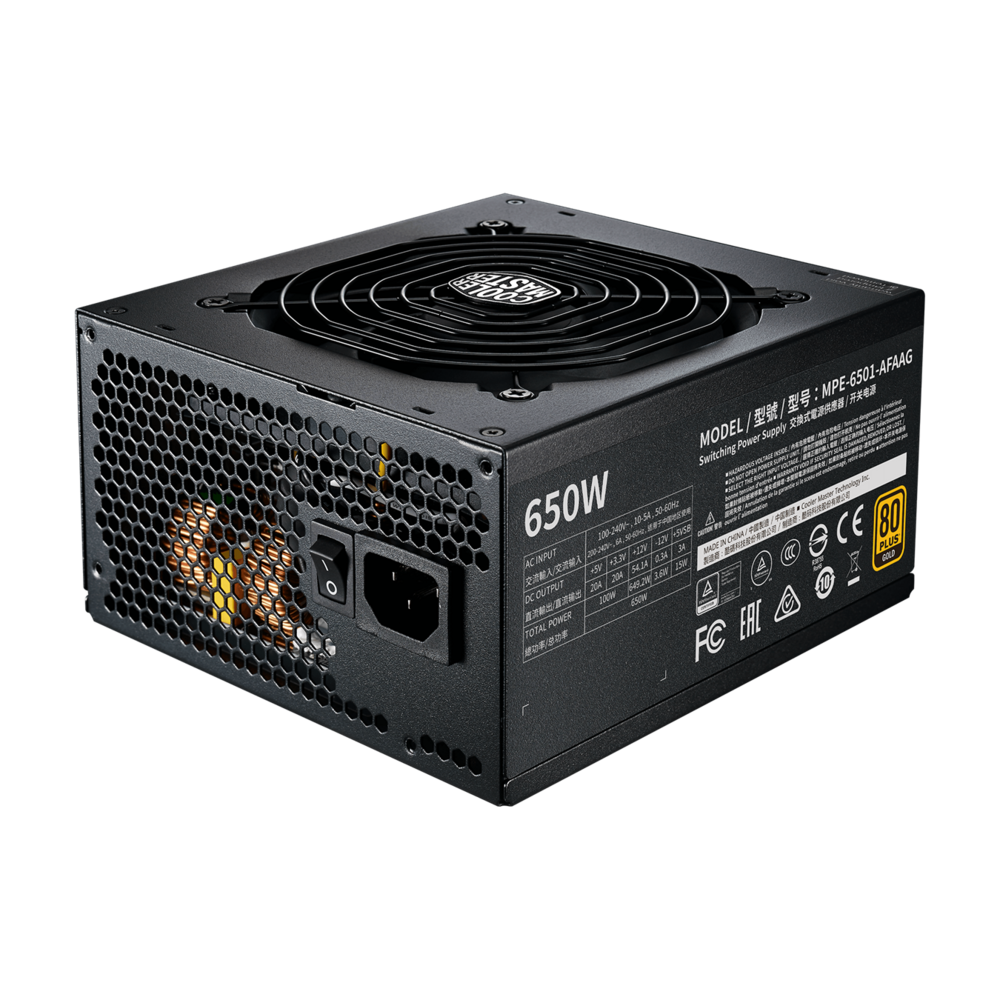

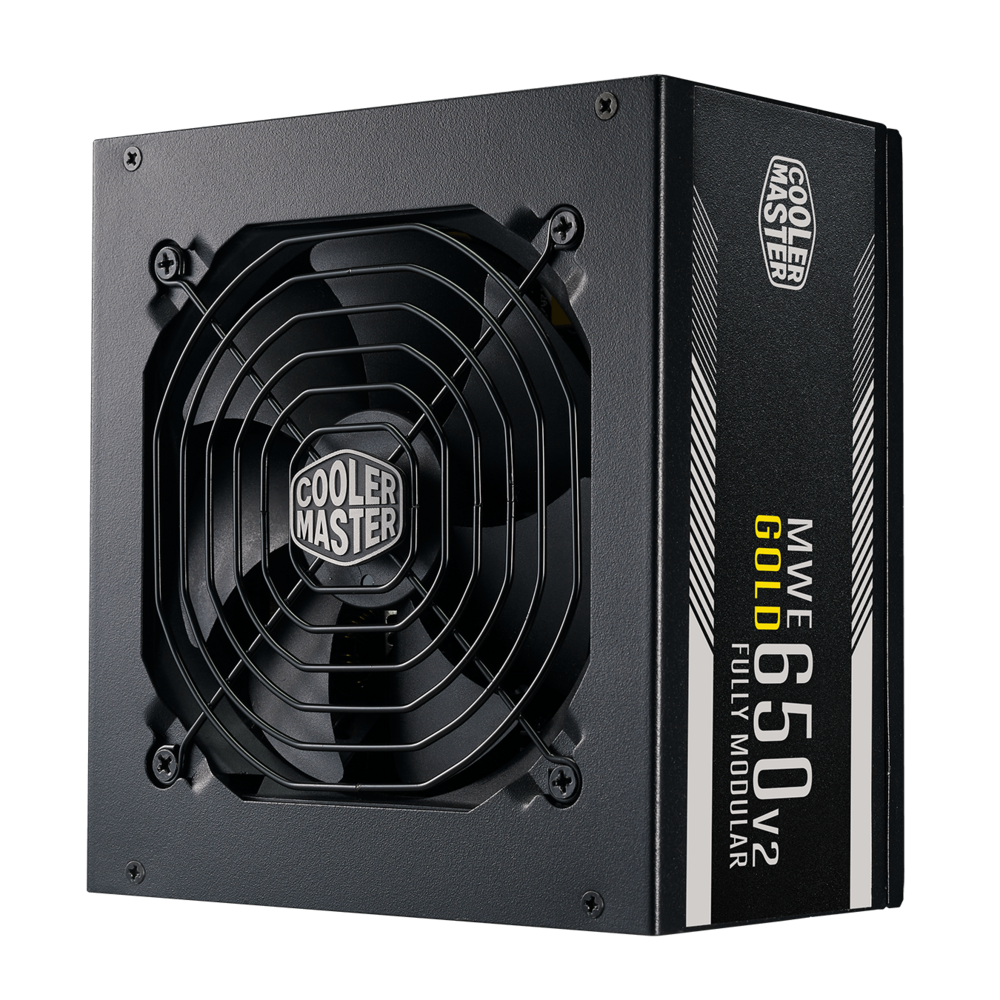

PSU 650W 80+ GOLD FULL MODULAR COOLERMASTER V2
- 80 Plus Gold Efficiency
- 2 EPS Connectors
- 120mm HDB Fan
- High Temperature Resilience
- Full Modular Cabling
POWER UP
The MWE Gold – V2 (Full Modular) is the next step in the evolution of Cooler Master’s entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold – V2 improves upon the original version in the places where users will see the most immediate benefit.
80 PLUS GOLD CERTIFIED
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold – V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.
2 EPS CONNECTORS
All MWE Gold – V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you’ll have enough connectors to use your ideal components.
QUIET COOLING
The MWE Gold – V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
PSU 650W 80+ GOLD FULL MODULAR COOLERMASTER V2
|
|
| ATX Version |
ATX 12V Ver. 2.41 |
|
|
|
|
|
|
|
|
|
| Dimensions (L x W x H) |
160 x 150 x 86 mm |
|
|
|
|
|
|
|
|
|
| Noise Level @ 50% |
17.9 dBA |
|
| Noise Level @ 100% |
23.4 dBA |
|
| Efficiency |
≥90% @ Typical Load |
|
| 80 PLUS Rating |
80 PLUS Gold |
|
|
|
| Operating Temperature |
0-50°C |
|
| Power Good Signal |
100 – 150 ms |
|
| Hold Up Time |
>16ms at 100% Load |
|
|
|
| Protections |
OVP, OPP, OTP, SCP, OCP, UVP |
|
| Regulatory |
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
|
|
|
|
|
|
|
|
|
| Peripheral 4 Pin Connectors |
4 |
|
| PCI-e 6+2 Pin Connectors |
4 |
|
|
|
|
|
|
|
|
|
