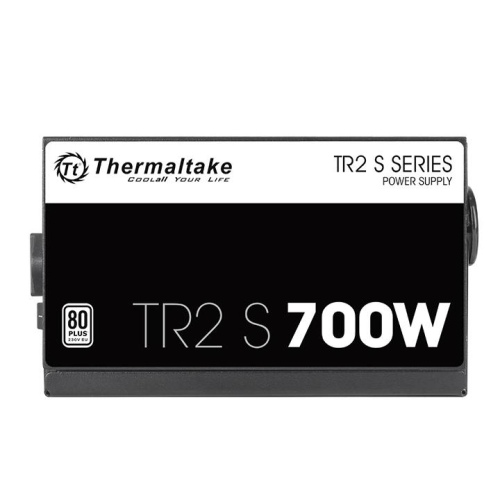

PSU 700W 80+Thermaltake TR2 S

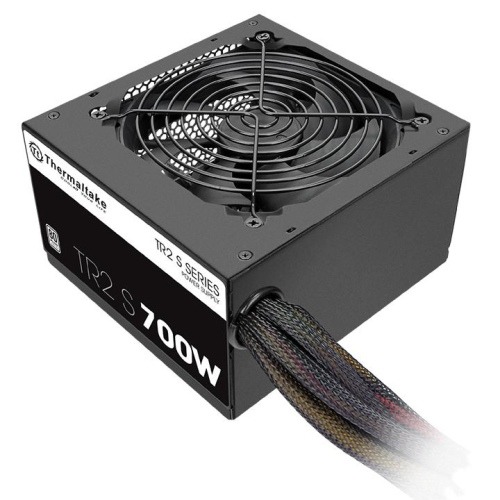

PSU 700W 80+Thermaltake TR2 S - Figura 2

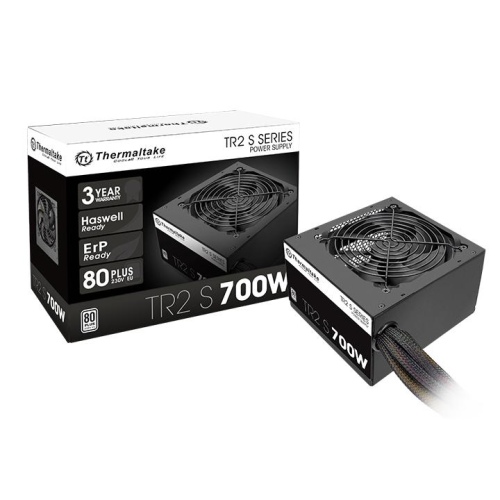

PSU 700W 80+Thermaltake TR2 S - Figura 3
,

PSU 700W 80+Thermaltake TR2 S

Gjendja:

Ka stok
Lista Dëshirave
Krahëso

PSU 700W 80+Thermaltake TR2 S

  • Power supply unit output 700 W
  • PCI-Express (6+2-Pin) 2x
  • Cable management No
  • 80 PLU

8,000 L

Ka stok

PSU 700W 80+Thermaltake TR2 S

Thermaltake TR2 S 700W

Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet 120mm Fan

TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors

The cables used for TR2 S Series are all sleeved. TR2 S 700W connector’s specification as below:

80 PLUS 230V Standard Certified and Kaby Lake-Ready

TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed

High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output

TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:

AC INPUT

Input Voltage: 230V
Input Current: 9A max
Frequency: 50Hz-60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 24A 17A 54A 0.5A 2.5A
Max Output Power 120W 648W 6.0W 12.5W
Continuous Power 700W

P/NPS-TRS-0700NPCWEU-2watts700WVentole RGBNoFattore FormaATXModelTRS-700AH2NK
Type

Intel ATX 12V 2.3

Max. Output Capacity700W
COLOREBlack
PFC (Power Factor Correction)

Active PFC

Power Good Signal

100-500 msec

Hold Up Time

16msec (minimum) within 60% load

Input Current9A max
Input Frequency Range

50 Hz – 60 Hz

Input Voltage

230 Vac

Operating Temperature5℃ to +40℃
Operating Humidity

20% to 85%,non-condensing

Storage Temperature

-40 ℃ to +55 ℃

Storage Humidity

10% to 95%, non-condensing

SISTEMA DI RAFFREDDAMENTO120mm Fan: 1800 R.P.M. ± 10%Efficiency82-86% efficiency @ 20-100% load
MTBF

100,000 hrs minimum

Safety Approval

CE/CB/TUV

PCI-E 6+2pin

PCI-E 6+2pin x 2
