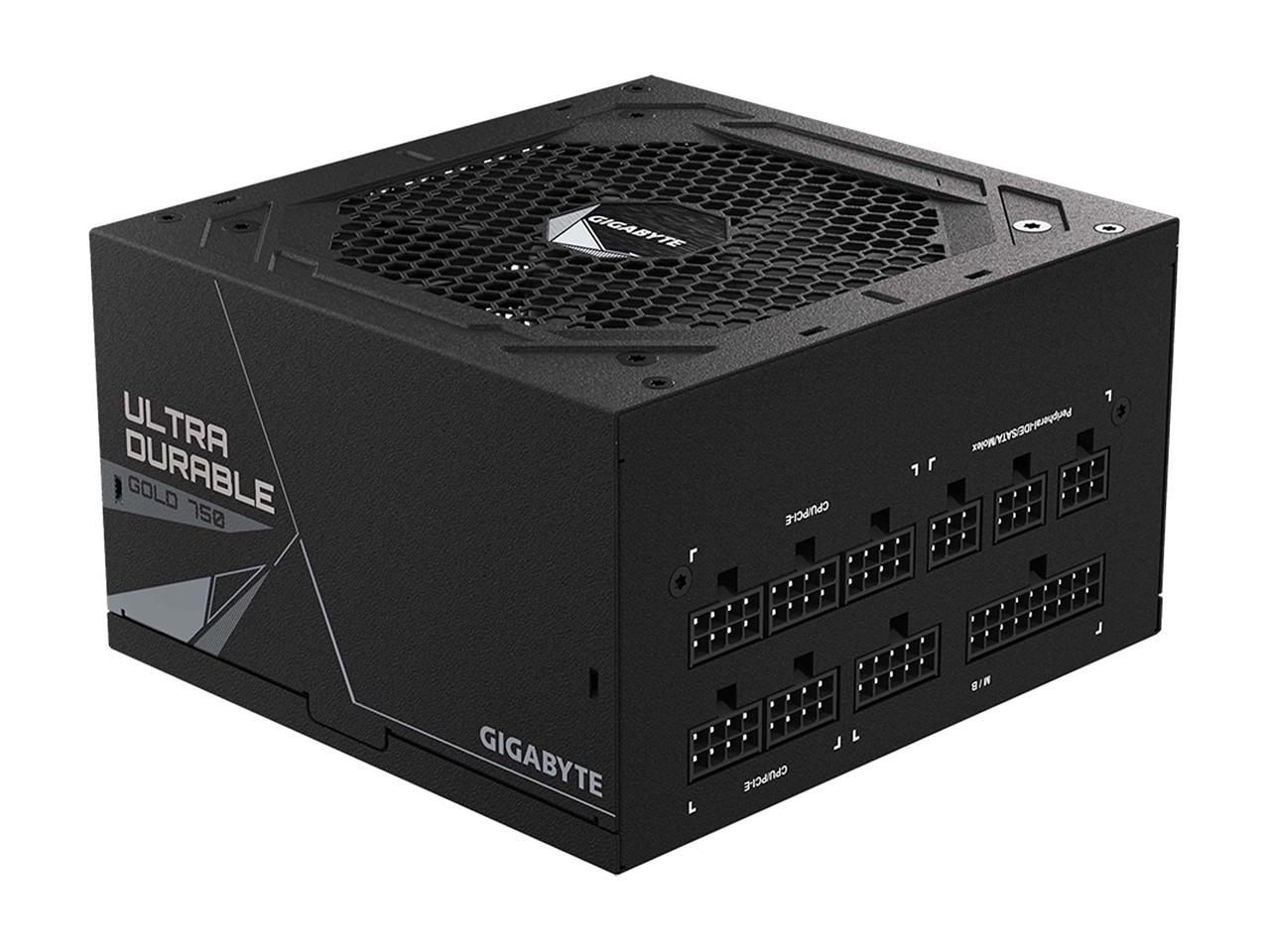

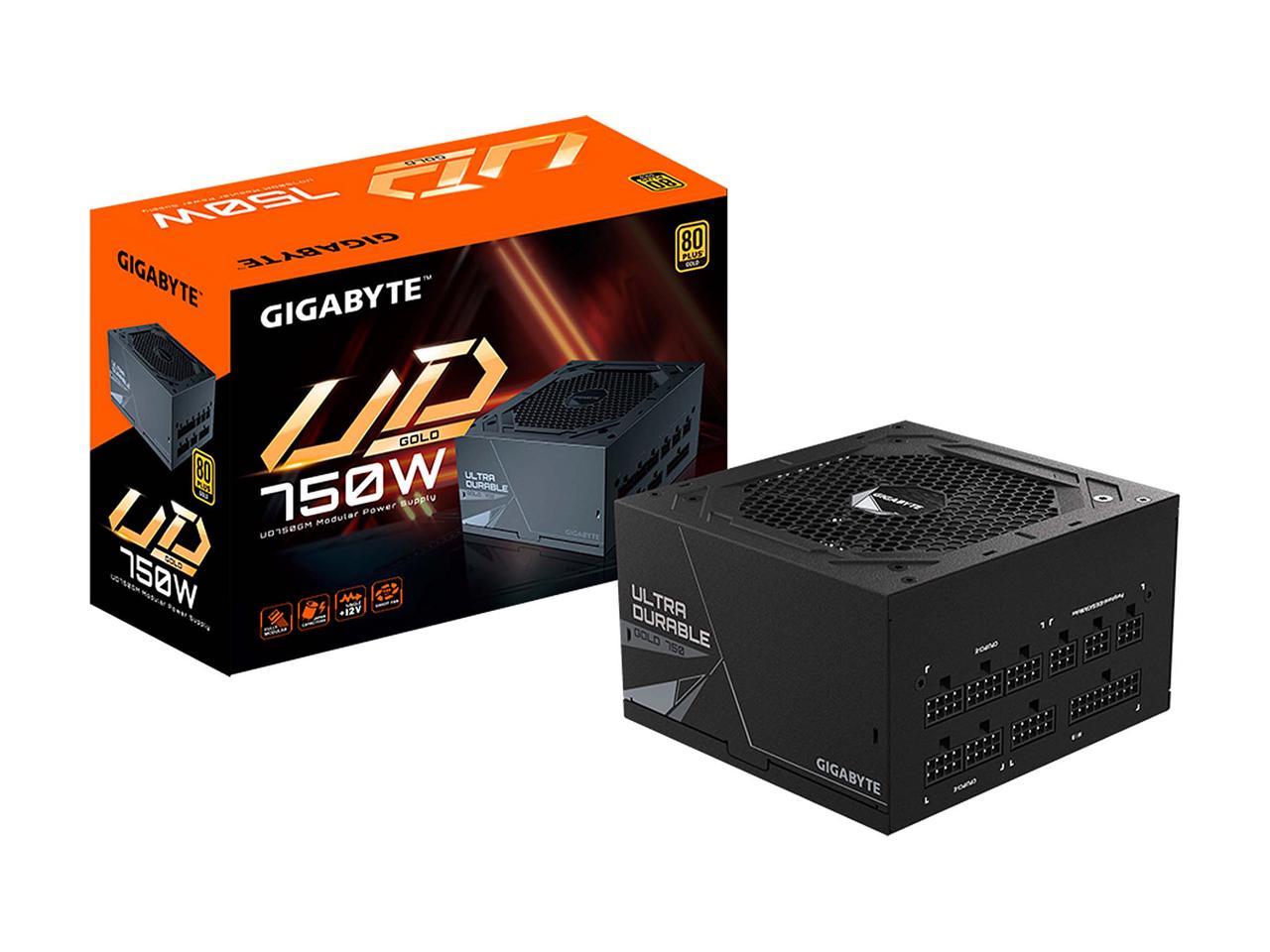

PSU 750W 80+ GOLD GIGABYTE UD750GM

Availability:

Ka stok
Lista Dëshirave
Krahëso

PSU 750W 80+ GOLD GIGABYTE UD750GM

  • ATX 12V v2.31
  • Full Modular
  • 80 PLUS GOLD Certified
  • 100 – 240 V 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V@61A, -12V@0.3A, +5VSB@3A

12,500 L 14,500 L

Ka stok

PSU 750W 80+ GOLD GIGABYTE UD750GM

  • ATX 12V v2.31
  • Full Modular
  • 80 PLUS GOLD Certified
  • 100 – 240 V 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V@61A, -12V@0.3A, +5VSB@3A
General
Brand GIGABYTE
Model GP-UD750GM
Details
Type ATX 12V v2.31
Maximum Power  750 W
Fans  120mm Hydraulic Bearing (HYB) fan
PFC  Active
Main Connector  20+4Pin
+12V Rails  Single
PCI-Express Connector  4 x 6+2-Pin
SATA Power Connector  8
Max PSU Length 140 mm
Modular  Full Modular
Power Good Signal 100-150ms
Hold-up Time >16ms
Efficiency  90% at typical load
Energy-Efficient 80 PLUS GOLD Certified
Protection OVP/OPP/SCP/UVP/OCP/OTP
Input Voltage 100 – 240 V
Input Frequency Range 50/60 Hz
Input Current 12-6A
Output +3.3V@20A, +5V@20A, +12V@61A, -12V@0.3A, +5VSB@3A
MTBF  >100,000 Hours
Approvals BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL/PSE
Connectors 1 x 24 pin (20+4) ATX
2 x 8 pin (4+4) EPS (CPU)
4 x 8 pin (6+2) PCIe
8 x SATA
3 x 4 pin Peripheral
1 x Floppy
Cable Spec 20+4Pin MB: One cable (610mm)
4+4Pin CPU: Two cables (600mm)
2 x PCI-E 6+2Pin: Two cables (600+150mm)
4 x SATA: Two cables (600+150+150+150mm)
3 x 4Pin Peripheral + 4Pin floppy: One cable (500+120+120+150mm)
Features
Features Ultra Durable
– Main Japanese capacitors
– Enhanced thermal solution
– 120mm smart hydraulic bearing (HYB) fan
– OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact design
Dimension & Weight
Dimensions 3.39″ x 5.91″ x 5.51″
