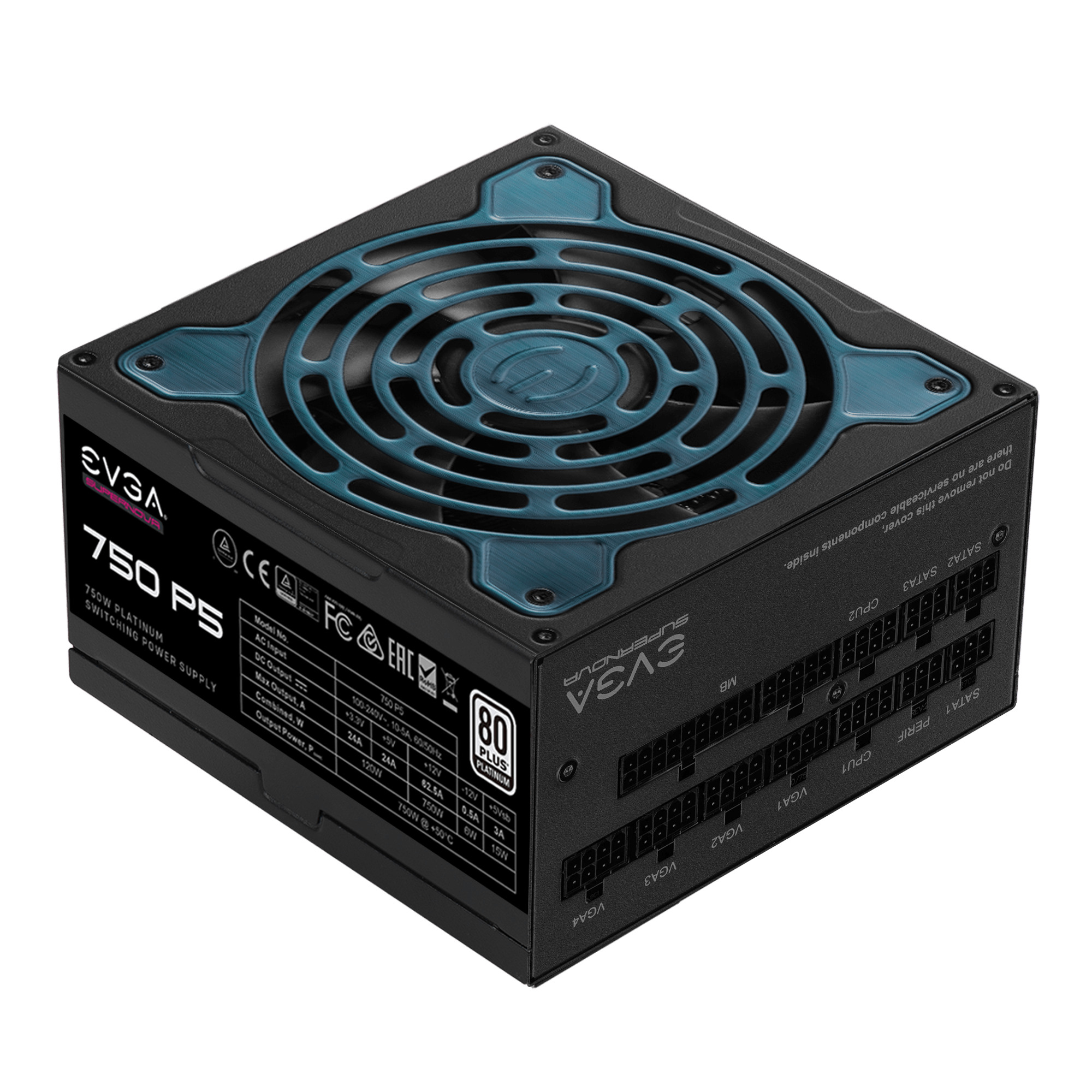

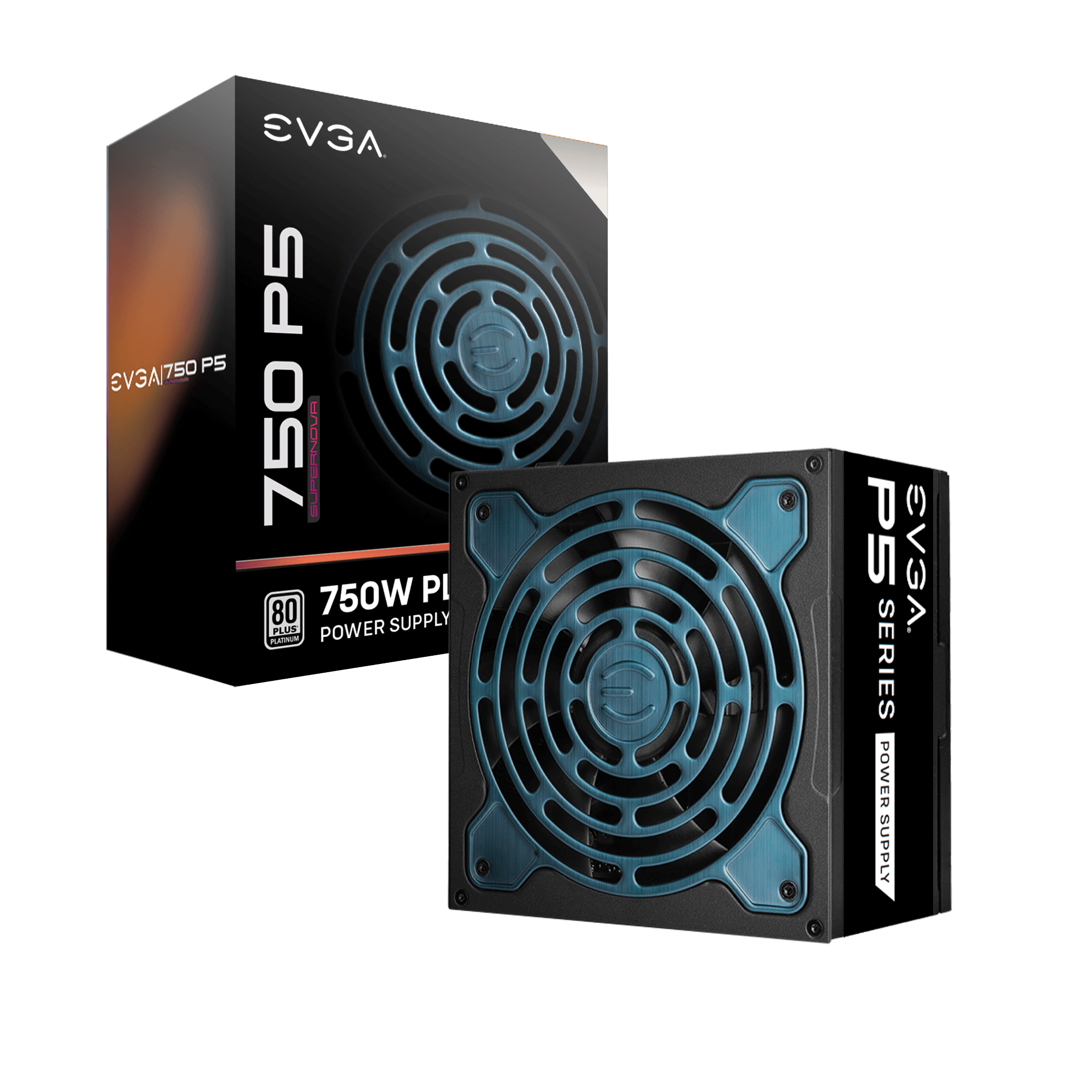

PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5
PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5 - Figura 2
PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5 - Figura 3
PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5 - Figura 4
,

PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5

Gjendja:

Ka stok

PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5

  • Fully Modular
  • NVIDIA SLI & AMD Crossfire Ready
  • 80 PLUS Platinum certified
  • Heavy-duty protections
  • Active Clamp +DC to DC
  • EVGA ECO Intelligent Thermal Control
  • Active Power Factor Correction
  • Fluid Dynamic Bearing Fan for ultra-quiet

19,000 L

Ka stok

PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5

  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 100% Japanese Capacitors ensure long-term reliability
  • Active Clamp +DC to DC design for efficient operation
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Active Power Factor Correction
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • DC-DC Converter improves 3.3V/5V stabilit

CABLE LENGTH

ATX Cable 1x 600mm
EPS Cable 2x 700mm
PCIe Cable 2x 700mm, 2x 700mm, 850mm
SATA Cable 3x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm
Floppy Adapter 1x 100mm
AC Power 1x 1500mm
Modular Cable Type Full

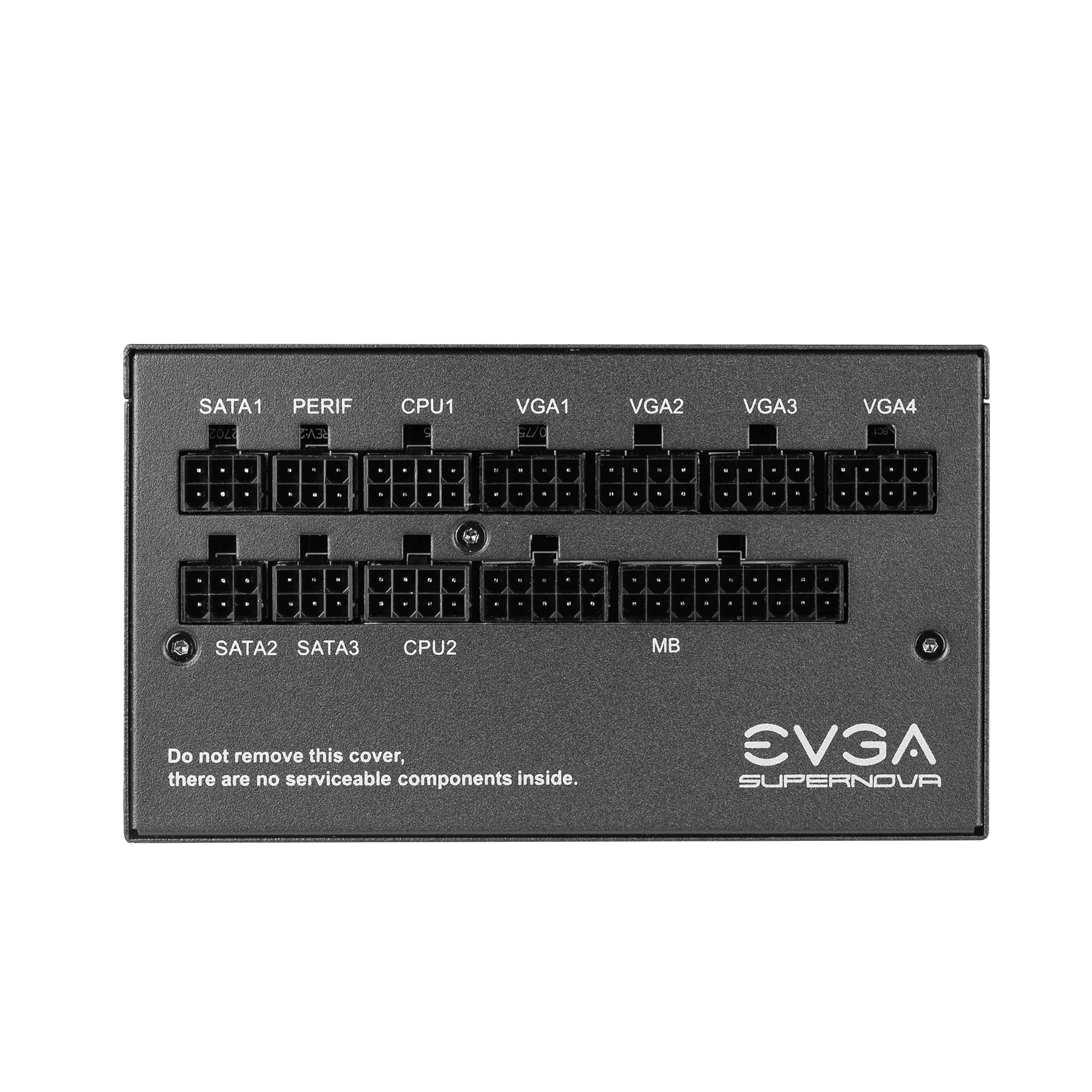

CONNECTOR QUANTITY

24 Pin ATX 1x 24pin
EPS (CPU) 2x 8pin (4+4)
PCIe 6x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 4x
Floppy 1x

POWER SPECS

AC Input 100-240V~, 10-5A, 60/50 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 24A 24A 62.5A 3A 0.5A
120W 750W 15W 6W
Total 750W

ADDITIONAL DETAILS

Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 6.50 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
