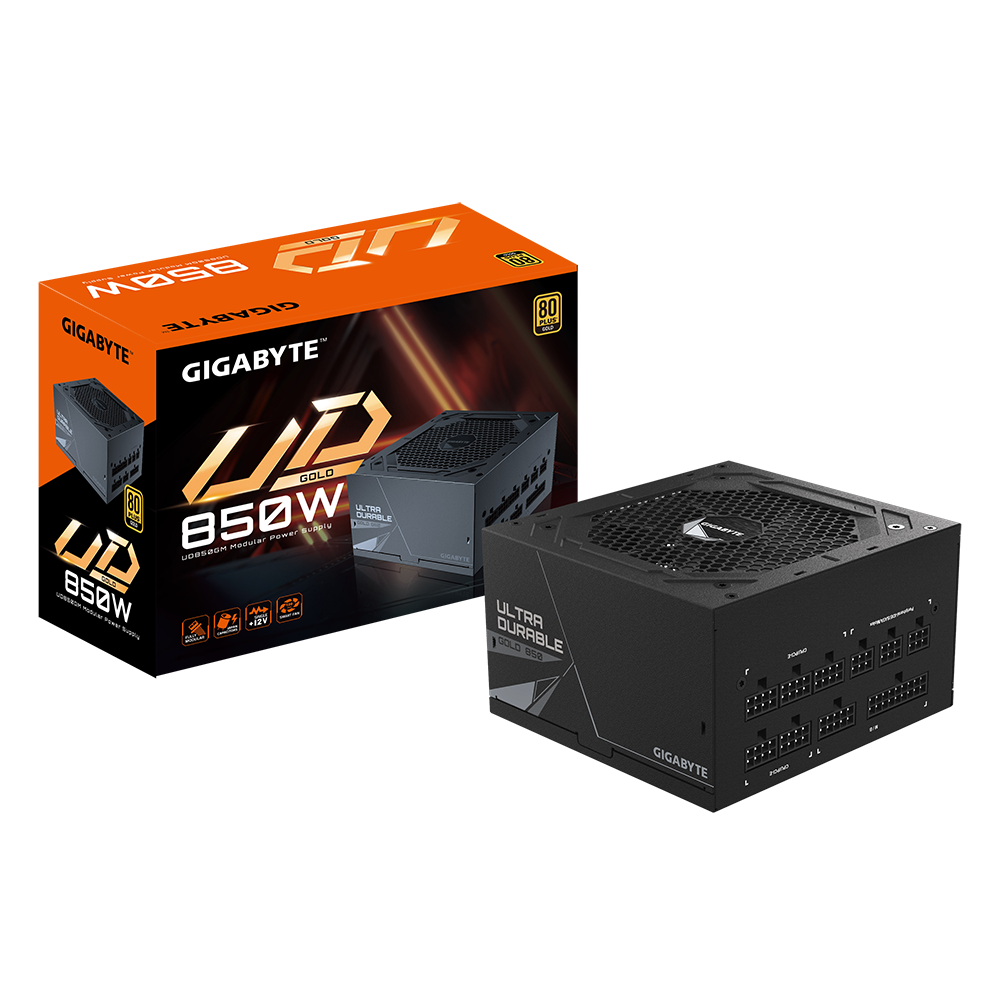

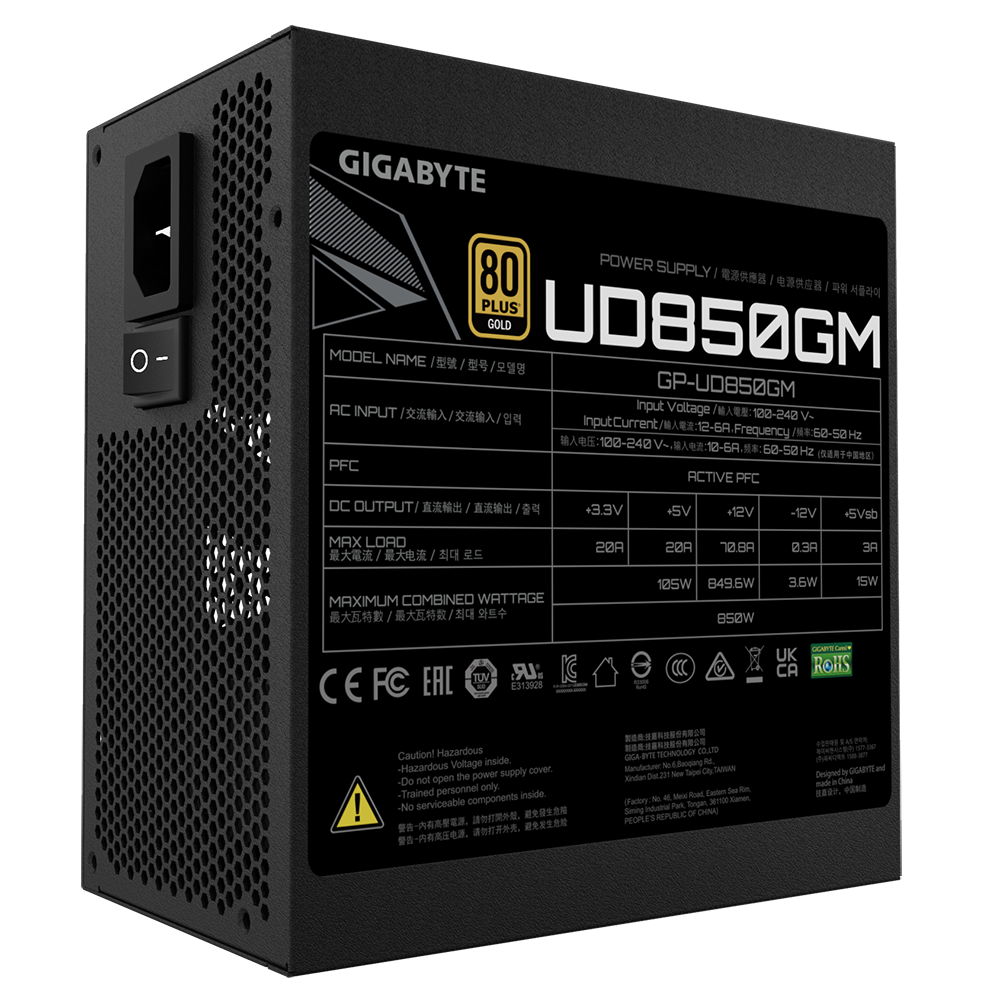

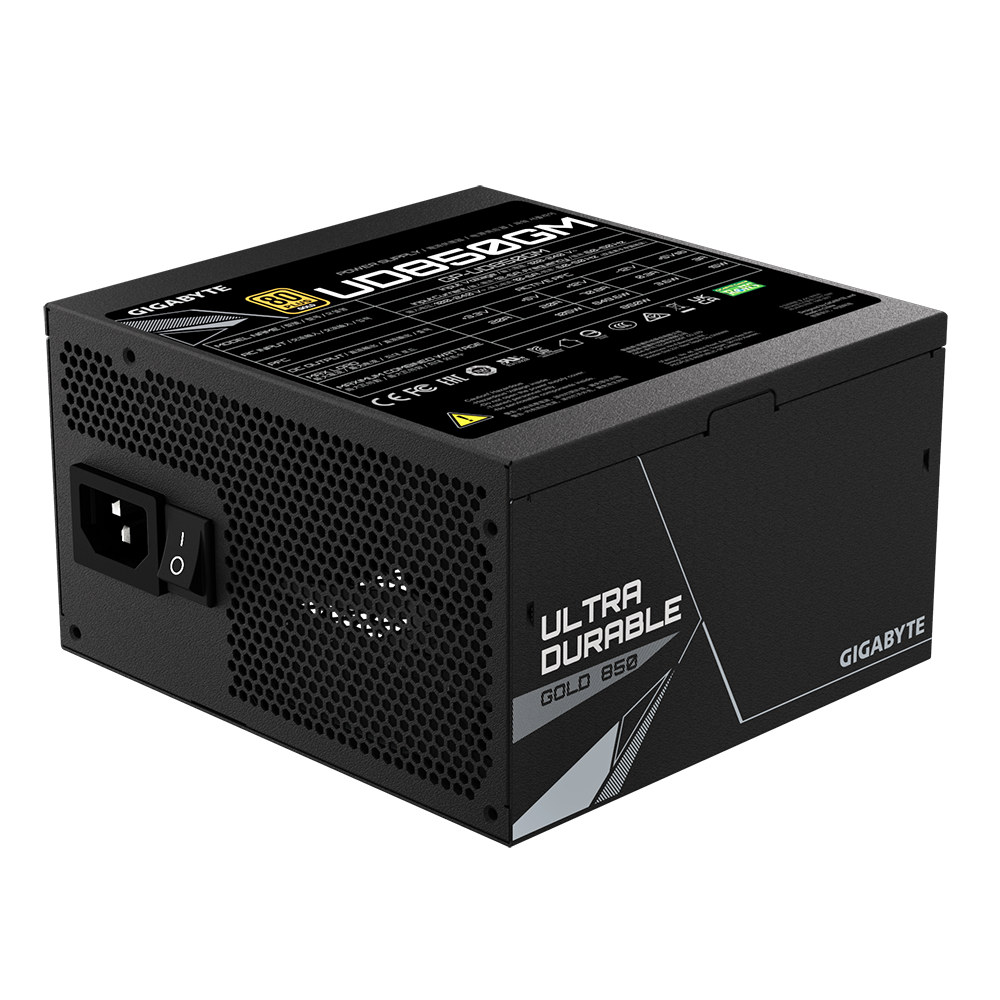

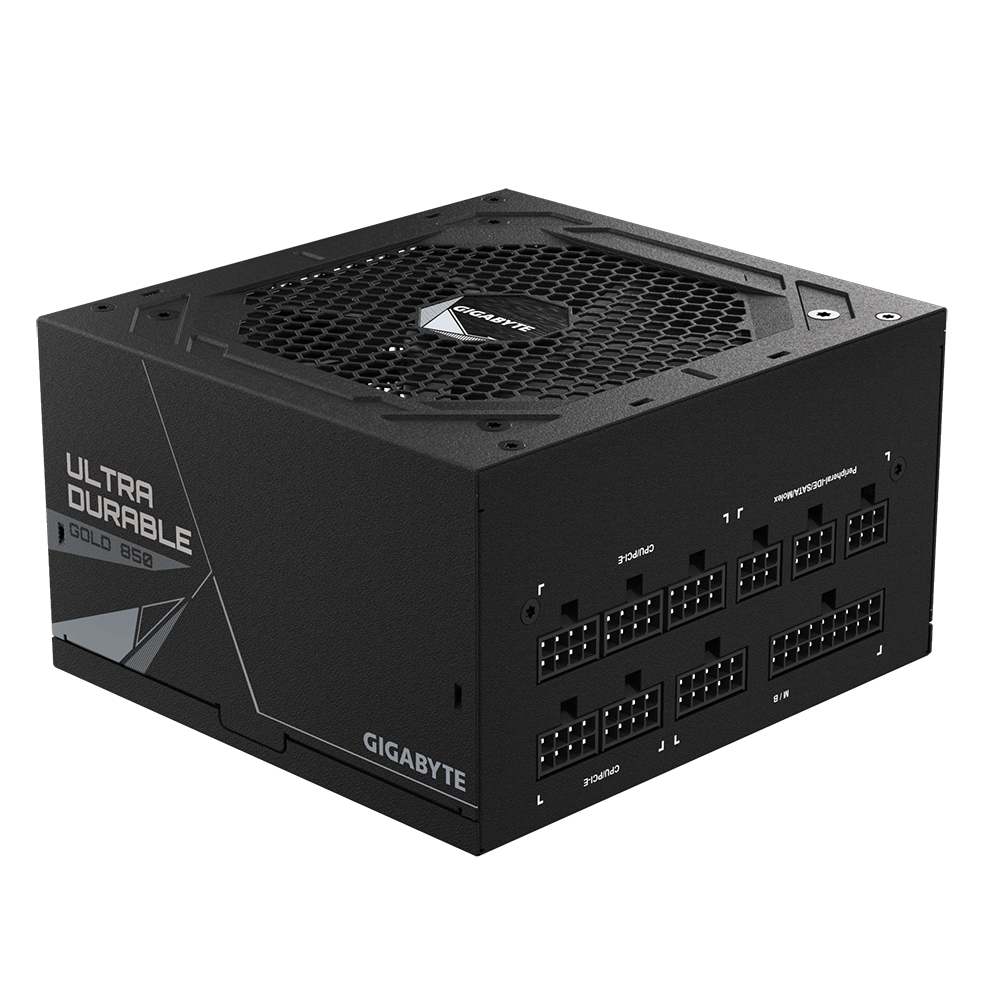

PSU 850W GIGABYTE UD850GM

PSU 850W GIGABYTE UD850GM

• Ultra Durable
  •  Main Japanese capacitors
  •  Enhanced thermal solution

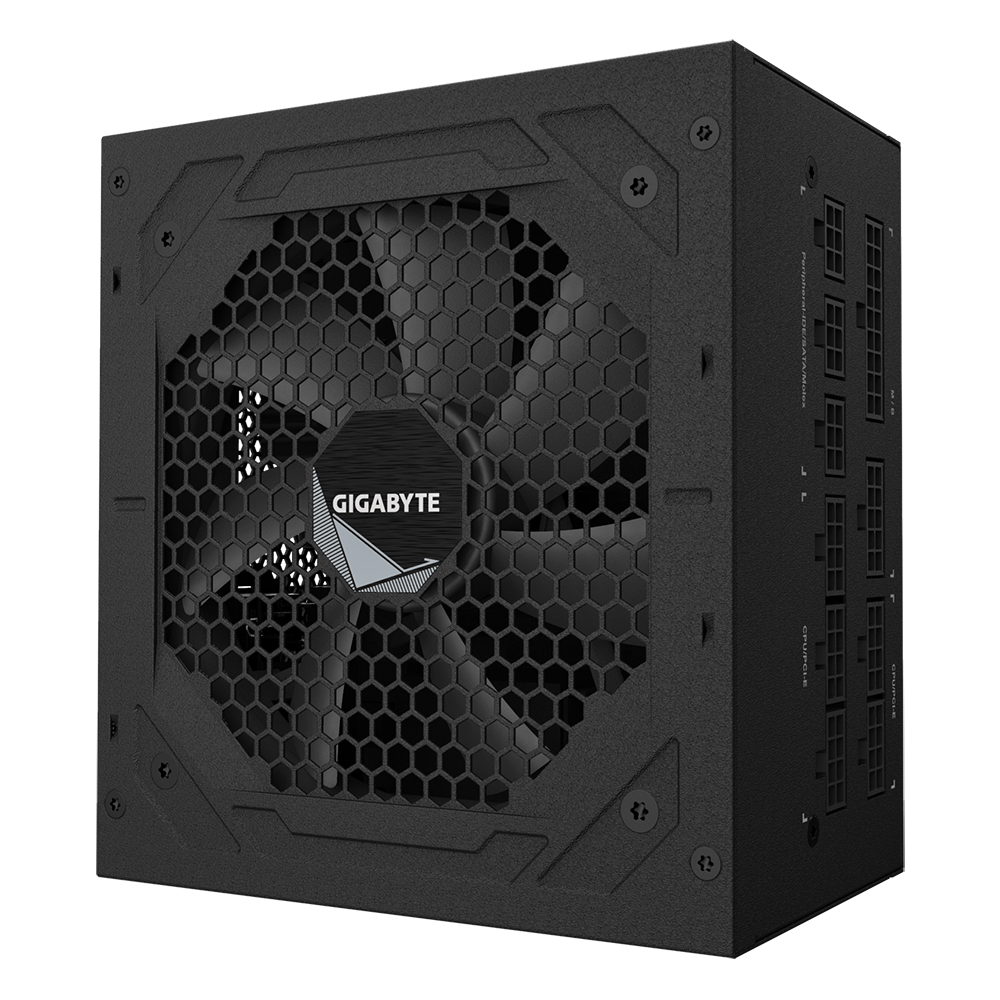

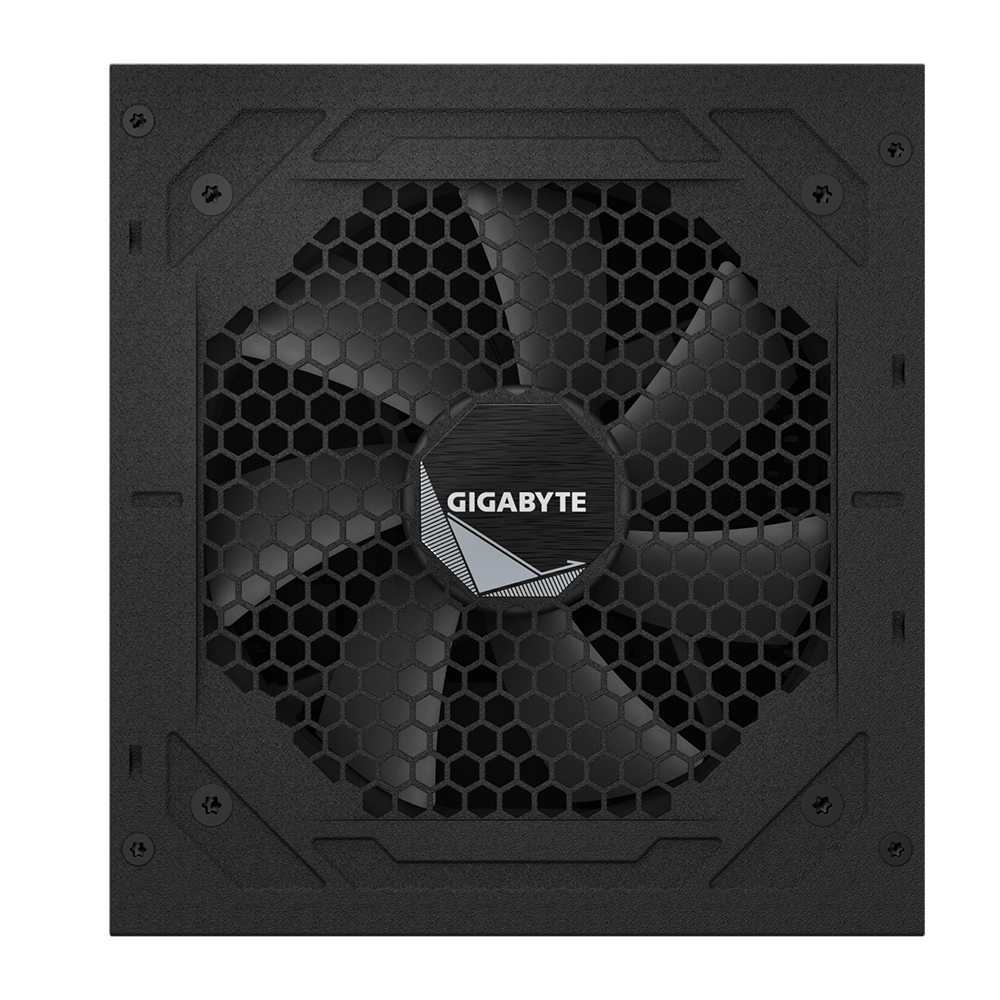

  •  120mm smart hydraulic bearing (HYB) fan
  •  OVP/OPP/SCP/UVP/OCP/OTP protection
• 80 PLUS Gold certified
• Fully modular design
• Powerful single +12V rail
• Compact design

SPECS

• Model
  GP-UD850GM
• Type
  Intel Form Factor ATX 12V v2.31
• PFC
  Active PFC (>0.9 typical)
• Input Voltage
  100-240 Vac (full range)
• Input Current
  12-6A
• Input Frequency
  60-50 Hz
• Output Capacity
  850W
• Dimension
  150 x 140 x 86 mm
• Fan Type
  120mm Hydraulic Bearing(HYB)fan
• 80 PLUS
  Gold
• Efficiency
  90% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-150ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black

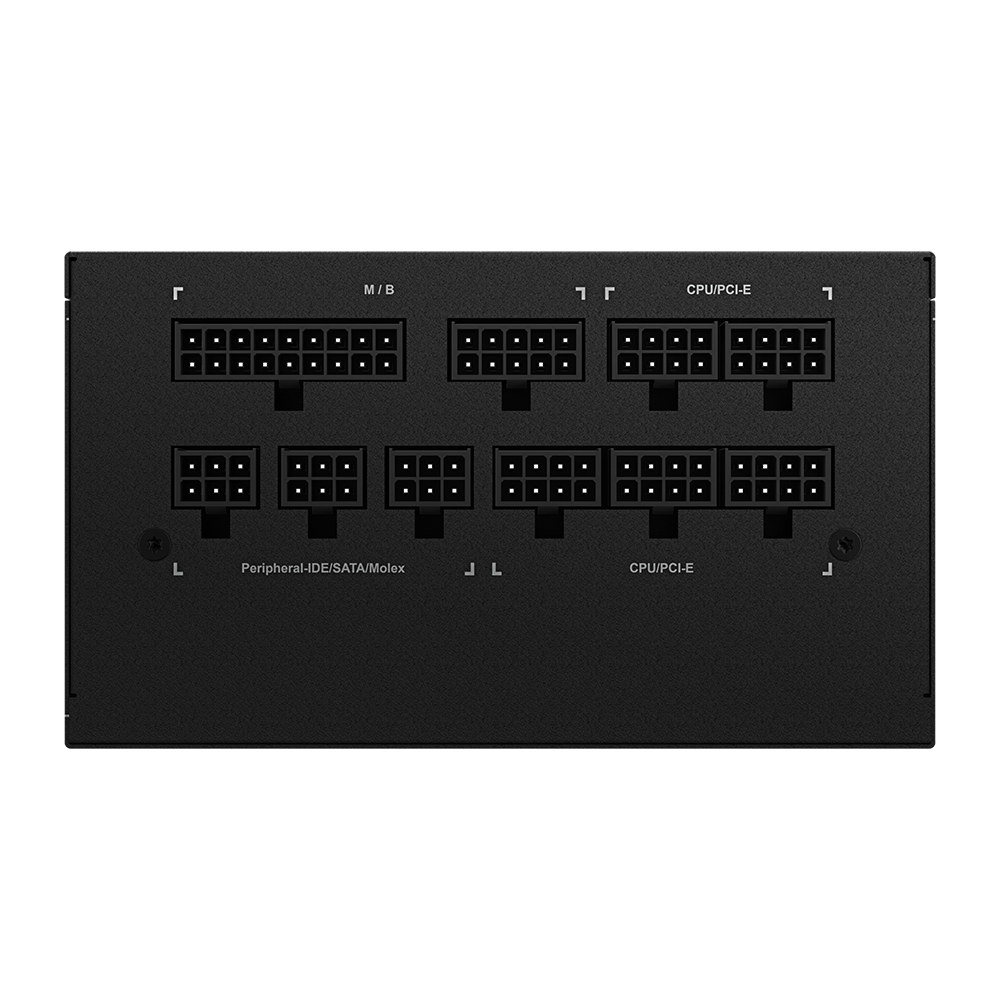

• Connectors
  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 :
  600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
