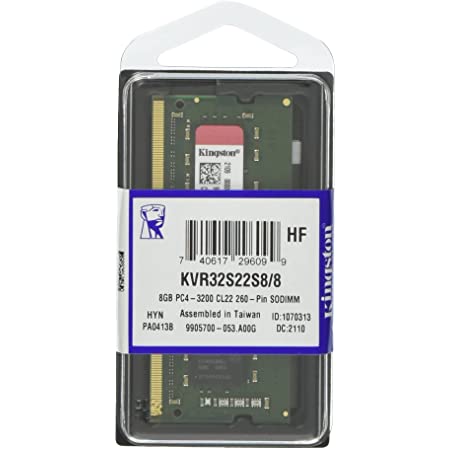

RAM LAPTOPI 8GB DDR4 3200MHZ KINGSTON

RAM LAPTOPI 8GB DDR4 3200MHZ

8GB DDR4 3200MHz Non-ECC Unbuffered SODIMM CL22 1Rx16 1.2V 260-pin 16Gbit

• Part Number: KVR32S22S6/8

DESCRIPTION SPECIFICATIONS
KVR32S22S6/8
8GB 1Rx16 1G x 64-Bit PC4-3200
CL22 260-Pin SODIMM

FEATURES
This document describes ValueRAM’s KVR32S22S6/8 as a 1G
x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous
DRAM), 1Rx16, memory module, based on four 1G x 16-bit
FBGA components. The SPD is programmed to JEDEC
standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This
260-pin SODIMM uses gold contact fingers. The electrical and
mechanical specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
22 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V – 0
0o C to +85o C
-55o C to +100o C
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
