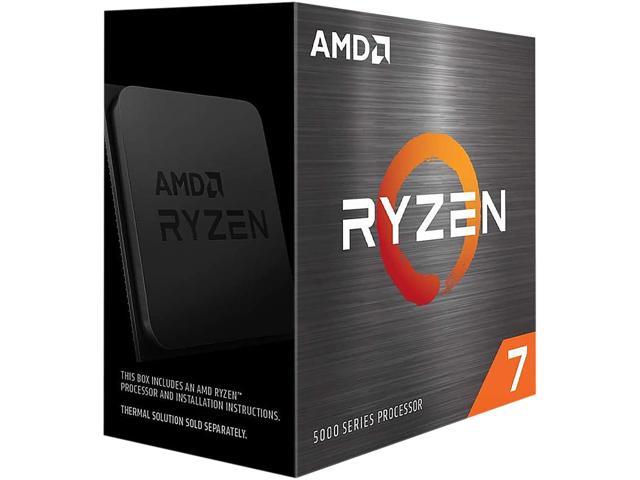

RYZEN 7 5700X CPU AMD
- Can deliver ultra-fast 100 plus FPS performance in the world’s most popular games, discrete graphics card required
- 8 Cores and 16 processing threads, based on AMD “Zen 3” architecture
- 4.6 GHz Max Boost, unlocked for overclocking, 36 MB cache, DDR4-3200 support
- For the advanced Socket AM4 platform, can support PCIe 4.0 on X570 and B550 motherboards
- Cooler not included
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.
AMD StoreMI Technology
AMD StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.
AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance.
AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
AMD 5700X Specs
General
CPU Model | AMD Ryzen 7 5700X |
CPU Socket | AM4 |
Manufacturing Process | 7 nm |
Maximum CPU Configuration | 1S |
Maximum Number of PCIe Lanes | 24 (Revision 4.0) |
Unlocked | Yes |
Performance
Number of Cores | 8 |
Number of Threads | 16 |
Base Clock Speed | 3.4 GHz |
Maximum Boost Speed | 4.6 GHz |
L3 Cache | 32 MB |
Memory Support
Memory Support | DDR4 Up to 3200 MHz |
ECC Memory | No |
Channel Architecture | Dual Channel |
Power
Thermal Design Power (TDP) | 65 W |
Included Thermal Solution | None |
Maximum Temperature | 194°F / 90°C |
Thermal Monitoring Technologies | Yes |
Technology
Performance Technologies | Precision Boost 2 |
Packaging Info
Package Weight | 0.26 lb |
Box Dimensions (LxWxH) | 5.3 x 5.3 x 3″ |
