SWITCH 8 PORT GIGABIT TP-LINK TL-SG1008D

SWITCH 8 PORT GIGABIT TP-LINK TL-SG1008D

8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves on power consumption
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design
Plug and play, no configuration required

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i
802.3u
802.3ab
802.3x
Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
No
External Power Supply
External Power Adapter
(Output: 9VDC / 0.6A)
Jumbo Frame
15 KB
Switching Capacity
16 Gbps
Dimensions ( W x D x H )
7.1 × 3.5 × 1.0 in.
(180 × 90 × 26 mm)
Max. Power Consumption
4.6W
Max Heat Dissipation
15.8 BTU/h
SOFTWARE FEATURES
Advanced Features
Green Technology, saving power up to 80%
802.3x Flow Control, Back Pressure
MAC Address Table
4K
Transmission Method
Store and Forward
OTHERS
Certification
FCC, RoHs
Package Content

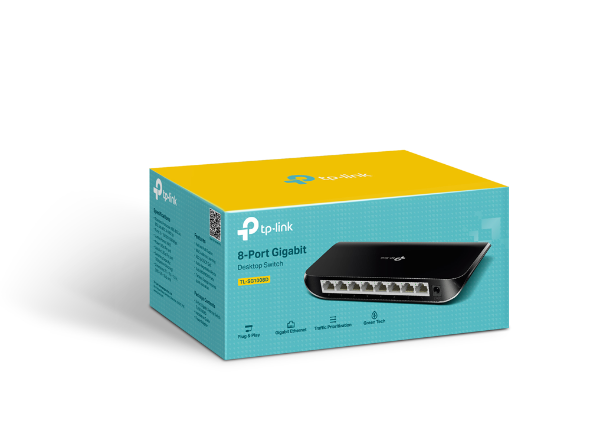

8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter
Installation Guide
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
