UPS, UPS & Inverter

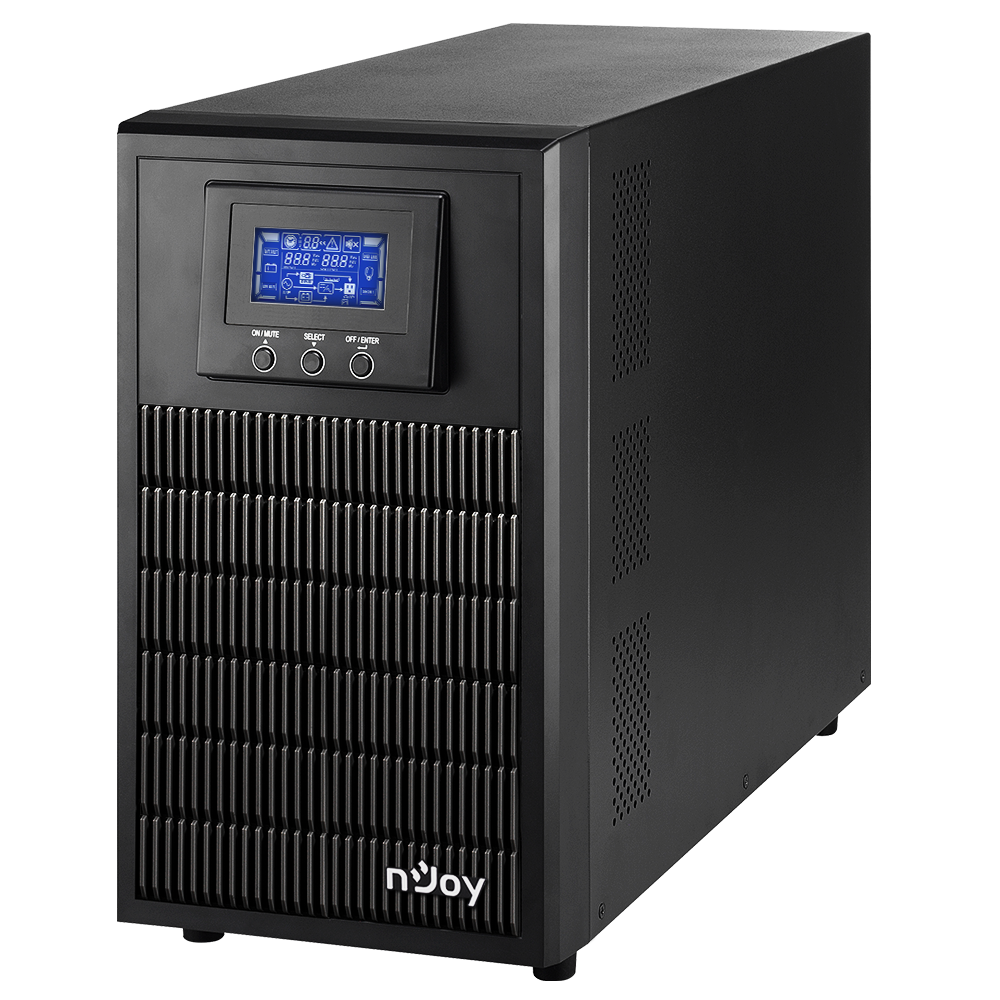

UPS 3000VA 2700W NJOY ATEN PRO 3000
Gjendja:
S’ka stok
UPS 3000VA 2700W NJOY ATEN PRO 3000
Pure Sine Wave Output
Zero Transfer Time
ECO Mode for Energy Saving
55,000 L 59,000 L
S’ka stok
UPS 3000VA 2700W NJOY ATEN PRO 3000
Product specs
EAN6422956007737
PNPWUP-OL300AP-AZ01B
Phase Single Phase
Technology On-line (VFI)
Typology Tower
Output waveform Pure Sine Wave
Output Power Factor0.9
Power3KVA / 2.7KW
Input Nominal Voltage230V
Input Voltage Range120-300 VAC (Based on load at 50%)
180-280 VAC (Based on load at 100%)
Input Nominal Frequency50 Hz / 60 Hz
Output Nominal Voltage200/208/220/230/240 VAC*
Output Voltage Precision±1%
Outlets4 x Schuko Battery Backup & Surge Protection
Efficiencyup to 95%*
Batteries PresenceInternal Only
Batteries Installed
UPS 3000VA 2700W NJOY ATEN PRO 3000
6 x CSB HR1234W
*for replacement please check accesories tab
UPS 3000VA
LCD DisplayYes
Communication PortsRS232USBSNMP
Noise Level<50dB
Features
Auto-Restart while AC is recovering
Cold start
Internal bypass
Microprocessor control optimizes reliability
Converter mode available
Input power factor correction
Typical Backup Time10 minutes @ 50% load (1350W)
Parallel operation Not Supported
Generator Compatible Yes
Dimensions (L x W x H)421 x 190 x 318 mm
Weight27.6 kgs
Remarks* For detailed specs please check product
OPTIONAL
WiFi Smart Card WP
CERTIFICATE
Tested with the listed standards, the above mentioned product was found in compliance
with 2004/108/EC EMC Directive and with 2006/95/EC LVD Directive.
with 2004/108/EC EMC Directive and with 2006/95/EC LVD Directive.
EN 62040 – 2: 2006
IEC 61000 – 4 – 2: 2001
IEC 61000 – 4 – 3: 2002
IEC 6100 – 4 – 4: 2004
IEC 6100 – 4 – 5: 2005
IEC 6100 – 2 – 2: 2002
EN 62040 – 1 – 1: 2003
IEC 60950 – 1: 2001
IEC 61000 – 4 – 2: 2001
IEC 61000 – 4 – 3: 2002
IEC 6100 – 4 – 4: 2004
IEC 6100 – 4 – 5: 2005
IEC 6100 – 2 – 2: 2002
EN 62040 – 1 – 1: 2003
IEC 60950 – 1: 2001
And in conformity with
(RoHS conformity marking) in accordance with European Directive 2011/65/EU
(RoHS conformity marking) in accordance with European Directive 2011/65/EU
LINKS
https://www.njoy.global/product/aten-pro-3000
DATASHEET https://cdn.njoy.global/hive_files/wp/products/1615992440j1FPkd.pdf
USERMANUAL https://cdn.njoy.global/hive_files/wp/products/16375662174Gr88d.pdf
