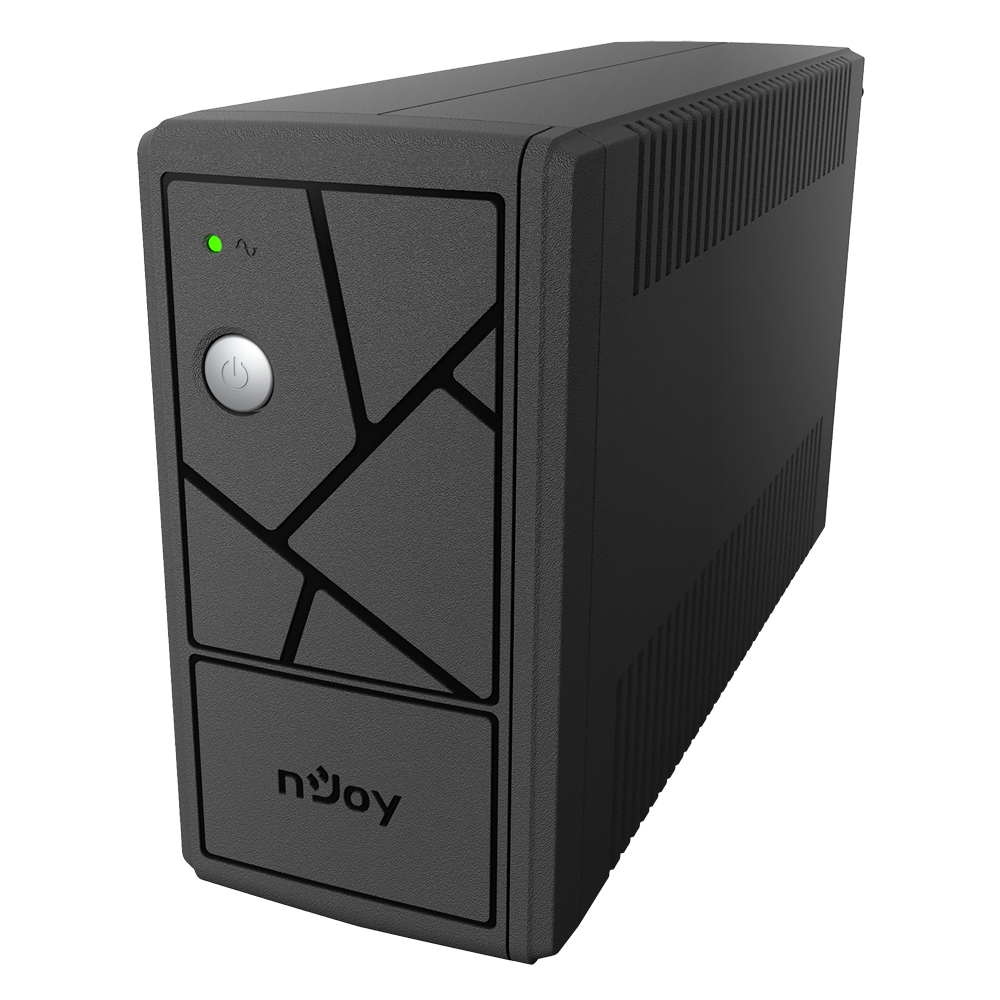

UPS 600VA 360W nJoy KEEN USB

UPS 600VA 360W nJoy KEEN USB

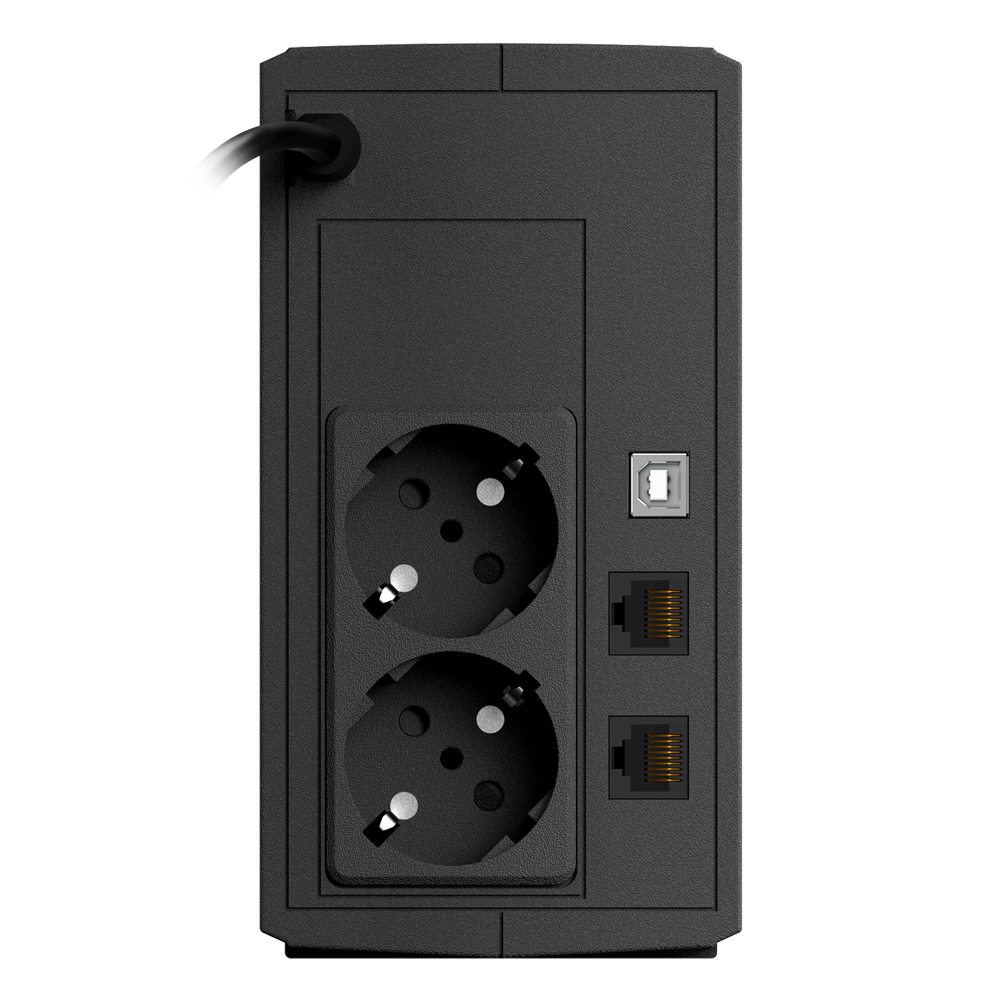

USB communication port & RJ11/45 port
2 x Schuko outlets
Automatic Voltage Regulation

Management via Usb

Keen 600 USB

• Simulated sinewave
• Auto-Restart while AC is recovering
• Auto-Charge
• Automatic Voltage Regulation (AVR)
• Off-Mode Charging
• Cold start function

Specifications
PN: UPLI-LI060KU-CG01B  EAN: 6422956009540
Capacity 600 VA / 360 W
Type Line-Interactive
Input Nominal Voltage 230 VAC
Accepted Voltage Range 162 ~ 290 VAC
Frequency Range 50Hz / 60Hz (Auto Sensing)
Output Nominal Voltage 230 VAC
Accepted Voltage Range 207~253 VAC
Frequency Range(Batt. Mode) 50 Hz / 60Hz ± 1%
Power Factor 0.6 @ nominal voltage (100% load)
Waveform (Batt. Mode) Simulated Sinewave
Transfer Time Typical 4 ms
Overload Protection Circuit breaker
Line mode overload >(110%±10)% fault after alarm 1min
>(120%±10)% fault immediately
Battery mode overload >(110%±10)% fault after alarm 1min
>(120%±10)% fault immediately
Indicators type LED & Alarm Load Capacity, Load & Battery level, AC mode, Battery mode, Fault indicators
Protection Outlets type 2 x Schuko Battery Backup 2 x RJ11/45 (IN/OUT) for modem/ phone/LAN surge protection
Full protection Overload, Short Circuit, Over discharge and Over charge
Environement Noise level Less than 40dB Humidity 0-90 % (non-condensing) Temperature 0-40ºC

Software Management

Keen Series can be managed with the dedicated software management, a helpful tool to monitor and control unfavorable power events and UPS notifications. The software allows personalization, from notifications, time scheduling to runtime configuration.

KEEN SERIES UPS 600VA

THE POWER TO CONTROL

Keen UPS Series has “the power to control” and ensure the needed backup for all household devices. This essential UPS solution is designed to protect your consumers and home office establishments from surges, spikes and other power anomalies that lurk from the grid.

Tested with the listed standards, the above mentioned product was found in compliance
with 2015/863 Directive, 2014/30/EC EMC Directive and with 2014/35/EC LVD Directive.
Model name: Keen UPS 600VA
Part Number: UPLI-LI060KE-CG01B

In conformity with (RoHS conformity marking) in accordance with European Directive 2011/65/EU. (EC conformity marking)
EN 50581: 2012
EN 62321: 2009
EN 62040 – 2: 2006
EN 61000 – 3 – 2: 2014
EN 61000 – 3 – 3: 2013
EN 61000 – 4 – 2: 2009
EN 61000 – 4 – 3: 2006
+A 1: 2008 + A2 : 2010
EN 61000 – 4 – 4: 2012
EN 61000 – 4 – 5: 2014
EN 61000 – 4 – 6: 2014
EN 61000 – 4 – 8: 2010
EN 61000 – 4 – 11: 2004
EN 61000 – 2 – 2: 2002
IEC 62040 – 1 : 2008 (First Edition) + A
