PRINTER TERMIK RONGTA RP325 ME USB + LAN + COM

Availability:

Ka stok
Lista Dëshirave
Krahëso

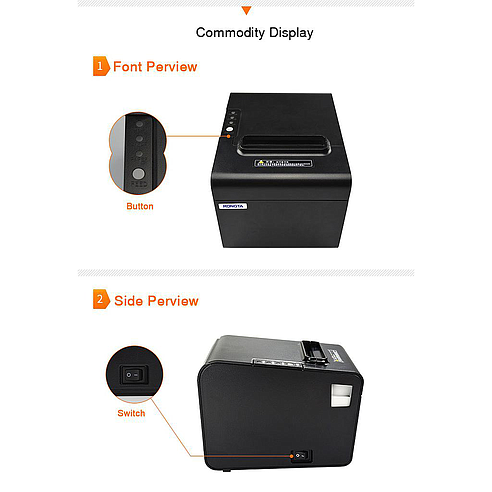

PRINTER TERMIK I RI
RONGTA RP325 USB+LAN+COM
300mm/s high speed printing
Lidhje me USB, Serial, Ethernet
80mm gjeresi letre.

6,000 L 8,000 L

Ka stok

PRINTER TERMIK I RI
RONGTA RP325 USB+LAN+COM
300mm/s high speed printing
Lidhje me USB, Serial, Ethernet
80mm gjeresi letre.

Printer Connection of RP325 80mm Thermal Receipt Printer
1. Contents in the package
Please check the parts when opening the box, if there is something missed, please contact with the supplier or the manufacturer.

80mm Thermal Receipt Printer

2. Printer Connection
(1) To ensure the printer and PC is powered off and then insert the matched data connection lines to the interfaces (USB/Parallel/Serial) of the printer, the other ends are to the PC.
(2) If the user fit out the electric opened cash drawer for the printer that could insert the RJ-11 connection line of it to the corresponding interface of the printer. (PS: The specification of cash drawer should be accorded with the driver requirement of printer).

(3) Connect to the supplied power adapter. Please only use the supplied power adapter. Such as the following picture：

Thermal Receipt Printer Connection

Notice:
(1) Firstly, insert the power supply plug DC24V of printer; then connect the AC220V power; lastly, turn on the switch. Please operate it by the instruction steps; otherwise, it would damage the printer.
(2) Using unsuitable power adapter would cause the bad print result; even may cause the breakdown of printer.
(3) Do not connect the telephone line to the interface of cash drawer; because it may result in the damage for printer and telephone.

(4) Do not pull the power soft wire when unplugging. If the user does it by force, it may result in the breakdown of the printer and power adapter.
