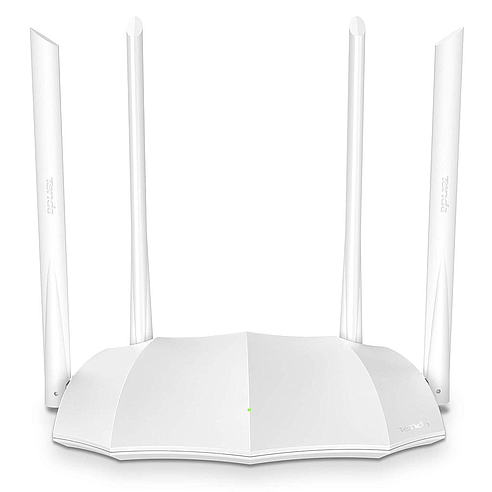

WIRLESS ROUTER – TENDA AC1200 MODEL AC5 WHITE

Mi Router 4C
Hardware
configuration
Processor
MT7628DA

Internal memory
64MB DDR2

2.4Ghz
Integrated LNA and PA

5GHz
Not supported

Heat dissipation
Natural heat dissipation

Operating humidity:
10%–90% RH (no condensation)

Storage humidity:
5%–90% RH (no condensation)

Protocol standards
IEEE 802.11b/g/n
IEEE 802.3/3u

ROM
16MB NorFlash

2.4GHz Wi-Fi
2×2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)

5GHz Wi-Fi
Not supported

Antennas
4x external single band antennas

Operating temperature:
0–40°C

Storage temperature:
-40–70°C

Certification standards
GB9254-2008
YD/T993-1998
GB4943.1-2011

Hardware interface
Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)
One system factory settings reset button
One orange/blue/purple system status light; one blue external network interface status light
One 10/100M self-adaptive WAN port (Auto MDI/MDIX)
One power input interface

Wireless specifications
Singal band
2.4GHz

Modulation
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15

Reception sensitivity
11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm

Software specifications
Operating system
Mi WiFi ROM intelligent router operating system based on a highly customized version of
OpenWRT that supports web, Android, and iOS router management software

Wireless security
WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding

Management application
Supports web, iOS, and Android
